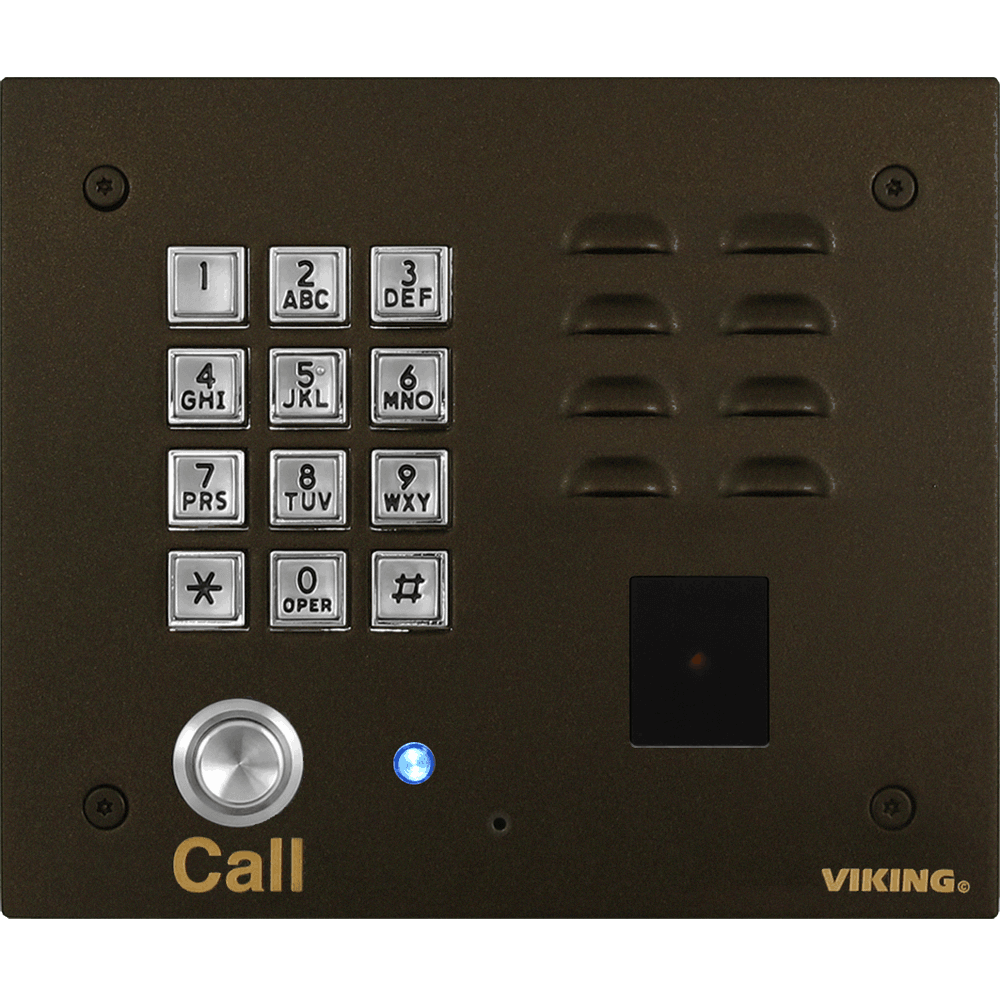

Viking K-1770-3-BN-EWP Bronze Vandal Resistant Enhanced Weather Protection Entry Phone With Keypad And Proximity Reader

Viking K-1770-3-BN-EWP Bronze Vandal Resistant Enhanced Weather Protection Entry Phone With Keypad And Proximity Reader


SKU: K-1770-3-BN-EWP

The K-1770-3-BN-EWP is a tough and attractive speaker phone designed to provide two-way audio communication and proximity entry, ideal for apartment and residential door entry applications. The speaker phone features a built-in 125 KHz proximity card reader, microphone and speaker volume controls, selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed. The card reader outputs industry-standard 26-bit Wiegand data, allowing it to be used with a Viking ES-1 door controller or any 26-bit Wiegand compatible controller.

When the “Call” button is pressed, the K-1770-3-BN-EWP returns dial tone, and the keypad may then be used to dial any number. If no touch tone is entered within 8 seconds, CPC is detected, a busy signal is detected, or the programmable maximum call time has elapsed, the K-1770-3-BN-EWP will automatically disconnect. Alternatively, the speaker phone may be disconnected by pressing the “Call” button again.

The K-1770-3-BN-EWP entry phone is designed to be flush-mounted using the included rough-in box. Surface mount options are also available using one of Viking’s VE-6X7 Series of Surface Mount Boxes.

The K-1770-3-BN-EWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming.

View full details
Viking K-1770-3-BN-EWP Features

  • Built-in 125KHz 26-bit Wiegand proximity card reader with LED, beep card read confirmation, and EWP board protection
  • Compatible with the following Viking Proximity Cards and Fobs: PRX-C, PRX-C-ISO and PRX-FOB
  • Vandal Resistant Features:
    • 14 gauge louvered 316 stainless steel faceplate with scratch resistant powder coating
    • Stainless steel “Call” button
    • Heavy duty metal keypad
    • T-10 Torx security mounting screws
  • Weather Resistant Features:
    • Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating
    • Marine grade 316 stainless steel faceplate, screws and push button switch
    • Switch internally sealed per IP67
    • Mylar speaker
    • Self-draining mic mount
    • Faceplate, mic and speaker gaskets
  • Blue “in use” LED
  • Telephone line powered
  • Volume adjustments for microphone and speaker
  • Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder tone, maximum call time out and 40 second silence time out
  • Selectable auto-answer feature for monitoring
  • Selectable push button disconnect
  • Zinc plated steel rough-in box with (2) 3/4” conduit knockouts
  • Optional VE-6X7 Surface Mount Box available
  • Optional VE-LIGHT to illuminate the front panel at night


  • Apartment entry phone when used with the K-1900-3 Apartment Entry Dialer or C-4000 Apartment/Office Entry Controller or C-3000 Apartment Entry Controller
  • Use with a Viking C-500 to control 1 or 2 (expandable to 8) speaker phones and door/gate control on a single phone line
  • Use with a Viking C-2000B to control 1 to 4 speaker phones and door/gate control on a single phone line
  • Courtesy and customer assistance phone
  • Automated teller (ATM) phone
  • Use with a Viking ES-1 for proximity card reader door control
  • Provide unique front and back door chimes and paging when use with a Viking SLP-1 or SLP-4 and C-2000B
  • Kiosk phone with (100 number speed dialing) when used with the K-1900-9 Multi-Number Dialer
  • Use with Viking’s Proximity Cards: PRX-C, PRX-C-ISO or PRX-FOB



Entry Phone Power Telephone line powered 20V DC/20mA minimum
Proximity Card Reader Power 5 to 14V DC @ 60mA maximum
Overall Dimensions 5.5” x 6.5” x 2.6” (140mm x 165mm x 66mm)
Rough-in Box Dimensions 4.5” x 5.5” x 2.5” (114mm x 140mm x 64mm)
Shipping Weight 3.5 lbs (1.6 kg)
Environmental -30°F to 150°F (-34°C to 65°C)
Humidity 5% to 95% non-condensing
Speaker Volume Approximately 70 db maximum @1m
CPC Disconnect Time 500ms minimum
REN # 0.5 A
