Viking Electronics

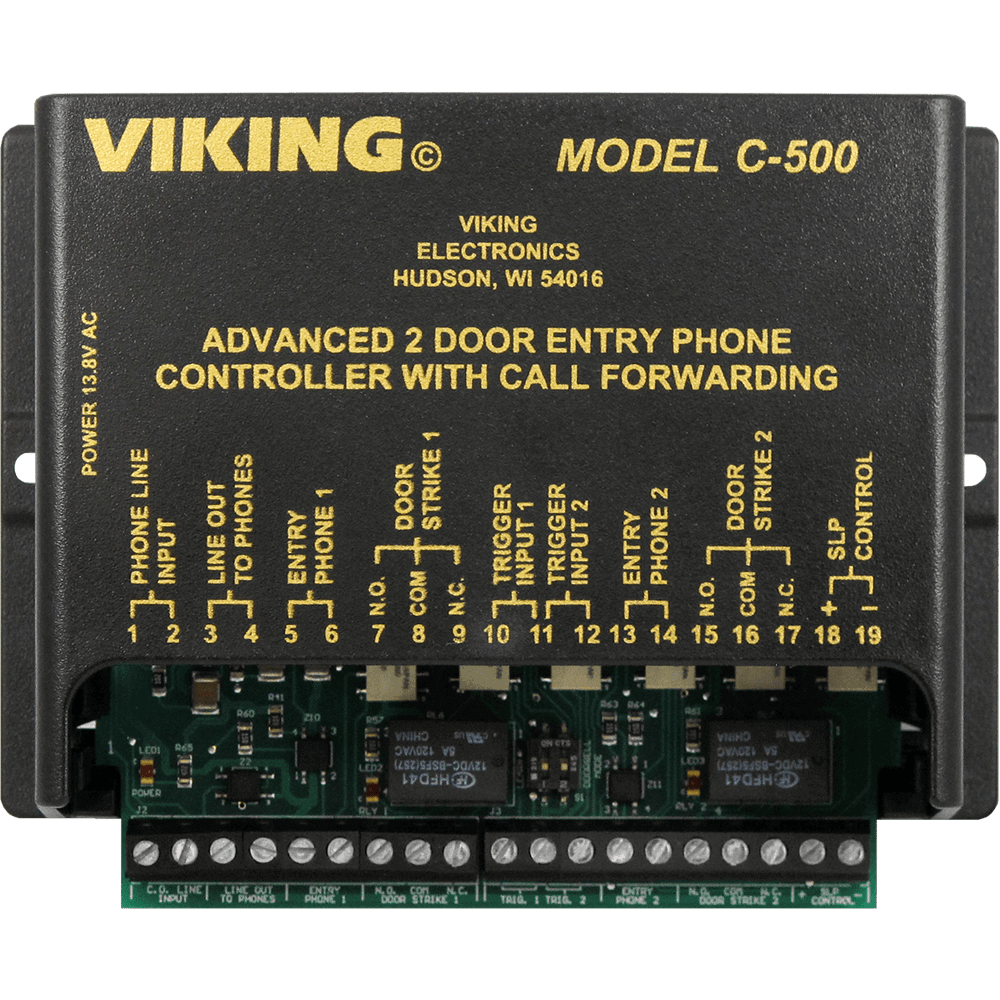

Viking C-500 Two Door Entry Phone Controller with Call Forwarding and Door Strike Controls

Viking C-500 Two Door Entry Phone Controller with Call Forwarding and Door Strike Controls

$316.40

SKU: C-500

View full details

C-500 Features:

  • Allows single line telephones or a telephone system to share a phone line with two Viking entry phones
  • Double and triple distinctive ringing, programmable entry phone Caller ID or beep tones allow you to distinguish front and back door entry calls from CO calls
  • Stackable - connect up to four C-500’s to control up to eight entry points
  • Built in five number dialer (if inside phone doesn’t answer), detects busy or ring no answer and goes on to the next number
  • Provide entry phone activated chimes and whole house paging when used with an SLP-1 or SLP-4
  • Analog Station Dial Through Mode allows entry phones to connect to analog PABX station or telephone line
  • Two N.O./N.C. 5A door strike relays with 1 or 2 digit activation commands
  • Monitor any entry phone by entering a touch tone
  • Up to 6 different keyless entry codes, and two “one time use” keyless entry codes per entrance
  • Auto answer for remote programming
  • Two trigger inputs for Request to Exit (REX), immediate call forwarding or lighted doorbell
  • switches to activate entry phone calls
  • Produces “Call Waiting” tones if the entry phone is activated when the house phones are on a call
  • Viking C-500 Two Door Entry Phone Controller with Call Forwarding and Door Strike Controls
  • Manufacturer Warranty: 2 Year Limited Warranty

Compatible with the Following:

  • Viking Entry Phones:
  • Viking Phones:

    • K-1500-7
    • K-1700-3
    • K-1705-3
    • K-1900-8
    • Any analog touch tone phone
  • Viking Single Line Paging Controller:

    • SLP-1
    • SLP-4
    • Viking C-500 Applications:

      • Add one or two (expandable to 8) entry phones to your standard home or office phones to provide:
        • Door communication
        • Gate Entry
        • Door entry
        • Keyless Entry
      • Provide commercial or residential security via two-way handsfree communication at the door and gate
      • Connects in series with a single phone line, phone system analog station port or unused line input (loop start trunk input)
      • High security building entry systems
      • Door strikes and gates in conjunction with entry phones or hot-line / panel phones
      • Viking C-500 Specifications:

        • Power: 120VAC / 13.8VAC 1.25A UL listed adapter provided
        • Dimensions: 5.25″ x 4.1″ x 1.75″ (133mm x 104mm x 44mm)
        • Shipping Weight: 2 lbs (0.9 kg)
        • Operating Temperature: 32°F to 90°F (0°C to 32°C)
        • Humidity: 5% to 95% non-condensing
        • SPDT Relay Contact Rating: 5A @ 30VDC / 5A @ 125VAC, 300VAC maximum
        • Ring Output: 5 REN, capable of ringing (10) 0.5 REN phones
        • Talk Battery: 44VDC
        • Connections: (19) cage clamp screw terminals
