Viking E-40-SS Single Gang Entry Phone, Stainless Steel Finish
Viking E-40-SS Single Gang Entry Phone, Stainless Steel Finish
$205.95
SKU: E-40-SS

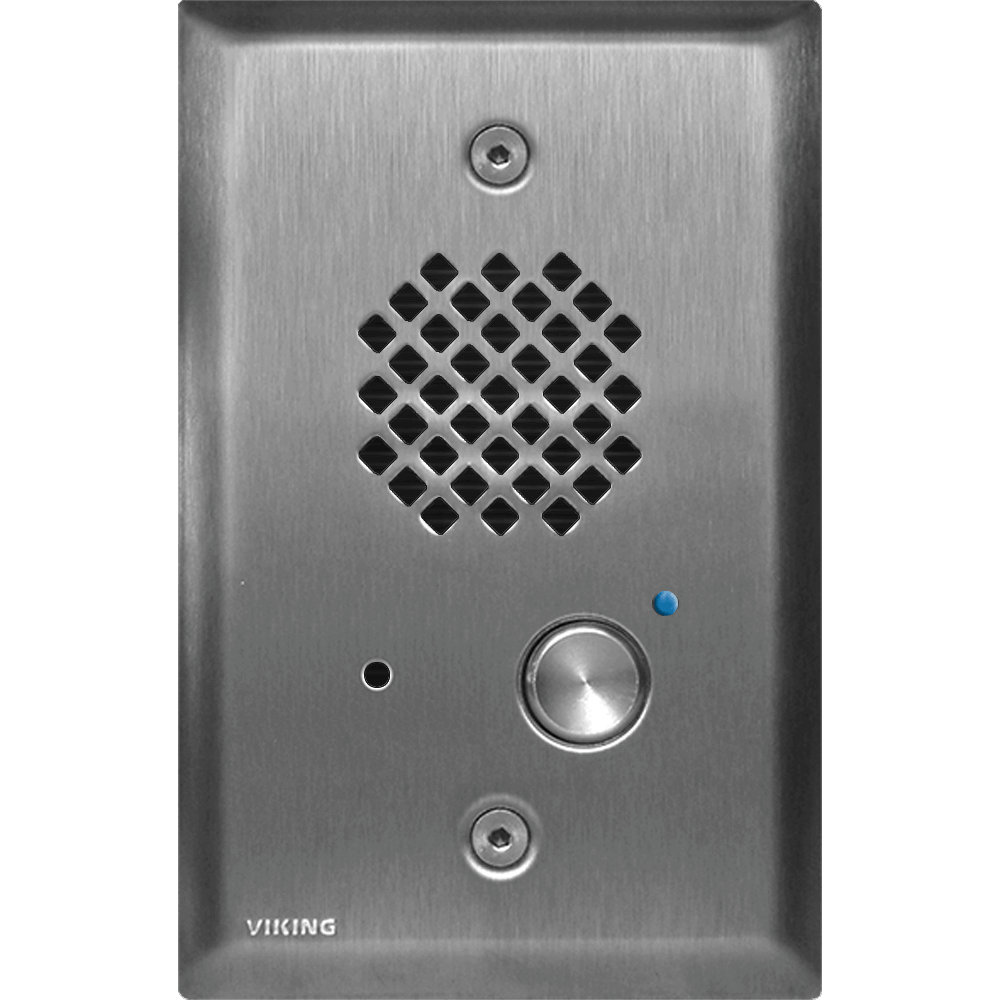

The Viking E-40-SS entry phone is a compact, weather and vandal resistant, telephone line powered speaker phone designed to provide two-way handsfree audio communication. The E-40-SS’s compact size allows it to be mounted in a standard single gang electrical box. The E-40-SS’s blue LED continually provides light for locating the push button in dark locations, dims to indicate off hook and flashes during incoming calls.
The Viking E-40-SS entry phone can share a single phone line with house or small business telephones when used with a Viking C-200, Viking C-250, Viking C-500 or C-2000B Entry Phone controller. The E-40-SS entry phone can also be connected to an unused analog station port (programmed for ringdown) on a phone system or connected directly to a telephone line when used with a Viking K-1900-5 or K-1900-30 auto dialer. The E-40-SS features microphone and speaker volume controls, selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed.
Replacement faceplates (PNL40-SS) can be purchased separately.
For outdoor installations where the unit is exposed to precipitation or condensation, use model E-40-SS-EWP. For more information on Enhanced Weather Protection (EWP).
Couldn't load pickup availability
- Flush mounts in a single gang electrical box (2.25″ deep x 2.00″ wide x 2.84″ tall minimum)
- Surface mounts in a Viking model VE-3X5 (not included, see DOD 424) for mounting on a wall, post or VE-GNP Gooseneck Pedestal (E-40-SS-EWP recommended)
- 18 gauge 304 stainless steel faceplate
- 316 stainless steel push button
- fiberglass reinforced plastic speaker screen
- scratch resistant powder coating
- hex drive mounting screws
- Mylar speaker
- faceplate gasket
- mic and speaker gasket
- internally sealed (IP67) push button switch
- self draining mic mount
- UV stable weather resistant powder coating
APPLICATIONS
- Door or gate communication, business delivery entrances
- Use with a Viking C-200 or Viking C-250 to control one unit on a single line
- Use with a Viking C-500 to control 1 or 2 (expandable to 8) units and door/gate control on a single phone line
- Use with a Viking C-2000B to control 1 to 4 units and door/gate control on a single phone line
- Provide unique front and back door chimes and paging when used with a Viking SLP-1, Viking SLP-4 and Viking C-2000B
- Residential, commercial and industrial door security
- Use with a Viking K-1900-5 or Viking K-1900-30 for automatic speed dialing on telephone lines or analog PABX/KSU station ports
- Use on any analog PABX station port with programmable ringdown capability
SPECIFICATIONS
| Power | Telephone line powered (24VDC / 20mA minimum) |
|---|---|
| Faceplate Dimensions | 4.875″ x 3.125″ x 0.18″ (123.8mm x 79.4mm x 4.6mm) |
| Phone Dimensions | 2.84″ x 1.8″ x 1.65″ (72mm x 46mm x 42mm) |
| Shipping Weight | 1.0 lbs (0.45 kg) |
| Operating Temperature | -30° F to 150° F (-34° C to 65° C) |
| Humidity | 5% to 95% non-condensing humidity |
| Material | 18 gauge 304 stainless steel faceplate with #4 brushed finish |
| Speaker Volume | Approximately 62db maximum @ 1m |
| Ring Voltage | 25V AC RMS minimum (for auto answer) |
| CPC Disconnect Time | 300ms minimum |
| REN | 0.8A |
| Connections | (2) gel-filled butt connectors |
