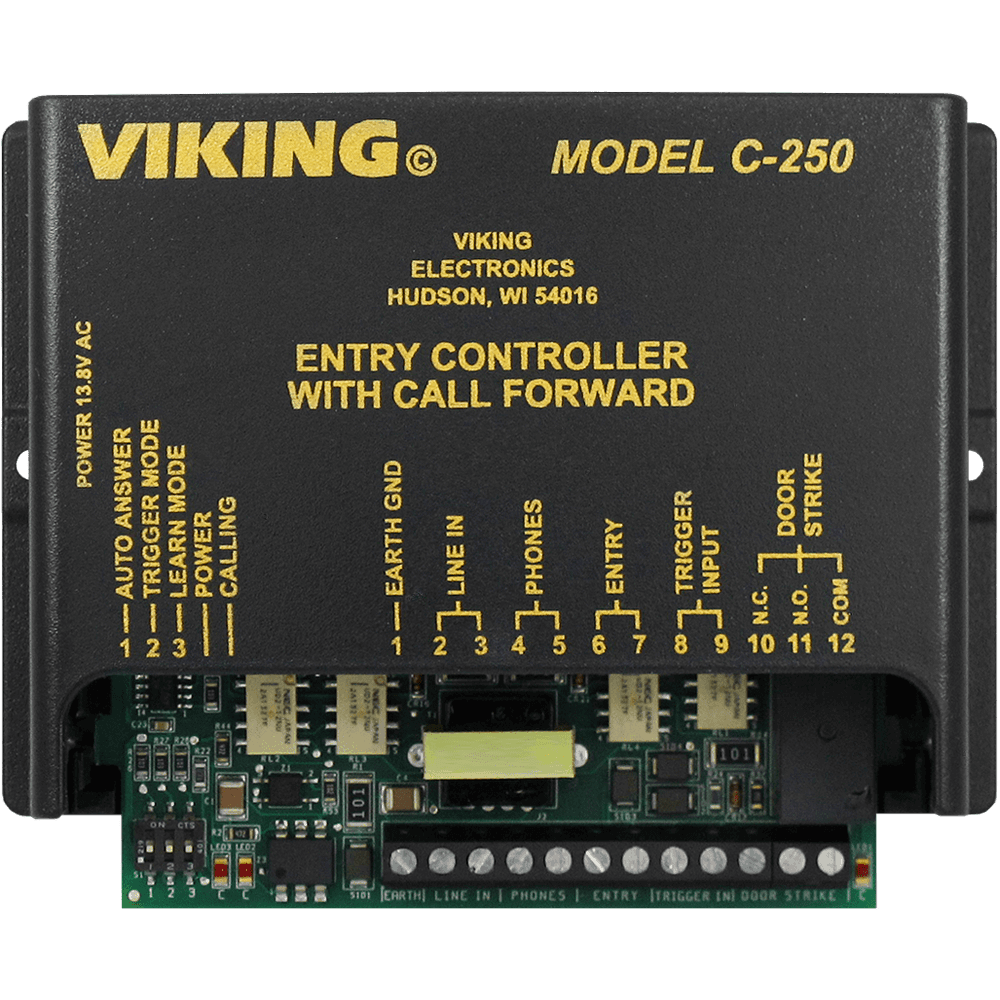

Viking C-250 Entry Phone Controller And Call Router

Viking C-250 Entry Phone Controller And Call Router


SKU: C-250

The Viking C-250 allows you to use a single Viking door entry phone with single line telephones or a telephone system. Tenants can converse with the visitor and let them in with a touch-tone command after answering the call.

The Viking C-250 also has a built-in five number dialer to make an outside call if there is no answer on the inside phone. If the outside call is busy or ring no answer, the C-250 can call up to four more numbers.

The Viking C-250 provides a “Call Waiting” tone when the phone line is in use. Tenants may also call out to the entry phone for monitoring purposes.

View full details

Viking C-250 Features:

  • Five Number Dialer: Built-in dialer makes an outside call if there is no answer on the inside phone. If outside call is not answering, it can call up to four additional outside numbers.
  • House phones ring with C.O. line cadence or distinctive ring when the entry phone is calling
  • Tenants may also call out to entry phone for monitoring purposes
  • Detects busy or ring no answer and goes onto the next number
  • Built in door strike relay with 1 or 2 digit commands
  • Detects touch tones as fast as 50 milliseconds
  • Postal lock input
  • Produces “Call Waiting” tones if the entry phone is activated when the house phones are already on a call
  • Manufacturer Warranty 2 Year Limited Warranty

Compatible Viking Phones:

Viking C-250 Applications

    • Add an entry phone to your standard home or office phones to provide door communication
    • Provide commercial or residential security via two-way handsfree communication at the door or gate
    • Connects in series with a single phone line or with a phone system’s line / trunk input
    • Viking C-250 Specifications

      • Power: 120VAC / 13.8VAC 1.25A UL listed adapter provided
      • Dimensions: 5.25″ x 4.1″ x 1.75″ (133mm x 104mm x 44mm)
      • Shipping Weight: 2 lbs (0.9 kg)
      • Operating Temperature: 32°F to 90°F (0°C to 32°C)
      • Humidity: 5% to 95% non-condensing
      • SPDT Relay Contact Rating: 5A @ 30VDC / 5A @ 250VAC, 250VAC maximum
      • Ring Output: 5 REN, capable of ringing ten 0.5 REN phones
      • Talk Battery: 32VDC
      • Connections: (12) cage clamp screw terminals

      Viking C-250 Certifications

      • FCC Part 68
