Viking Electronics

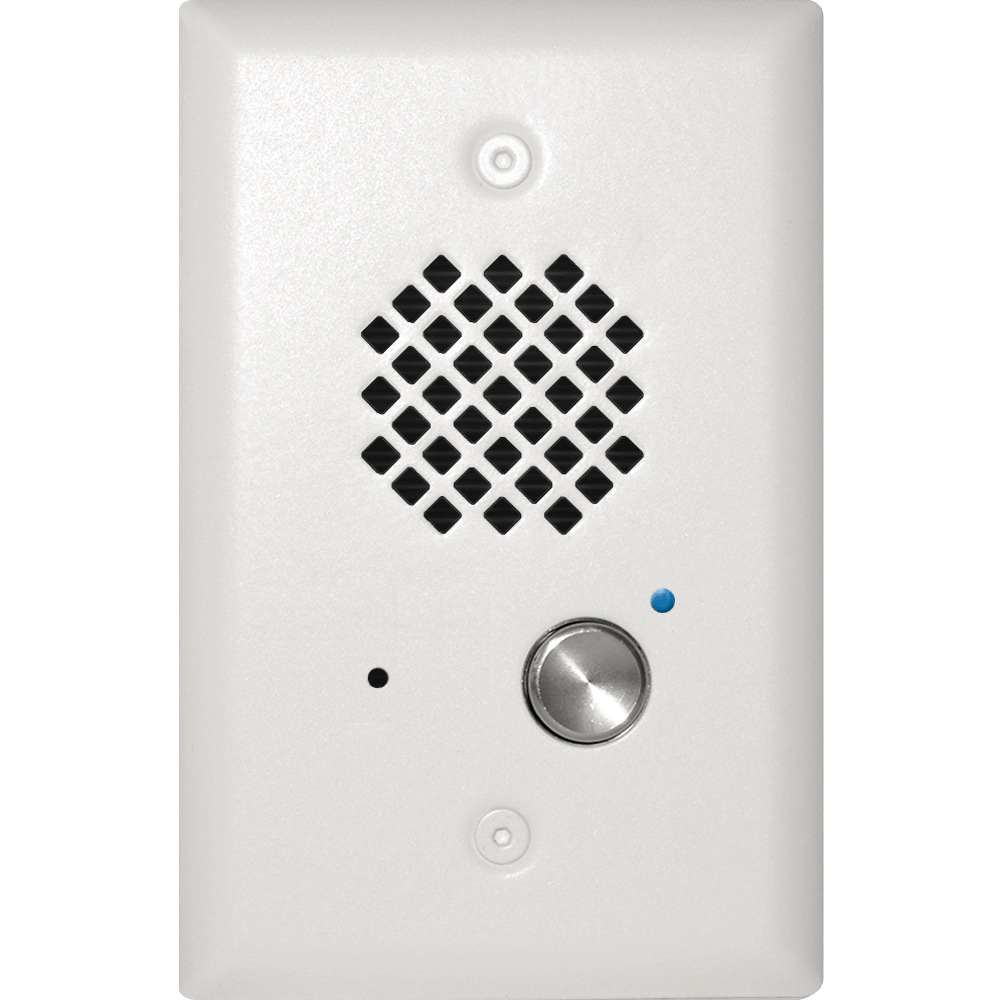

Viking E-40-WH Single Gang Entry Phone, White Finish

Viking E-40-WH Single Gang Entry Phone, White Finish

$226.95

SKU: E-40-WH

The E-40-WH door entry phone is a compact, weather and vandal resistant, telephone line powered speaker phone designed to provide two-way handsfree audio communication. The E-40-WH’s compact size allows it to be mounted in a standard single gang electrical box. The E-40-WH’s blue LED continually provides light for locating the push button in dark locations, dims to indicate off hook and flashes during incoming calls.

The E-40-WH entry phone can share a single phone line with house or small business telephones when used with a Viking C-200, C-250, C-500 or C-2000B Entry Phone controller. The E-40-WH entry phone can also be connected to an unused analog station port (programmed for ringdown) on a phone system or connected directly to a telephone line when used with a Viking K-1900-5 or K-1900-30 auto dialer. The E-40-WH features microphone and speaker volume controls, selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed.

Replacement faceplates (PNL40-WH) can be purchased separately.

For outdoor installations where the unit is exposed to precipitation or condensation, use model E-40-WH-EWP. For more information on Enhanced Weather Protection (EWP).

View full details
Viking E-40-WH Features

  • Compact size – Front panel is the size of a typical single gang mid-size wall plate
  • Mounting:
    • Flush mounts in a single gang electrical box (2.25″ deep x 2.00″ wide x 2.84″ tall minimum)
    • Surface mounts in a Viking model VE-3X5 (not included, see DOD 424) for mounting on a wall, post or VE-GNP
    • Gooseneck Pedestal (E-40-WH-EWP recommended)
  • Vandal Resistant Features:
    • 18 gauge 304 stainless steel faceplate
    • 316 stainless steel push button
    • fiberglass reinforced plastic speaker screen
    • scratch resistant powder coating
    • hex drive mounting screws
  • Weather Resistant Features:
    • Mylar speaker
    • faceplate gasket
    • mic and speaker gasket
    • internally sealed (IP67) push button switch
    • self draining mic mount
    • UV stable weather resistant powder coating
  • Telephone line powered
  • Microphone and speaker volume controls
  • Programmable intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
  • Selectable auto answer feature for monitoring
  • Programmable VOX (mic/speaker) switching speed
  • Blue LED helps locate push button, indicate ringing and off hook

  • SPECIFICATIONS

    Power Telephone line powered (24VDC / 20mA minimum)
    Faceplate Dimensions 4.875″ x 3.125″ x 0.18″ (123.8mm x 79.4mm x 4.6mm)
    Phone Dimensions 2.84″ x 1.8″ x 1.65″ (72mm x 46mm x 42mm)
    Shipping Weight 1.0 lbs (0.45 kg)
    Operating Temperature -30° F to 150° F (-34° C to 65° C)
    Humidity 5% to 95% non-condensing humidity
    Material 18 gauge 304 stainless steel faceplate
    Finish UV stable satin white powder paint
    Speaker Volume Approximately 62db maximum @ 1m
    Ring Voltage 25V AC RMS minimum (for auto answer)
    CPC Disconnect Time 300ms minimum
    REN 0.8A
    Connections (2) gel-filled butt connectors
