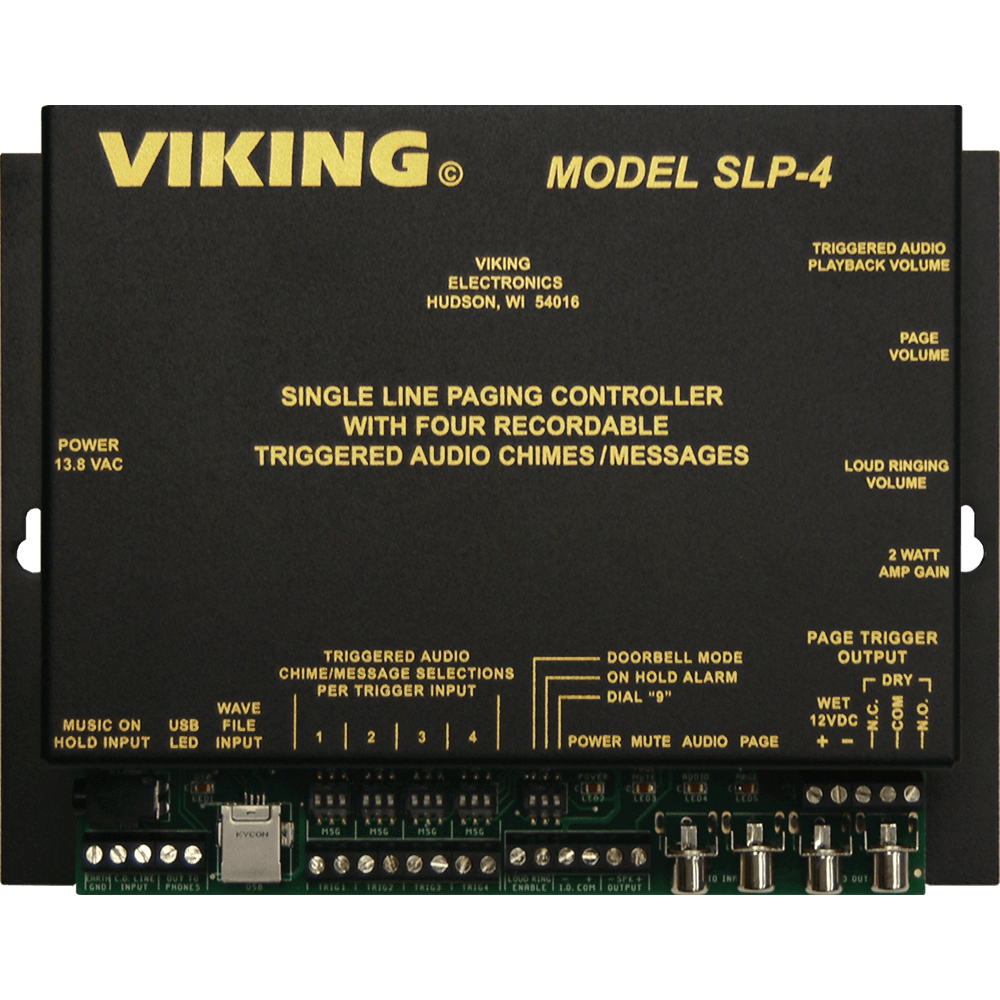

Viking SLP-4 Single Line Paging Controller
Viking SLP-4 Single Line Paging Controller
$437.92
SKU: SLP-4
The Viking SLP-4 allows you to page family members or co-workers from any phone in your home or small office. The pages can be heard over the same paging speakers that are installed for multi-zone music distribution.
The Viking SLP-4 provides inputs for 4 lighted doorbell switches. The inputs select 4 different CD quality sounds from a library of eight factory recordings including Westminster bells, chimes, alert tones, barking dogs, etc. Alternatively, users may record their own CD quality sounds into the SLP-4 from their PC’s USB port. When the doorbell switch is pressed, background music is muted while the appropriate sound is heard over the paging system speakers.
The Viking SLP-4 connects in series with a single existing phone line. The unit has a built-in 2 watt amplifier, pre-amp output, music on hold input, intercom features, and selectable loud ringing.
Couldn't load pickup availability
Viking SLP-4 Features:
- Factory loaded CD quality Westminster door chimes
- Stereo line level pre-amp inputs/outputs for whole house audio systems
- Built-in two-watt mono paging amplifier with gain control
- Phone to phone intercom
- Place callers on music-on-hold when paging
- Can provide background music from an external source
- Background music mute (automatic during paging or touch tone selectable while on a call)
- Selectable loud ringing (electronic warble over speakers)
- Four doorbell switch inputs (lighted or non-lighted) for activating door chimes
- USB port for loading custom WAV file chime tones/sounds/music
- 6 minutes of recorded audio storage
- Switch selectable on-hold alarm tones
- Page trigger output (12V signal for enabling paging source input on multi-source amps)
- Individual Chime, Page, and Ringing volume controls
- Bypass code ignores all touch tones on next off-hook allowing user to steer through auto attendants, etc.
- Page from multiple phone lines by connecting multiple units
- Other door sounds: ding-dong, knocking, tones, barking
- UL listed power adapter provided
- Manufacturer Warranty 2 Year Limited Warranty
Viking SLP-4 Applications:
- Whole house / small business paging from existing phones
- Add paging, intercom, and music on hold features for small businesses
- Loud ringing / night bell
- Compatible with C-200, C-250, C-1000B and C-2000B
- Museum or Info Center, 4 button audio server
-
Viking SLP-4 Specifications
- Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided
- Dimensions: 8.25” x 6.25” x 1.75” (210mm x 159mm x 45mm)
- Environmental: 32°F to 90°F (0°C to 32°C) with 5% to 95% non-condensing humidity
- Paging Amplifier Output: 2 Watts – powers up to (3) 8 Ohm (16) 45 Ohm speakers
- Sound Pressure: 100 dB @ 1 meter (loud electronic warble from 25AE paging horn)
- REN: 0.5A
- Maximum Speaker Output Wire Run: 300 ft (91m), 18 AWG
- Maximum Doorbell Switch Wire Run: 1000 ft (305m), 24 AWG
- Maximum Load on Page Trigger Output: 1K Ohm
- Talk Battery: 36V DC
- WAV File Resolution: 16 bit or 8 bit
- WAV File Sampling Rate: 44.1K, 22K, or 11K
- Connections: 24 screw terminal block positions, (4) RCA jacks, (1) Type B USB jack, (1) 3.5mm (1/8”) audio jack
