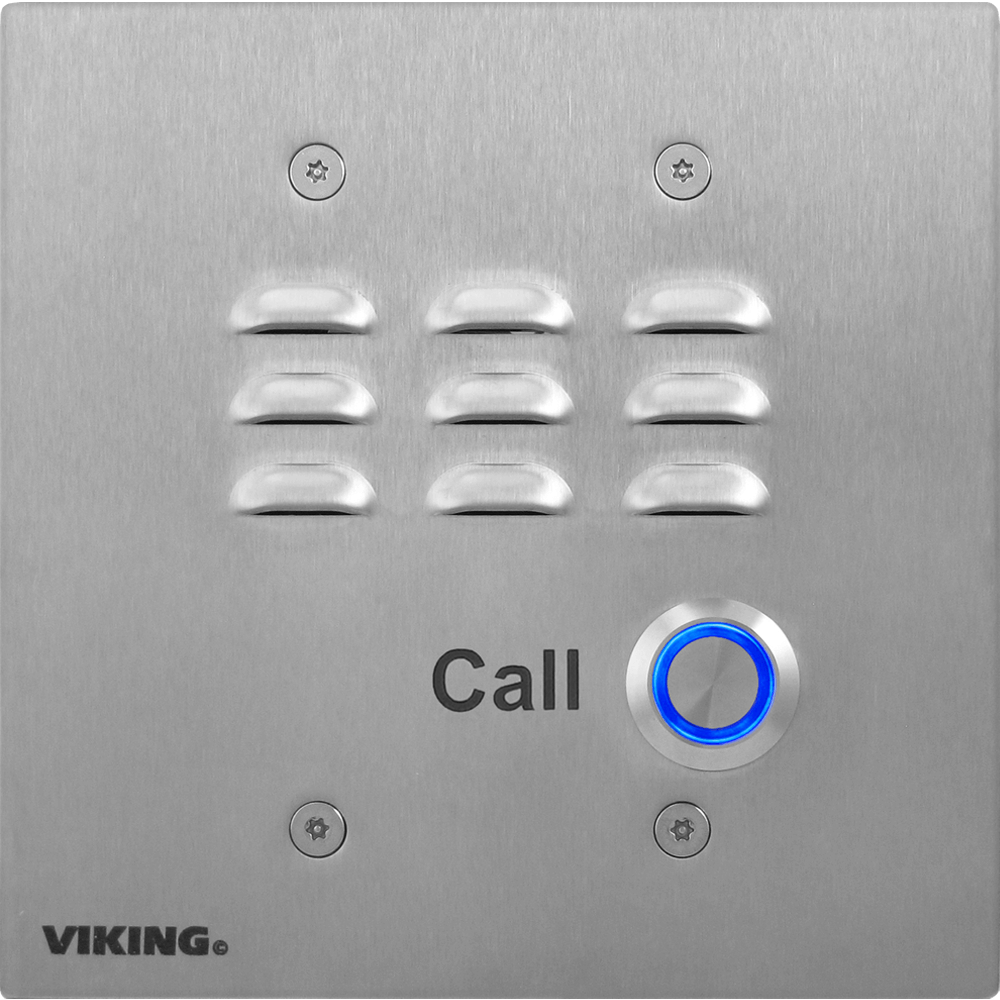

Viking E-32T-SS-IP IP Intercom with Secure SIP and Web UI
Viking E-32T-SS-IP IP Intercom with Secure SIP and Web UI
$837.20
SKU: E-32T-SS-IPShips in 5-7 business days
The Viking E-32TF-IP Touch-Free VoIP Entry Phone is equipped with Viking’s touchless motion sensor. A simple wave over the sensor will activate a call. Touch-free calling eliminates the exposure to germs and bacteria from typical push button switches.
The entry phone is designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE and can be programmed from any touch tone phone, PC, or remotely using a static IP address. The E-32TF-IP can dial up to 5 programmable numbers. On-board 2 Amp relay contacts are provided to activate doorstrikes or gate controllers. An optional Viking RC-4A Secure Relay Controller can also be used.
The entry phone motion sensor LED lights blue during idle, flashes green during dialing and lights solid green when the call is answered.
For outdoor installations where the unit is exposed to precipitation or condensation, use model E-32TF-IP-EWP. For more information on Enhanced Weather Protection (EWP).
Couldn't load pickup availability
- SIP compliant
- SIP Transport over TLS
- Plays user uploaded wave files for voice announcement or alert tone
- Remotely programmable via Web UI
- Optional Network Relay for Remote Relay Control (RC-4A)
- 2 Amp relay contacts for door/gate or optional SL-2 strobe light
- Blue backlit 316 stainless steel push button switch
- PoE powered (class 2, < 6.5 Watts)
- Network downloadable firmware
- T-10 Torx security screws for added security
- Handsfree operation
- Vandal resistant stainless steel prevents corrosion
- Laser etched graphics
- Cycles through backup phone numbers on busy or no-answer
- Optional SIPS (SIP Secure)
- Extended temperature range of -40° F to 140° F
- Available finishes: stainless steel
- Volume adjustments for microphone and speaker
- Flush mounts in a standard double gang electrical box (not included) , or may be surface mounted using an optional VE-5×5 Surface Mount Box
- Diagnostics for testing microphone, speaker, and relay
Viking E-32T-SS-IP APPLICATIONS
- Gate entrance
- Parking ramps/lots
- ATM machines
- Medical centers
- Lobbies
- Entryways
- Stadiums
- Convention centers
- Public access areas
SPECIFICATIONS
| Power | PoE class 2 (< 6.5 Watts) |
|---|---|
| Operating Temperature | -40°F to 140°F (-40° C to 60° C) |
| Humidity | 5% to 95% non-condensing |
| Audio Codecs | G711u, G711a, G722 |
| Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 1000BASE-T with auto cross over |
| Maximum Sound Pressure | 90 dB SPL @ 1m |
| Connections | (1) RJ45 100/1000 Base-T, (3) gel-filled butt connectors |
