Viking Electronics

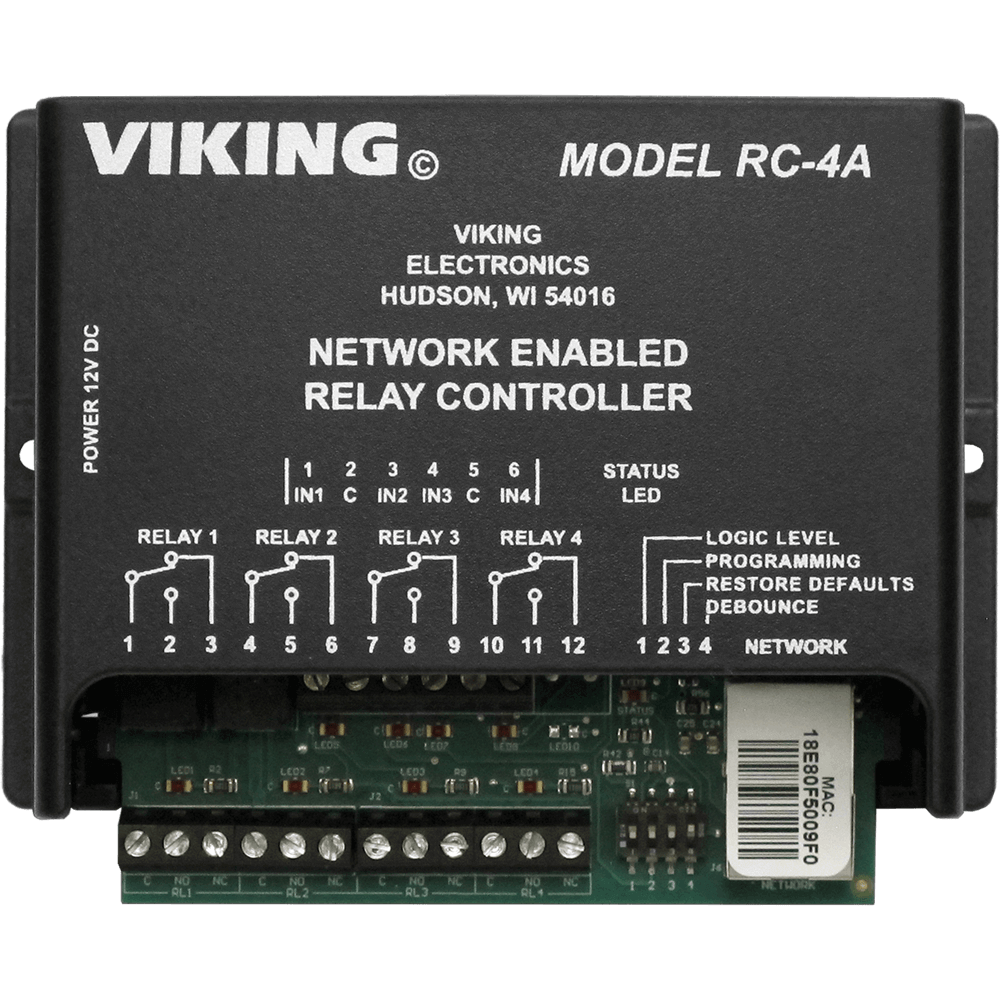

Viking RC-4A Network Enabled Relay Controller

Viking RC-4A Network Enabled Relay Controller

$220.35

SKU: RC-4A

The Viking RC-4A Controller provides networked control of four relays via an easy to use web interface. This same interface can be used to check the status of four contact closure inputs. Relays can be toggled on or off, or activated for a length of time.

View full details

Viking RC-4A Features:

    • Terminal strip connections for normally open, normally closed, and common for all four relays
    • Relays can be toggled or timed closures of from 1 to 99 seconds can be activated
    • Terminal strip connections for all four sensor inputs
    • Notification by email or text message of sensor input state change
    • Can be used as a secure remote relay for Viking VoIP series phones
    • Remote Interaction: sensor change on one RC-4A triggers relay activation of a second RC-4A across network
    • Ready-to-use webpage control interface
    • Encrypted login
    • Two levels of access based on login:
      – Administrator (full access)
      – Guest (programmable limits)
    • Relay names, input names and input status can be customized on webpage
    • Firmware updatable

Viking RC-4A Applications:

    • Remote Control of:
    • Secure building entry
    • Heating/cooling equipment
    • Pumps and fans
    • Security system
    • Gates
    • Lighting
    • Emergency tones
    • Viking RC-4A Specifications:

      • Power: 120VAC/12VDC 500ma UL listed adapter provided
      • Dimensions: 5.25” x 3.5” x 1.75” (133mm x 89mm x 44mm)
      • Environmental: 32 F to 90 F (0 C to 32 C ) with 5% to 95% non-condensing humidity
      • Relay Contact Ratings: 5A @ 30VDC/120VAC
      • Connections: (1) 12 position screw terminal block, (1) 6 position elevated screw terminal block
      • LAN Interface: (1) RJ45 10Base-T/100Base-TX
      • Minimum Requirements: Windows XP and newer, Mac OSX or newer, Android 2.2 or newer, iOS4 or newer (iPhone requires chrome), Javascript enabled internet browser

      Viking RC-4A Certifications:

      • FCC Part 15
