Viking Electronics

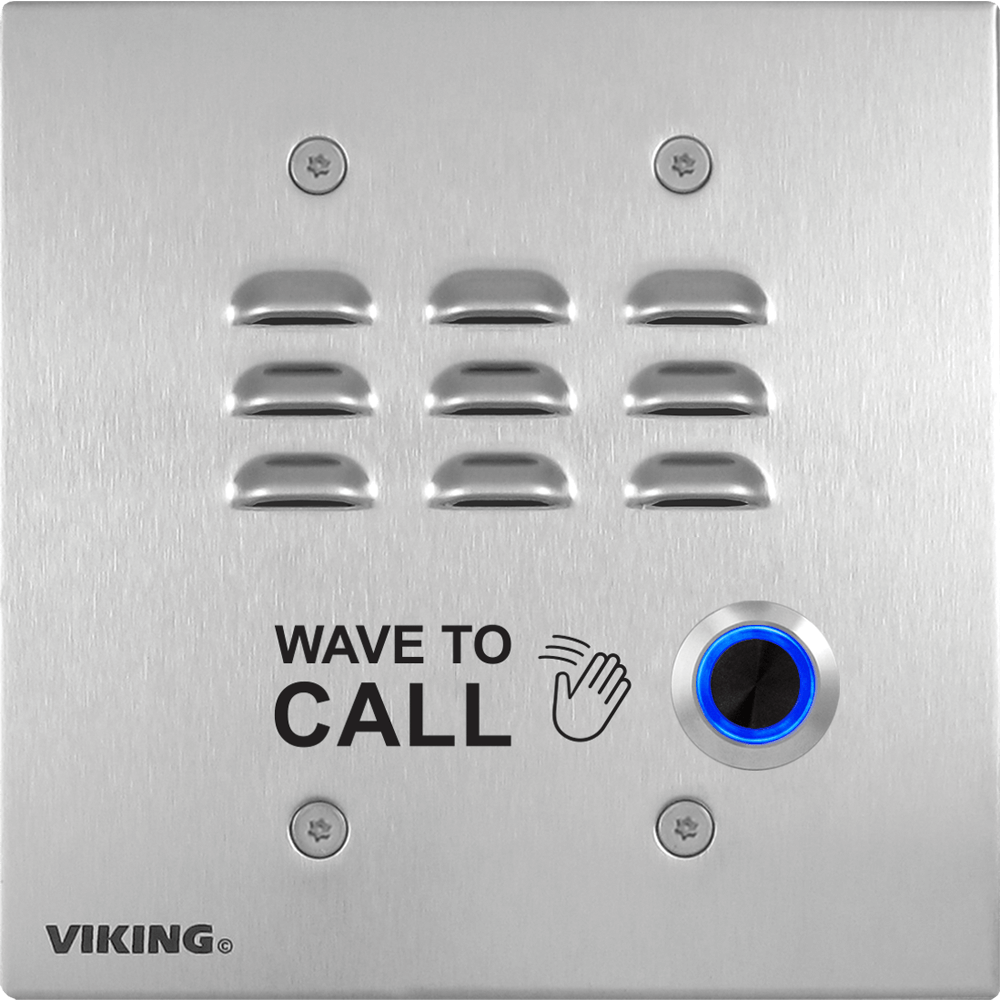

Viking E-32TF-IP Touch Free Motion Sensor Voip Entry Phone

Viking E-32TF-IP Touch Free Motion Sensor Voip Entry Phone

$549.95

SKU: E-32TF-IP

The Viking E-32TF-IP Touch-Free VoIP Entry Phone is equipped with Viking’s touchless motion sensor. A simple wave over the sensor will activate a call. Touch-free calling eliminates the exposure to germs and bacteria from typical push button switches.

The entry phone is designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE and can be programmed from any touch tone phone, PC, or remotely using a static IP address. The E-32TF-IP can dial up to 5 programmable numbers. On-board 2 Amp relay contacts are provided to activate doorstrikes or gate controllers. An optional Viking RC-4A Secure Relay Controller can also be used.

The entry phone motion sensor LED lights blue during idle, flashes green during dialing and lights solid green when the call is answered.

For outdoor installations where the unit is exposed to precipitation or condensation, use model E-32TF-IP-EWP. For more information on Enhanced Weather Protection (EWP).

View full details
Viking E-32TF-IP Features
  • Touch-free motion sensor with adjustable range from one to four inches
  • Motion sensors ring LED lights blue during idle, flashes green during dialing and lights steady green when call is answered
  • Automatic polling and programming software included
  • 2 Amp relay contacts for door/gate or SL-2 Strobe Light control
  • SIP compliant
  • Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
  • PoE powered (class 1, <4 Watts)
  • Automatic Noise Canceling (ANC) for proper operation in noisy environments
  • VoIP eliminates the need for “Push to Talk” mode
  • Network downloadable firmware
  • T-10 Torx security screws for added security
  • Can be used with optional RC-4A Secure Relay Controller
  • Marine grade 316 stainless steel prevents corrosion on stainless steel models
  • Laser etched graphics on stainless steel models
  • Programmable to dial up to 5 numbers on busy or ring no answer
  • Cycles through backup phone numbers on busy or no-answer
  • Hangs up on busy signal, time-out or touch tone command
  • Remotely programmable
  • Extended temperature range of -40°F to 140°F
  • Volume adjustments for microphone and speaker
  • Flush mounts in a standard double gang electrical ­­­­­­­­­box (not included)­­­­
  • Diagnostics for testing microphone, speaker, and relay

Viking E-32TF-IP APPLICATIONS
Gesture activated entry phone for use in high traffic areas, such as:

  • Gate entrance
  • Parking ramps/lots
  • ATM machines
  • Medical centers
  • Lobbies
  • Entryways
  • Stadiums
  • Convention centers
  • Public access areas

SPECIFICATIONS

Power PoE class 1 (<4 watts)
Operating Temperature -40°F to 140°F (-40° C to 60° C)
Humidity 5% to 95% non-condensing
Audio Codecs G711u, G711a, G722
Network Compliance IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
Regulatory Compliance FCC Part 15, Canada ICES-3 Class A, CE
Maximum Sound Pressure 90 dB SPL @ 1 m
Connections (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
