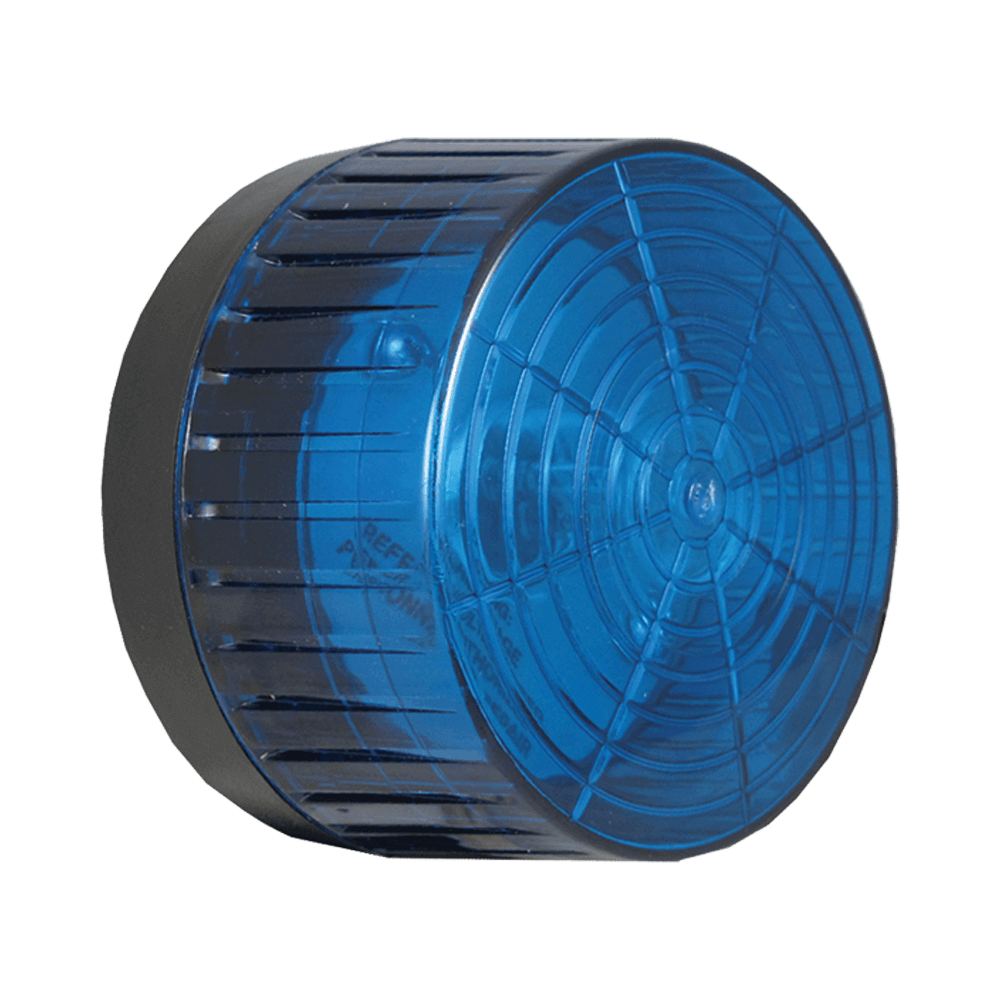

Viking SL-2-EWP LED Strobe and/or Beacon Visual Indicator with Programmable Brightness and Flash Patterns, and Enhanced Weather Protection

Viking SL-2-EWP Features:

• Over 57,000 hour (6.5 year) light source life to 70% light output
• 4 Programmable Flash Patterns:
• Single Flash
• Double Flash
• Quad Flash
• Flicker Flash
• 6 Programmable Beacon and Strobe brightness settings
• Immune to shock and vibration
• Low current draw
• Shatter resistant blue polycarbonate lens
• The model SL-2-EWP includes Enhanced Weather Protection (EWP) for outdoor installations where the unit is exposed to precipitation or condensation
• EWP products feature foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming
• For Standard Weather Protection version see SL-2
• Dimensions: 4.41" diameter x 2.76"
• Manufacturer Warranty 2 Year Limited Warranty

Viking SL-2-EWP Applications:

• High noise level areas where visual status is required
• Signal personnel of equipment malfunctions
• Warn personnel they are entering a restricted area

• Viking SL-2-EWP Specifications

  • Power: 10- 15VDC 0.90 Amp(Peak), 0.15 Amp(Avg) @ 15VDC. Note: Power supply not included. The SL-2 is compatible with Viking model PS-2A 12VDC power supply.
  • Maximum Wire Run Length with CAT-5 and PS-2A Power Supply:
    • 3 wires = 100 ft
    • 6 wires = 300 ft
  • Dimensions: 4.41″ diameter x 2.76″ (112mm diameter x 70mm)
  • Shipping Weight: 0.6 lbs (0.25 kg)
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
  • Humidity: Up to 100%
  • Strobe Flash Rate: 60 flashes per minute (default)
  • Maximum Strobe Light Output @ 15VDC:
    • Clear lens: 323 lumens
    • Amber lens: 242 lumens
    • Blue lens: 116 lumens
    • Red lens: 66 lumens
  • Connections: Three 9″ (22.9 cm) long leads, 26 AWG
