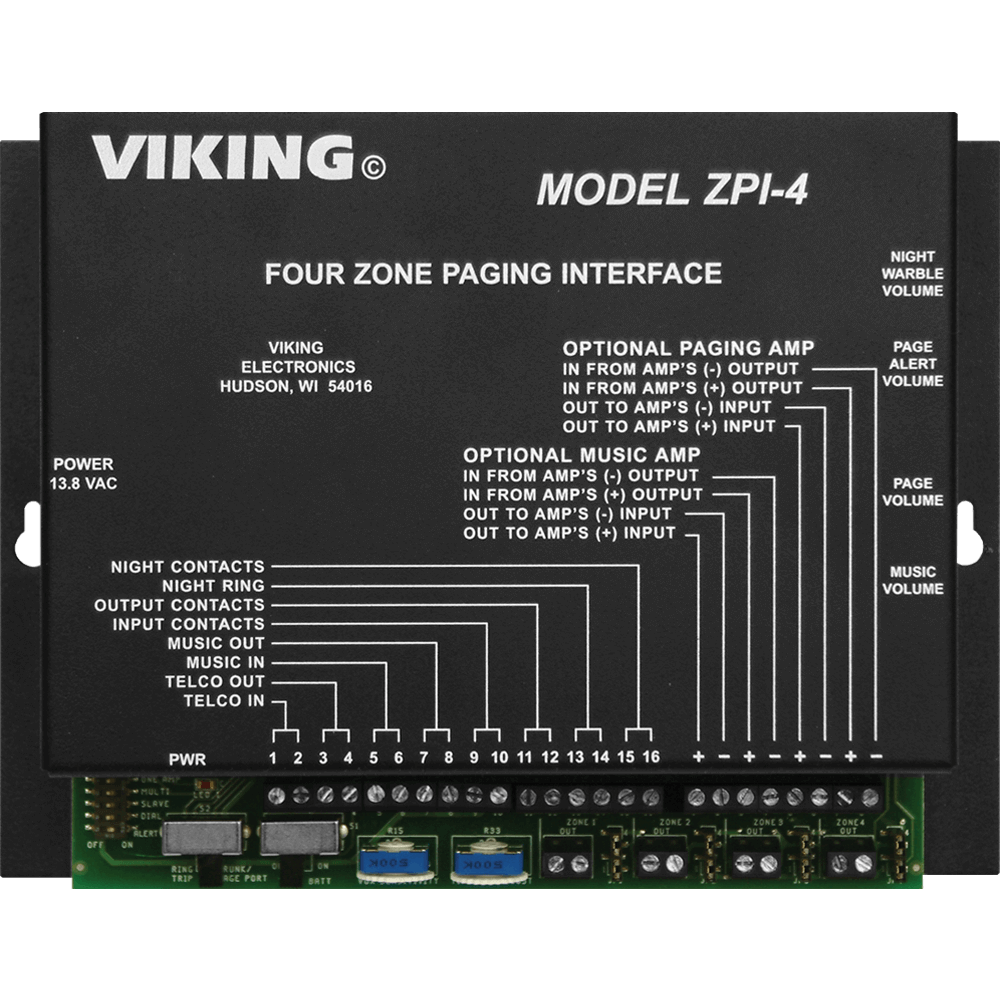

Viking ZPI-4 4-Zone Page Interface

The Viking 4-Zone Page Interface is a four-zone Touch Tone controlled paging system capable of switching a line level signal to amplifiers or an amplified signal to speakers.

Applications:

• Multiple zone paging for Centrex systems
• Multiple zone paging for phone systems with pagingports, unused analog station ports or unused trunk inputs
• Multiple department manufacturing business
• Multilevel warehouse
• Multi building office complex

Features:

• Touch Tone control of four zones (expandable to 16 zones)
• Switches line level signal to amplifiers or amplified signal to speakers (amplifier(s) not included)
• Balanced audio circuitry for low noise
• Night bell warble with adjustable level from contact closure or ringing analog line
• Input provided for background music
• Separate paging and background music level adjustments Background music automatically mutes in paged zone(s) in all but single amplifier mode
• All-call and five group call patterns, selected by Touch Tones
• Adjustable page alert tone level
• Interfaces with ringing C.O. lines, Centrex lines, paging ports, unused phone system trunk inputs, or ringing analog station ports
• Disconnects on timeout, silence or CPC
• Screw terminals for all input and output connections
• GTIN 0615687221541
• UPC Code 615687221541

Specifications:

• Power: 120V AC/13.8V AC, 1.25A adapter provided
• Dimensions: 210mm x 159mm x 45mm (8.25” x 6.25” x 1.75”)
• Shipping Weight: 1.5 kg (3.2 lbs.)
• Environmental: 0° C to 32° C (32° F to 90° F) with 5% to 95% non-condensing humidity
• Relay Contacts: 5 Amps @ 30V DC/250V AC each
• REN: 0.5 A
• Artificial Talk Battery Voltage: 24V DC
• Connections: (34) cage clamp screw terminals
