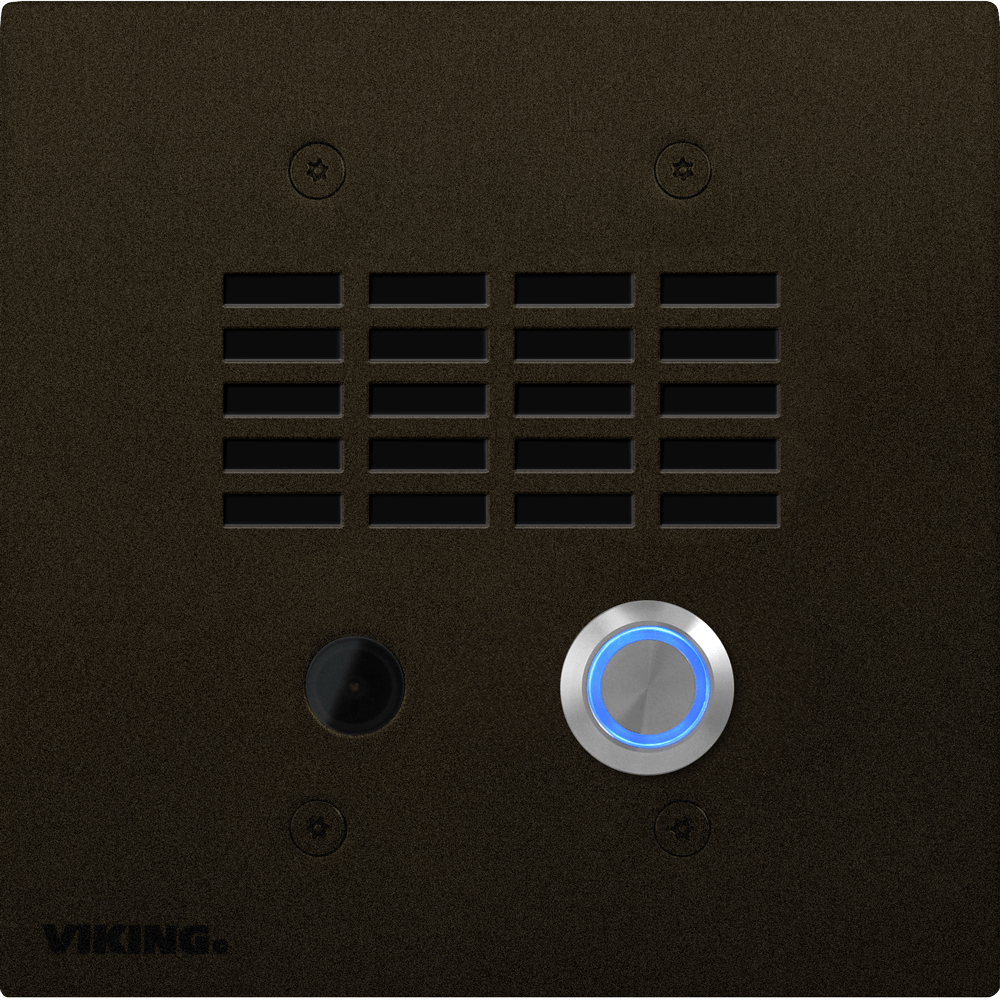

Viking X-35-BN IP Intercom with HD Video
Viking X-35-BN IP Intercom with HD Video
$905.30
SKU:Ships in 1 week
The X-35-BN IP Video Intercom is designed to provide HD video and reliable handsfree voice communication for SIP VoIP phone systems and service providers.
Couldn't load pickup availability
Viking X-35-BN Features:
- SIP compliant
- ONVIF Profile S compliant
- 126° wide viewing angle
- H.264 and MJPEG video encoding
- Up to 1080p SIP video calling
- Separate NVR stream with audio up to 1080p
- Selectable video resolutions: 352 x 288, 704 x 526, 720p and 1080p
- Remotely programmable via Web UI
- Gigabit Ethernet for up to 1000 Mbps
- 2 Amp relay contacts for door/gate or optional SL-2 strobe light
- Blue backlit 316 stainless steel push button switch
- PoE powered (class 1, < 4 Watts)
- Network downloadable firmware
- T-10 Torx security screws for added security
- Handsfree operation
- Vandal resistant stainless steel prevents corrosion
- Laser etched graphics
- Cycles through backup phone numbers on busy or no-answer
- Extended temperature range of -40° F to 140° F
- Brushed stainless steel finish
- Volume adjustments for microphone and speaker
- Flush mounts in a standard double gang electrical box (not included), or may be surface mounted using an optional VE-5×5 Surface Mount Box
- Diagnostics for testing microphone, speaker, and relay
Applications:
- Gate entrances
- Parking ramps/lots
- ATM machines
- Medical centers
- Lobbies
- Entryways
- Stadiums
- Convention centers
- Public access areas
Specifications
| Power | PoE class 1 (<4 Watts) |
|---|---|
| Maximum Sound Pressure | 90dB SPL @ 1m |
| Dimensions | 5.0″ x 5.0″ x 2.25″ (127mm x 127mm x 57mm) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Humidity | 5% to 95% non-condensing |
| Video Codecs | H.264 and MJPEG |
| Audio Codecs | G711u, G711a, G722 |
| Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over |
| Connections | (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors |
