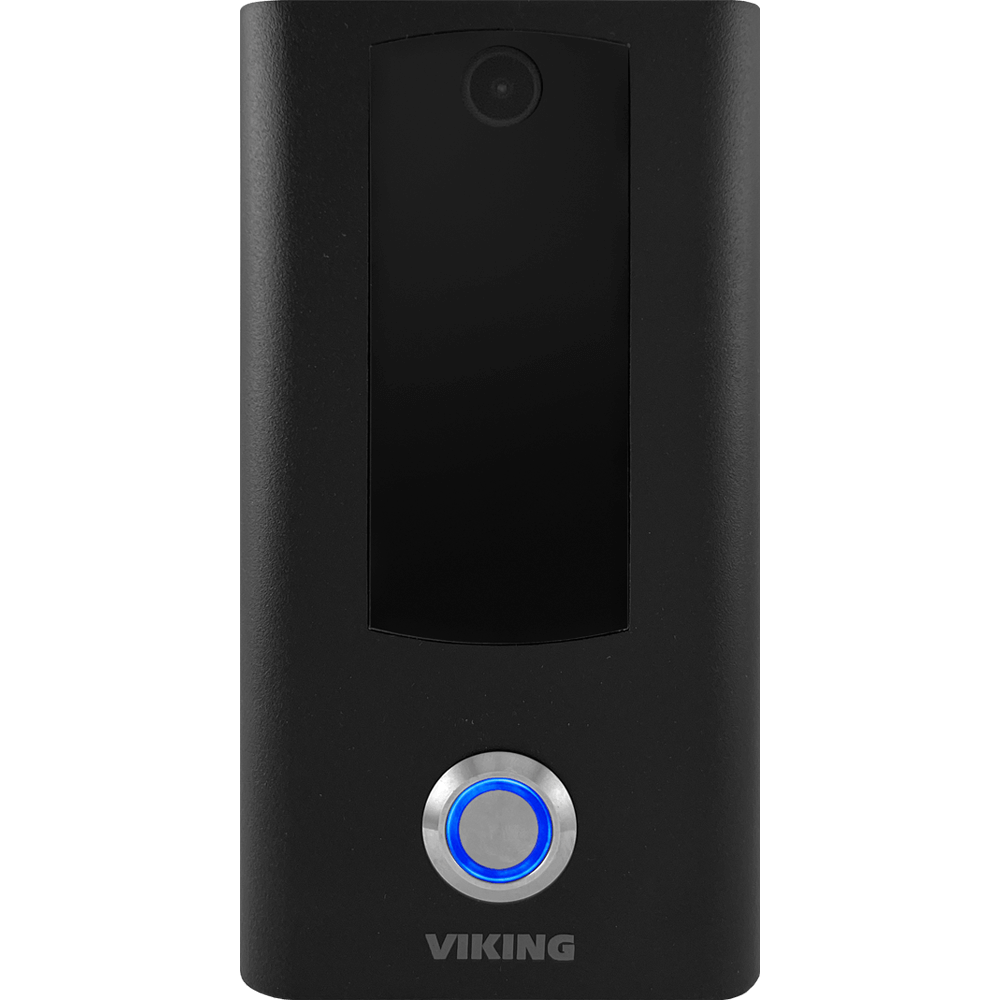

Viking X-205-BK-EWP Compact IP Intercom with HD Video and EWP
Viking X-205-BK-EWP Compact IP Intercom with HD Video and EWP
$1,069.45
SKU: X-205-BK-EWP
The X-205-BK-EWP Compact IP Video Intercom is designed to provide HD video and reliable handsfree voice communication for SIP VoIP phone systems and service providers.
Couldn't load pickup availability
Viking X-205-BK-EWP Features:
- SIP compliant
- ONVIF Profile S compliant
- 126° wide viewing angle
- H.264 and MJPEG video encoding
- Up to 1080p SIP video calling
- Separate NVR stream with audio up to 1080p
- Selectable video resolutions: 352 x 288, 704 x 526, 720p and 1080p
- Remotely programmable via Web UI
- Gigabit Ethernet for up to 1000 Mbps
- 2 Amp relay contacts for door/gate or optional SL-2 strobe light
- Blue backlit 316 stainless steel push button switch
- PoE powered (class 1, < 4 Watts)
- Network downloadable firmware
- Handsfree operation
- Vandal resistant stainless steel prevents corrosion
- Laser etched graphics
- Cycles through backup phone numbers on busy or no-answer
- Includes Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating
- Extended temperature range of -40° F to 140° F
- Brushed stainless steel finish
- Volume adjustments for microphone and speaker
- Surface mounts to a standard single gang electrical box (not included), or mount directly to a wall or flat sided post
- Diagnostics for testing microphone, speaker, and relay
APPLICATIONS
- Front Door
- Gate Entrance
- Parking ramps/lots
- ATM machines
- Medical centers
- Lobbies
- Entryways
- Stadiums
- Convention centers
- Public access areas
SPECIFICATIONS
| Power | PoE class 1 (< 4 Watts) |
|---|---|
| Maximum Sound Pressure | 90 dB SPL @ 1m |
| Phone Dimensions | 5.75” x 3.0” x 1.05” |
| Operating Temperature | -40° F to 140° F (-40° C to 60° C) |
| Humidity | Up to 100% |
| Video Codecs | H.264 and MJPEG |
| Audio Codecs | G711u, G711a, G722 |
| Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 1000BASE-T with auto cross over |
| Connections | (2) gel-filled butt connectors |
