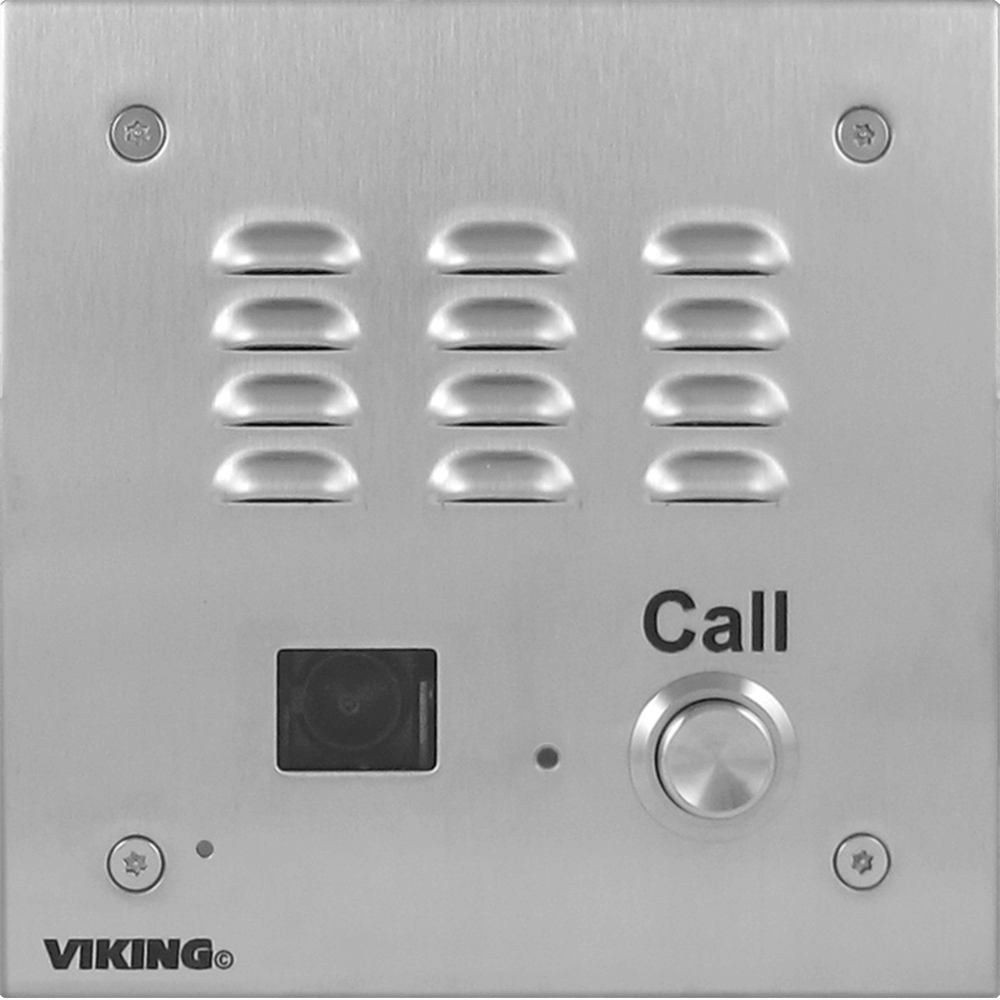

Viking W-3005-EWP Vandal Resistant Handsfree Doorbox with Built-In Color Video Camera

Viking W-3005-EWP Vandal Resistant Handsfree Doorbox with Built-In Color Video Camera


SKU: W-3005-EWP

Usually ships in 3-4 weeks

Manufacturer Warranty
2 Year Limited Warranty

View full details

Viking W-3005-EWP Features:

  • Built-in high resolution color video camera with wide viewing angle, tilt/swivel adjustments and wide operating temperature
  • Audio and video transmission on one CAT5E cable
  • Vandal Resistant Features: 14 gauge louvered 316 marine grade stainless steel faceplate with permanent laser etched graphics, stainless steel speaker/mic screen, heavy duty metal “Call” button,scratch resistant powder coating (optional VE-5×5) and hexdrive mounting screws
  • Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws and and push button switch. Switch internally sealed per IP67. Mylar speaker. Self-draining mic mount. Faceplate, mic and speaker gaskets. Weather resistant powder paint on optional VE-5×5.
  • Volume adjustments for microphone and speaker
  • Blue call progress / night light LED
  • High output speaker amplifier with volume adjustment POT
  • 20 Hz ring generator (6.0 REN ring load maximum)
  • Selectable ring cadence (standard, double, short/short/long, or short/long/short)
  • Selectable number of rings (2, 3, 10 or 30)
  • Selectable “Push-to-Talk” feature for noisy environments
  • Connect to a phone system’s unused trunk input, FXO port or a Viking C-1000B Controller
  • Viking W-3005-EWP APPLICATIONS:

    • Ideal for noisy locations in “Push-to-Talk” mode
    • Commercial, industrial or residential door security
    • Door or gate communication
    • Truck stop/gas station fuel island communication
    • Use with the C-1000B controller for single line residential systems or when the operation of door strikes or gate openers is necessary.
    • Viking W-3005-EWP SPECIFICATIONS:

      Power 120V AC/13.8V AC 1.25A UL listed adapter provided
      Dimensions Overall – 5.0” x 5.0” x 2.25” (127mm x 127mm x 57.2mm) Plastic Rough-In Box – 4.0” x 4.0” x 2.12” (102mm x 102mm x 54mm)
      Shipping Weight 3.2 lbs (1.45 Kg)
      Operating Temperature -15°F to 130°F (-26°C to 54°C)
      Humidity 5% to 95% non-condensing humidity
      Connections (7) Gel filled butt connectors (3M Scotchlok UR2), Inc. is a leading provider of Viking Electronics phone systems and equipment. We specialize in business phones and business phone systems for small to large companies; with phone systems for any application. We sell many of the brands in the IT, Telecom, Datacom, Electrical, and Industrial spaces.
