Viking Electronics

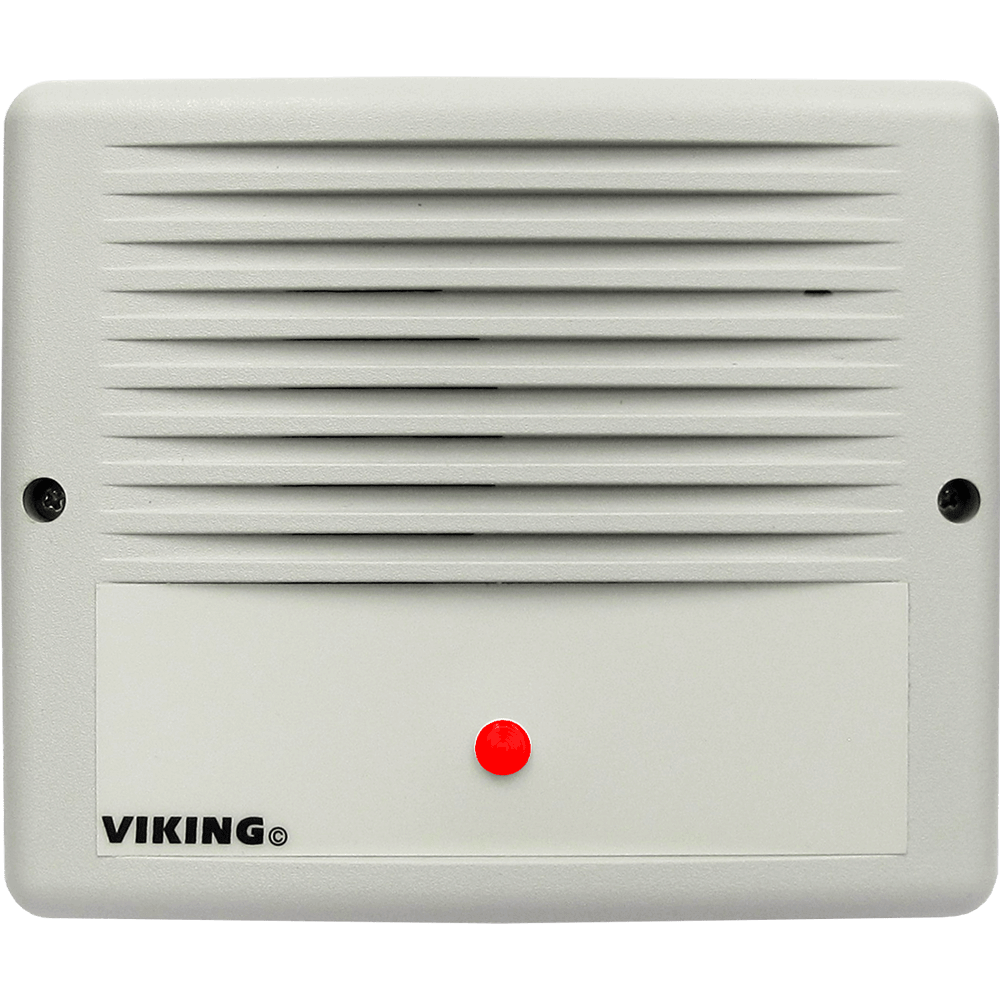

Viking SR-IP SIP Audible Ringer with Visual Ring Indication and Remote Strobe Light Control

Viking SR-IP SIP Audible Ringer with Visual Ring Indication and Remote Strobe Light Control

$289.56

SKU: SR-IP

Usually ships in 4 to 10 weeks!

SIP compliant PoE powered Viking SR-IP audio device provides audible and visual ring indication for SIP VoIP phone systems. Once registered with a SIP server, the Viking SR-IP can ring in one of 4 programmable ring patterns and flash a bright red LED upon ring detection. The internal relay contacts will activate during ring detection providing a trigger for a Viking SL-2 Strobe Light or LPL-1 Visual Ring Indicator.

View full details

Viking SR-IP Features:

  • Loud Ringer for noisy or variable noise environments (offices, classrooms, factories)
  • Visual Ring Indicator for quiet areas (Hospitals, Church, Theater)
  • Programming software included
  • Bright red visual ring indicator LED
  • SIP compliant (see pg 2 for list of compatible IP-PBX phone systems)
  • PoE powered (class 2,
  • Automatic Gain Control (AGC) to automatically increase ring volume to compensate for ambient noise
  • Network downloadable firmware
  • Surface mounts to a single gang or 4” x 4” electrical box or directly to a wall or post
  • Remotely programmable
  • Extended temperature range (-40°F to 140°F)
  • Remotely adjust ringer volume
  • Four programmable ring cadences: normal (2 sec ON / 4 sec OFF), double, short-short-long, short-long-short
  • 2 Amp relay contacts for Viking LPL-1 or SL-2 strobe light control
  • Optional LPL-1 Remote Visual Ring Indicator
  • Optional SL-2 or BLK-4-EWP strobe light kit available

VoIP SIP System Compatibility List:

    • On Premise
      • 3COM VCX
      • 3CX
      • Allworx
      • Aastra
      • Asterisk
      • Atcom
      • Avaya Aura Platform
      • Avaya IP Office Platform
      • BlueBox
      • Brekeke
      • Cisco Unified Communications Manager (CUCM)*
      • Cisco Unified Communications Manager Express (CUCME)
      • Elastix
      • epygi QX200
      • Freeswitch
      • Grandstream*
      • Interactive Intelligence
      • iPECS (Ericsson-LG)
      • Iwatsu ECS
      • Kamailio
      • Mitel 3300
      • NEC
      • OfficeSIP
      • OpenSIPS
      • Panasonic** (with SIP Extension Card)
      • PolyCom
      • Samsung Communications Manager (SCM)
      • ShoreTel
      • Siemens Communications Server (SCS)
      • SIP Express Router (SER)
      • Snom PBX
      • Sonus
      • Switchvox
      • Teksip
      • Toshiba
      • Vertical Wave*
      • Yealink T Series S IP Phones

Cloud Based Service Provider:

      • Callcentric
      • iptel.org
      • MetaSwitch
      • Ring Central
      • sip.antisip.com
      • Switchvox
      • unify
      • Vertical Wave
      • Voice Carrier
      • VoIP.MS
      • Wildix
      • ** Note: Relay operation commands are NOT compatible with Panasonic Phone Systems (Panasonic does not transmit DTMF between station ports)

Viking SR-IP Applications:

    • Audible / Visual Ringer for variable noise environments:
      • Offices
      • Classrooms, etc.
    • Visual Ring Indicator for quiet areas:
      • Hospitals
      • Churches
      • Theaters, etc.

      Viking SR-IP Specifications:

      • Power: PoE class 2 (<6.5 Watts)
      • Shipping Weight: 1.5 lbs (0.75 kg)
      • Dimensions: 5.5″ x 4.5″ x 1.5″ (140mm x 115mm x 38mm)
      • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
      • Humidity: 5% to 95% non-condensing
      • Maximum Sound Pressure: 93dB SPL @ 1m
      • SPDT Relay Contact Rating: 2A @ 30VDC / 1A @ 125VAC, 250VAC maximum
      • Audio Codecs: G711u, G711a, G722
      • Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
      • Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors

      Viking SR-IP Certifications

      • SIP
