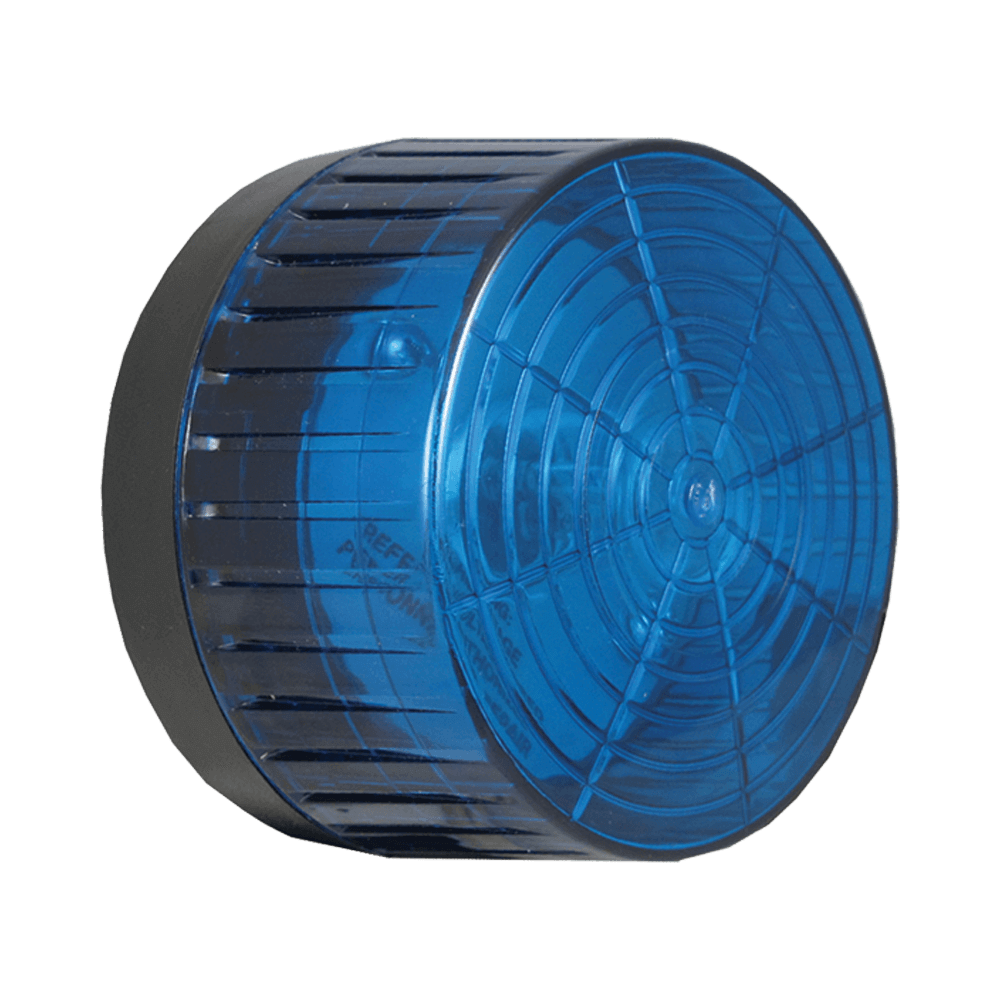

Viking SL-2 LED Strobe and/or Beacon Visual Indicator with Programmable Brightness and Flash Patterns

Viking SL-2 Features:

• Over 57,000 hour (6.5 year) light source life to 70% light output
• 6 Programmable Beacon and Strobe brightness settings
• Immune to shock and vibration
• Low current draw
• Shatter resistant blue polycarbonate lens
• For Enhanced Weather Protection version see SL-2-EWP
• Dimensions: 4.41" Diameter x 2.76"
• Manufacturer Warranty 2 Year Limited Warranty
• 4 Programmable Flash Patterns:
• Single Flash
• Double Flash
• Quad Flash
• Flicker Flash

• Viking SL-2 Applications:

  • High noise level areas where visual status is required
  • Signal personnel of equipment malfunctions
  • Warn personnel they are entering a restricted area

  • Viking SL-2 Specifications

    • Power: 10- 15VDC 0.90 Amp(Peak), 0.15 Amp(Avg) @ 15VDC. Note: Power supply not included. The SL-2 is compatible with Viking model PS-2A 12VDC power supply.
    • Maximum Wire Run Length with CAT-5 and PS-2 Power Supply:
      • 3 wires = 100 ft
      • 6 wires = 300 ft
    • Dimensions: 4.41″ diameter x 2.76″ (112mm diameter x 70mm)
    • Shipping Weight: 0.6 lbs (0.25 kg)
    • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
    • Humidity: 5% to 95% non-condensing
    • Strobe Flash Rate: 60 flashes per minute (default)
    • Maximum Strobe Light Output @ 15VDC:
      • Clear lens: 323 lumens
      • Amber lens: 242 lumens
      • Blue lens: 116 lumens
      • Red lens: 66 lumens
    • Connections: Three 9″ (22.9 cm) long leads, 26 AWG
