Viking Electronics

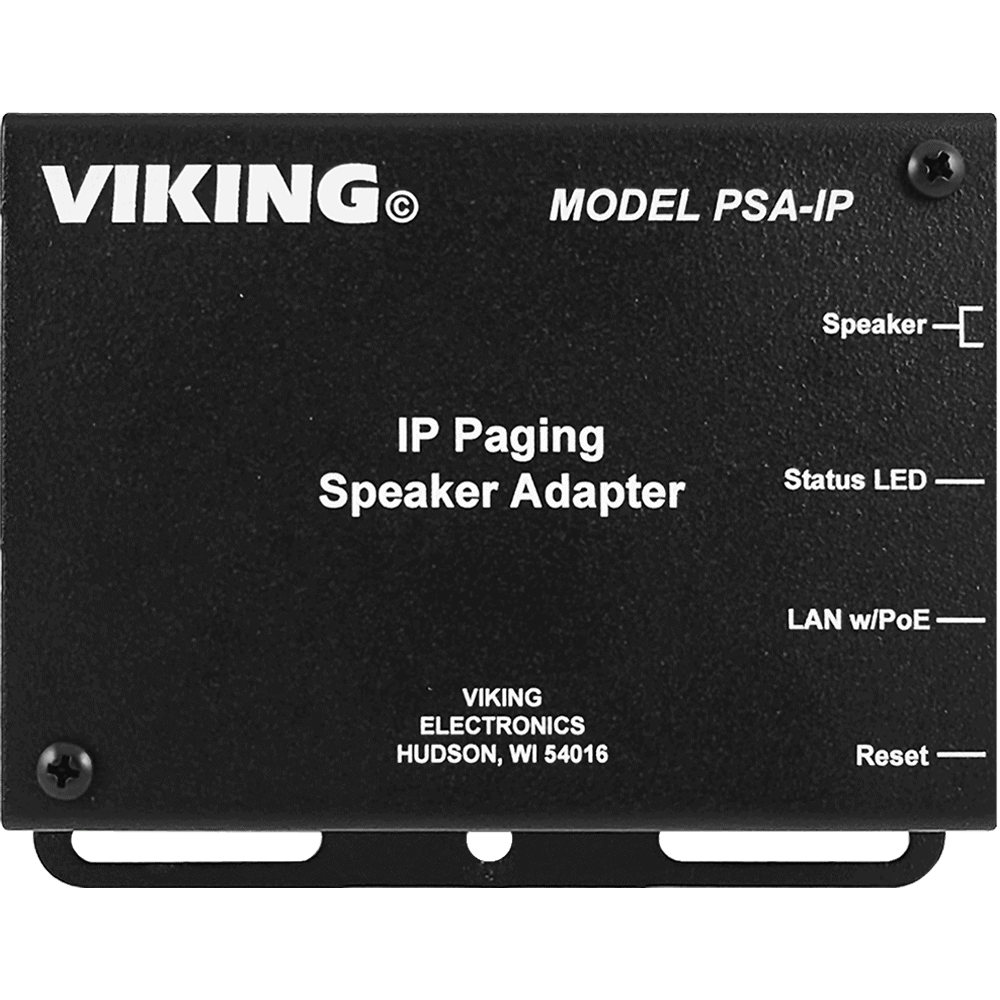

Viking PSA-IP Convert any 8 Ohm, 25V, or 70V Analog Paging Speaker to an IP Speaker

Viking PSA-IP Convert any 8 Ohm, 25V, or 70V Analog Paging Speaker to an IP Speaker

$210.44

SKU: PSA-IP

The Viking PSA-IP quickly converts any 8 ohm, 25V or 70V analog paging speaker into a SIP endpoint paging speaker. After the quick conversion the speaker can then be used for standard one-way SIP endpoint paging or one-way multicast paging.

View full details

Viking PSA-IP Features;

  • SIP compliant
  • PoE powered (class 3, <13 Watts)
  • Paging prioritization
  • Plays audio from standard multicast sources
  • SIP endpoint or multicast group member
  • Red call status LED indicator
  • Compatible with Polycom multicast paging
  • Built-in high efficiency 6 Watt class D amplifier
  • Can drive up to six 8 ohm analog speakers for greater coverage
  • SIP/Multicast: SIP page, SIP page and zoned multicast receive
  • Support for access code to prevent unwanted SIP calls
  • Hangs up on: busy signal, time-out, or touch tone command
  • Network remote speaker volume control
  • Mounting: Magnetically attach to speaker magnet or fasten to the 25/70V transformer mounting holes on speaker frame
  • Chassis protects circuitry against plenum dust
  • Diagnostics for testing speaker
  • Programmable pre-page alert tone
  • Viking PSA-IP Applications:

    • Provide background music and sound masking
    • Amplified SIP endpoint or multicast IP paging for:
      • schools
      • hospitals
      • retail stores
      • office spaces
      • and more
    • Background music for:
      • elevator applications
      • retail stores
      • office spaces
      • and more
  • Viking PSA-IP Specifications:

    • Power: PoE class 3 (<13 Watts)
    • Dimensions: Overall: 3.63” x 2.65” x 0.90” (92.2 mm x 67.3 mm x 22.9 mm)
    • Operating Temperature: -40° F to 140° F (-40° C to 60° C)
    • Humidity: 5% to 95% non-condensing
    • SIP Audio Codecs: G711u, G722 and G711a
    • Multicast Audio Codecs: G711u and G722
    • Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
    • Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A
    • Maximum Output Level: 105 dB SPL @ 1M (driving one 8 Ohm speaker with sensitivity of 96dB / 1W / 1M S.P. Level)
    • Amplifier: 6 Watt class D
    • Connections: (1) RJ45 10/100 Base-T, (4) Butt Connectors
    ;
