Viking Electronics

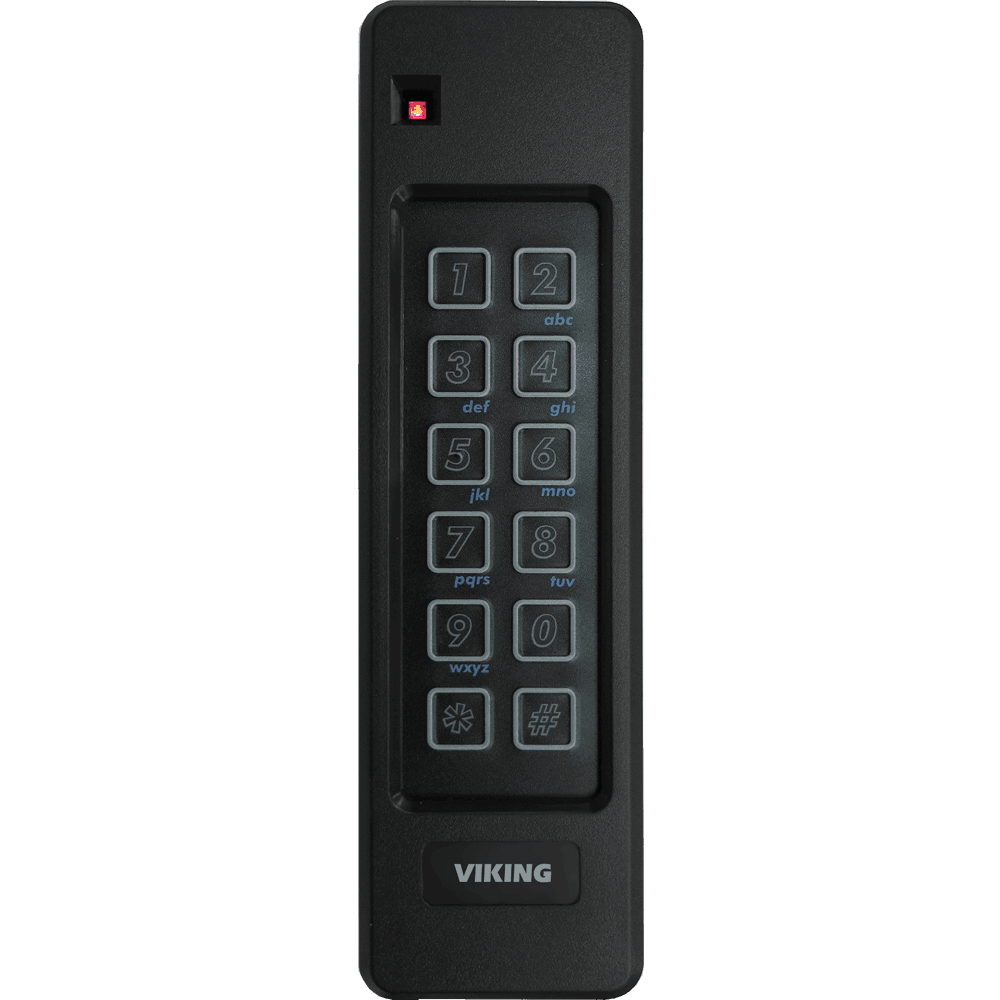

Viking PRX-5 Proximity Reader with Built-In Keypad

Viking PRX-5 Proximity Reader with Built-In Keypad



Usually ships in 5-7 business days

Viking’s PRX-5 is designed to vertically mounted to metal doors, window frames or any flat surface. The Viking PRX-5 ideal for applications requiring an access credential and/or personal identification number (PIN).

View full details

PRX-5 Features:

  • Read range of up to 6 inches with Proximity cards, 3” with PRX-FOB
  • Reader Format: 26-bit Wiegand
  • Keypad Formats: 26-bit Wiegand (default) and 8-bit burst
  • PRX-5 is designed to meet IP66 Ingress Protection Rating
  • Pigtail connection for easy installation
  • Red LED shows activity
  • Beep tones acknowledge key strokes
  • Programmable Facility Code stored in non-volatile memory (no batteries required)
  • Designed for outdoor use, the PRX-5 comes standard with Enhanced Weather Protection (EWP)
  • Technologies Supported: Viking PRX-C, PRX-C-ISO, PRX-FOB, LRT-4
  • Can be mounted directly to a metal surface

PRX-5 Specifications:

  • Power: 5-16V DC 70mA - average, 110mA - peak
  • Dimensions: 6.1” x 1.78” x 0.91” (155mm x 45mm x 23mm)
  • Environmental: -40°F to 149°F (-40°C to 65°C) with up to 100% humidity
  • Connections: 18” long pigtail leads, 22 gauge
  • Read Range: Up to 5 inches (152 mm)
  • Input Voltage: +5 to 16 VDC
  • Current Draw: 70 mA typical, 110 mA peak
  • LED Indicator: Four-state standard: red/green/amber/off
  • Audio Tone: Standard
  • Frequency: 125 KHz excitation
  • Reader Formats: Wiegand (26-bit industry standard) and
  • ABA Track II magnetic stripe (clock/data)
  • Keypad Formats: 8-Bit Burst and 26-Bit Wiegand (default)

Compatible Products:

  • AES-2000 Accessible Entry System
  • AES-2005 Accessible Video Entry System
  • C-4000 Apartment/Office Entry Controller
  • ES-1 Stand Alone Keyless Entry System
  • ES-3 Entry System Door Controller
  • K-1200-IP VoIP Entry phone, Keypad, 12 Number Auto Dialer, Keyless Entry
  • K-1700-IP VoIP Entry phone, Keypad, Auto Dialer, Keyless Entry
  • K-1900-8-IP VoIP Entry Phone with Handset and Keypad
  • PRX-C Proximity Card
  • PRX-C-ISO Thin Proximity Card
  • PRX-FOB Proximity Key Fob
