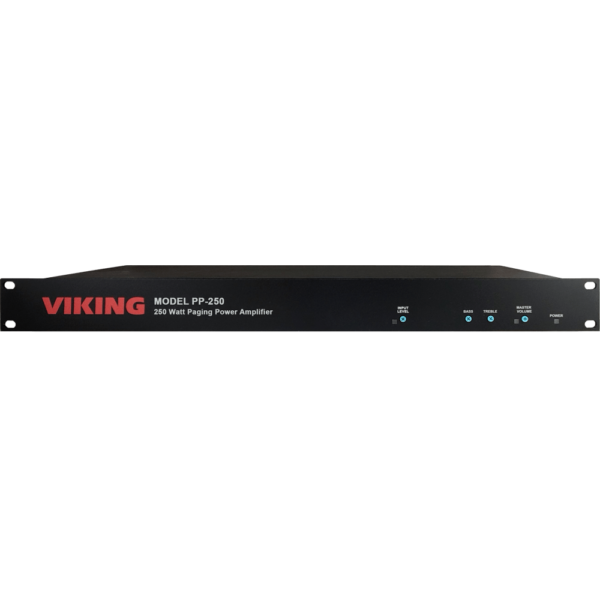

Viking PP-250 250 Watt 70V Paging Power Amplifier
Viking PP-250 250 Watt 70V Paging Power Amplifier
$499.95
SKU: PP-250Ships in 1-2 weeks
Couldn't load pickup availability
The PA-250-IP SIP/Multicast Paging Amplifier by Viking Electronics provides powerful, clear, and reliable paging for SIP-based VoIP phone systems. This 250-watt amplifier supports up to 250 70V speakers or 150 25V speakers, making it ideal for large installations like schools, hospitals, and retail stores. It features automatic level control, peak limiting, multiple protection modes, and integrated controls for bass and treble. The PA-250-IP is compatible with multicast background music and sound masking, offering a versatile and efficient solution for any paging needs.
Specifications
Power Requirements:
- Input Voltage: 100-240V AC, 50-60Hz
Dimensions and Weight:
- Dimensions: 19" x 1.75" x 6" (483mm x 44.5mm x 153mm)
- Shipping Weight: 5.3 lbs (2.4 kg)
Environmental:
- Temperature Range: 0°C to 32°C (32°F to 90°F)
- Humidity Range: 5% to 95% non-condensing
Paging Output:
- 70V Speakers: 250 Watt load
- 25V Speakers: 150 Watt load
Audio Codecs:
- SIP: G711u, G722, G711a
- Multicast: G711u, G722
Network Compliance:
- IEEE 802.3af
- SIP 2.0 RFC3261
- 100BASE-TX with auto crossover
Regulatory Compliance:
- CE, FCC Part 15, Canada ICES-003 Class A
Frequency Response:
- Range: 55 – 18,000 Hz (+/- 10 dB)
Connections:
- Ethernet: 1 RJ45 10/100 Base-T
- Auxiliary: 1 3.5mm
- Power: 2 IEC C8 AC power inlets
- Terminals: 11 removable cage clamp screw terminals
Power Cord:
- Type: Dual IEC C7 plugs “Y” power cord included
Features:
- Amplified SIP endpoint or multicast IP paging
- Multicast background music and sound masking
- Automatic peak limiting and multiple amplifier protection modes
- Programmable pre-page alert tone
- Individual and master volume controls
- 600 Ohm output for additional amplification
- Bass and treble controls
- LED indicators for power, audio level, and activity
- Tamper-resistant trim pots
- Night ring feature programmable for time of day and week
The PA-250-IP Paging Amplifier is an advanced, efficient, and reliable solution for any large-scale paging system requirements.
