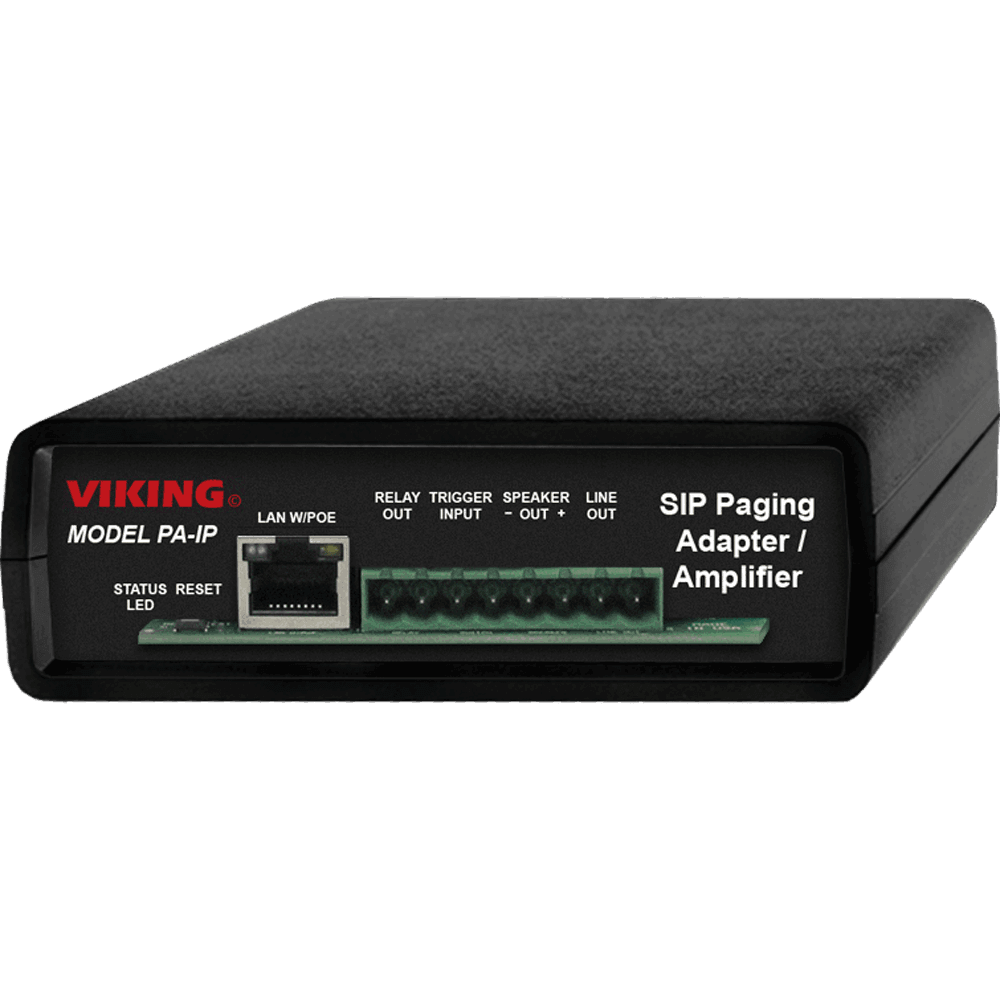

Viking PA-IP SIP Multicast Paging Adapter with Amplifier

The Viking model PA-IP SIP / Multicast Paging Adapter provides an interface between new VoIP phone systems (hardware or hosted/cloud based) and analog paging systems, eliminating the need for an ATA or FXS port.

Viking PA-IP Features:

• Paging prioritization
• Plays audio from multicast
• SIP endpoint or multicast group member
• Supports up to 10 multicast paging groups
• Red “Page/Status” LED indicator
• SIP compliant
• Network downloadable firmware
• Autoprovisioning via Viking programming software
• Built-in high efficiency 4 watt class D amplifier
• Relay for activating door locks, strobe lights, external amplifiers, etc.
• SIP/Multicast: SIP page, SIP page and zoned multicast stream, zoned multicast receive
• Support for access code to prevent unwanted SIP calls
• Line-level audio output for connecting to an external amplifier
• Network remote volume control
• Can drive additional external analog speakers for greater coverage

Viking PA-IP Applications:

• Amplified SIP endpoint or multicast IP paging for: schools, hospitals, retail stores, office spaces, etc.
• Provide multicast background music and sound masking
• IP phone system integration with traditional analog amplifier (e.g. single zone voice paging)

Viking PA-IP Specifications:

• Power: PoE class 3 (<13 Wats)
• Dimensions: 5” x 5.25” x 1.5” (127mm x 133mm x 38mm)
• Operating Temperature: -40°F to 140°F (-40° C to 60° C)
• Humidity: 5% to 95% non-condensing
• Audio Codecs: G711u, G722 and G711a (SIP only)
• Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASETX with auto cross over
• Sensitivity: 96dB / 1W / 1M S.P. Level
• Frequency Response: 55 – 18,000 Hz (+/- 10 dB)
• Connections: (1) RJ45 10/100 Base-T, (1) 8 position terminal block
