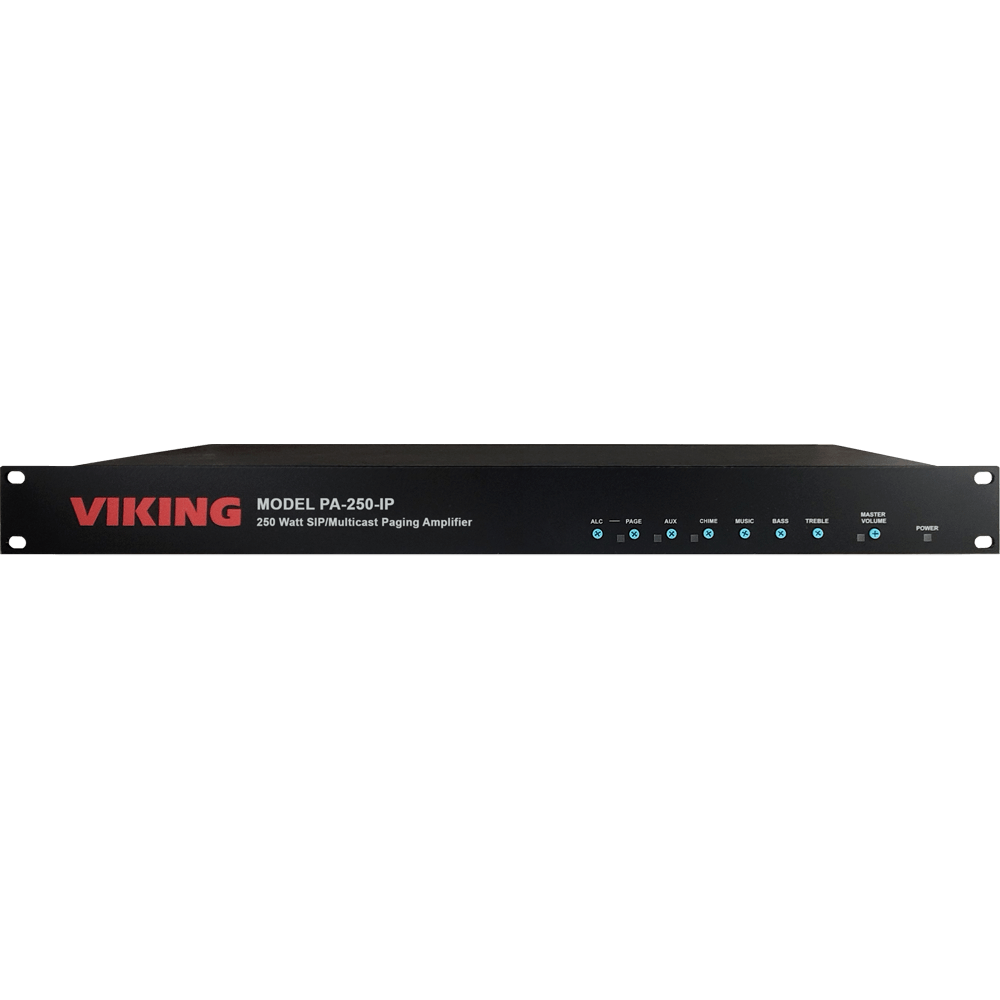

Viking PA-250-IP 250 Watt 70V SIP/Multicast Paging Amplifier

Viking PA-250-IP 250 Watt 70V SIP/Multicast Paging Amplifier

$770.57

SKU: PA-250-IP

Usually ships in 4 to 10 weeks

The Viking PA-250-IP SIP provides up to 250 watts of loud paging for SIP based VoIP phone systems (hardware or hosted/cloud based service provider). The PA-250-IP can be used for standard SIP endpoint paging or multicast paging.

View full details

Viking PA-250-IP Features:

      • SIP compliant
      • SIP endpoint or multicast group member
      • SIP/Multicast: SIP page, SIP page and zoned multicast receive
      • Plays audio from standard multicast sources
      • Compatible with Polycom multicast paging
      • Red “Page/Status” LED indicator
      • Network downloadable firmware
      • Support for access code to prevent unwanted SIP calls
      • Network remote volume control
      • Paging prioritization
      • Programmable pre-page alert tone
      • Powerful 70V amplifier drives up to 250 Watt load
      • Door chime trigger input
      • Auxiliary and background music inputs
      • Individual and master volume controls
      • Bass and treble controls
      • LEDs show audio level and activity
      • Provides loud ringing
      • 600 Ohm output to drive additional amplifiers
      • Adjustable Automatic Level Control
      • Peak limiter and multiple protection modes

    Viking PA-250-IP Applications

      • Amplified SIP endpoint or multicast IP paging for: schools, hospitals, retail stores, office spaces, etc.
      • Provide multicast background music and sound masking
      • Paging systems requiring 8 to 250 speakers
      • Installations that can utilize the below advantages of a 70V distributed audio system:
        – Allows for longer wire runs using smaller gauge speaker wire to save costs
        – Many more speakers can be connected on the same wire run to save costs
        – Each speaker’s volume can be individually set using its own power taps
      • Viking PA-250-IP Specifications

        • Power: 100V to 240V AC, 50 to 60Hz
        • Dimensions: approx. 19” x 1.75” x 6” (483mm x 44.5mm x 153mm)
        • Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
        • SIP Audio Codecs: G711u, G722 and G711a
        • Multicast Audio Codecs: G711u and G722
        • Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
        • Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A
        • Frequency Response: 55 – 18,000 Hz (+/- 10 dB)
        • Connections: (1) RJ45 10/100 Base-T, (1) 3.5mm, (2) IEC C8 AC power inlets, (11) removable cage clamp screw terminals
        • Power Cord: Dual IEC C7 plugs “Y” power cord included

        Viking PA-250-IP Certifications

        • Canada ICES
        • FCC Part 15
        • SIP

    VoIP SIP System Compatibility List:

    • 3COM VCX
    • 3CX
    • Aastra
    • Asterisk
    • Atcom
    • Avaya IP Office
    • BlueBox
    • Brekeke
    • Cisco Unified Communications Manager (CUCM)
    • Freeswitch
    • Grandstream
    • iptel.org
    • Kamailio
    • MetaSwitch
    • OfficeSIP
    • OpenSIPS
    • Panasonic
    • Samsung Communications Manager (SCM)
    • ShoreTel
    • Siemens Communications Server (SCS)
    • SIP Express Router (SER)
    • sip.antisip.com
    • Snom PBX
    • Sonus
    • Switchvox
    • Teksip
    • Toshiba
    • VoIP.ms
    • Vonage

    Product Manual
