Viking Electronics

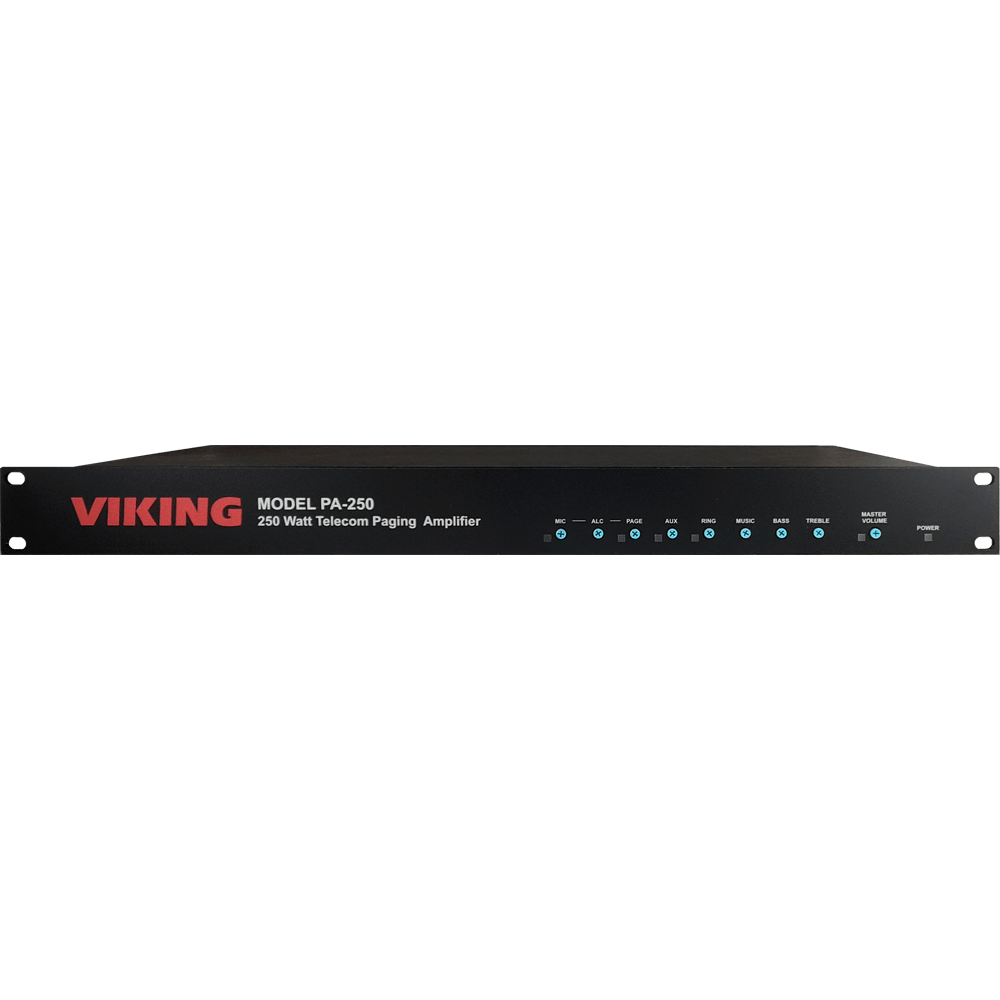

Viking PA-250 250 Watt Telecom Paging Amplifier

Viking PA-250 250 Watt Telecom Paging Amplifier

$617.26

SKU: PA-250

The Viking PA-250 is powerful enough to drive up to 250 - 70V speakers or paging horns. The Viking PA-250 is 3 times more efficient than old designs competitors use. A small 1U rack size made possible because the Viking PA-250 uses new amplifier technology. High efficiency means much less heat dissipation.

View full details

Viking PA-250 Features:

    • Powerful 70V amplifier drives up to 250 Watt load
    • Page from any analog telecom port, or a direct microphone
    • Auxiliary and Background Music inputs
    • Individual and Master volume controls
    • Bass and Treble controls
    • LEDs show audio level and activity
    • Programmable input priorities
    • Chose between 3 different chime sounds
    • Provides Loud Ringing / Night Bell
    • Night Transfer switch input
    • 600 Ohm output to drive additional amplifiers
    • Adjustable Automatic Level Control
    • Peak limiter and multiple protection modes
    • Manufacturer Warranty 2 Year Limited Warranty

    Viking PA-250 Applications

    • Paging systems requiring 8 to 250 speakers
    • Paging from virtually any POTS, Centrex PABX, digital or IP phone system’s analog port
    • Installations that can utilize the below advantages of a 70V distributed audio system:
      – Allows for longer wire runs using smaller gauge speaker wire to save costs
      – Many more speakers can be connected on the same wire run to save costs
      – Each speaker’s volume can be individually set using its own power taps

    Viking PA-250 Specifications:

    • Power: 100V to 240VAC 50 to 60Hz
    • Dimensions: approx. 19” x 1.75” x 6” (483 mm x 44.5 mm x 153 mm)
    • Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
    • Talk Battery: 42V DC
    • Paging Output: Capable of driving 250 watt load of 70V speakers
    • Connections: (1) 3.5 mm (1/8″) audio jack, (22) removable cage clamp screw terminals, (2) IEC C8 AC power inlets
    • Power Cord: Dual IEC C7 plugs “Y” Power Cord included

    Product Manual
