Viking Electronics

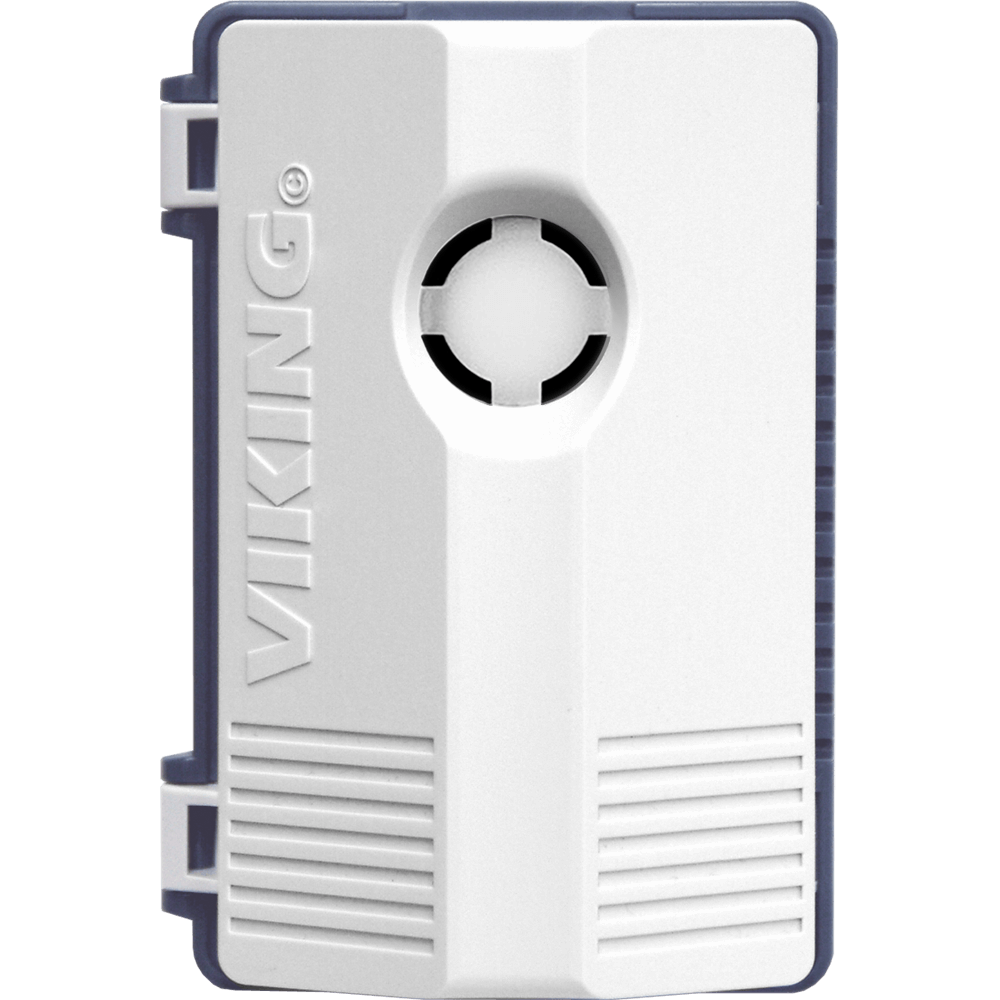

Viking LVR-1 Line Verification Relay

Viking LVR-1 Line Verification Relay

$69.30

SKU: LVR-1

View full details

Viking LVR-1 Features:

  • On-board 2 pole relay with both NO and NC contacts available
  • Phone line connection thru an RJ-11 or terminal block
  • Power connection thru a 2.1 mm plug or terminal block
  • Power supply included
  • DIP switch selectable delay times of 5, 10, 15, and 20 seconds
  • Wall mount housing with (2) #6×3/4 panhead screws

Viking LVR-1 Specifications:

  • Power: 120V AC/12V DC @ 500mA, UL listed adapter included
  • Dimensions: 4.38” x 2.97” x 1.38” (111mm x 76mm x 36mm)
  • Shipping Weight: 1.06 lbs (.48 kg)
  • Environmental: 32°F to 90°F (0°C to 32°C) with 5% to 95% non-condensing humidity
  • Relay Contacts: 30V DC@1A, 110V DC@0.3A, 125V AC@0.5A
  • Trip Point: 2VDC
  • Connections: (8) cage clamp screw terminals, (1) modular RJ-11 jack
