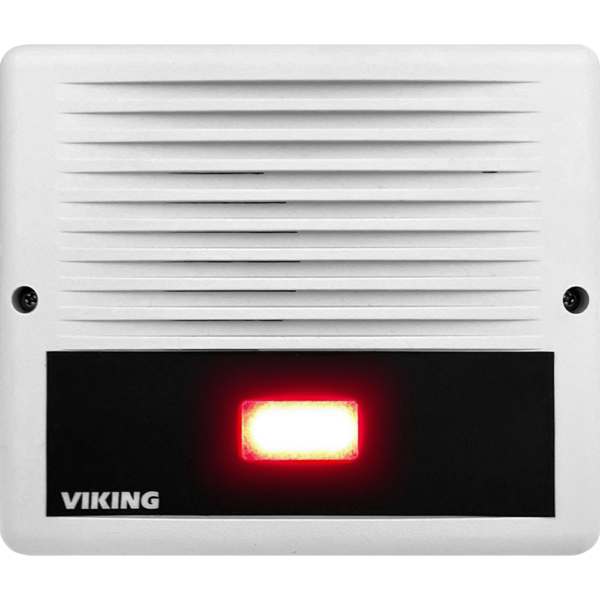

Viking SRL-1 Loud Ringer with Visual Ring Indication

Viking SRL-1 Loud Ringer with Visual Ring Indication

$134.50

SKU: SRL-1

Ships in 5-7 business days

Why pay for a dedicated line for your elevator/emergency phone or alarm panel?

The Viking LSR-1 Line Seizure Relay allows the user to share an existing phone line with an emergency phone or other priority alarm device. This can save hundreds of dollars a year over leasing a dedicated phone line.

The VikingLSR-1 can be used on any C.O. line or analog PABX/KSU station.

Important: When the emergency device is in use, the phone line is not available for normal use. Any additional emergency calls will have to be made on another phone line. For this reason the LSR-1 is not recommended for single line applications.

Note: Connecting more than one set of microphone and speaker combinations to the LSR-1 may infringe on US Patent 5,386,463.

View full details

Viking LSR-1 Features:

  • Bright flashing ring indication LED’s visible over 100 feet
  • Loud ringing from an analog line
  • Loud ringing from a dry contact closure
  • Choose one of four ringing sounds:
    • Electronic warble (traditional loud ringer)
    • Double gong (two identical “gong” tones)
    • Quadruple chime (four descending chime tones)
    • Electronic Bell
  • Adjustable volume control
  • Provides a door chime tone for either a door bell, a door open sensor, or a “Push for Assistance” button
  • Test button for setting volume
  • External 8-Ohm speaker can be added
  • Power supply included
  • Manufacturer Warranty
    2 Year Limited Warranty

Viking LSR-1 Applications:

  • Single line loud ringing
  • Night bell ringing
  • Business/offices/small warehouses
  • Floating employee
  • “Push Button for Assistance” chime
  • Push button doorbell

Viking LSR-1 Specifications:

  • Power: 120V AC / 12V DC, 500mA UL listed adapter provided
  • Dimensions: 5.5” x 4.5” x 1.7” (140mm x 115mm x 43mm)
  • Environmental: 32°F to 90°F (0°C to 32°C) with 5% to 95% noncondensing humidity
  • Maximum Sound Pressure: 90 db @ 1 meter (nominal), 105 db with added 25AE Paging Horn
  • Connections:  6 cage clamp screw terminals
