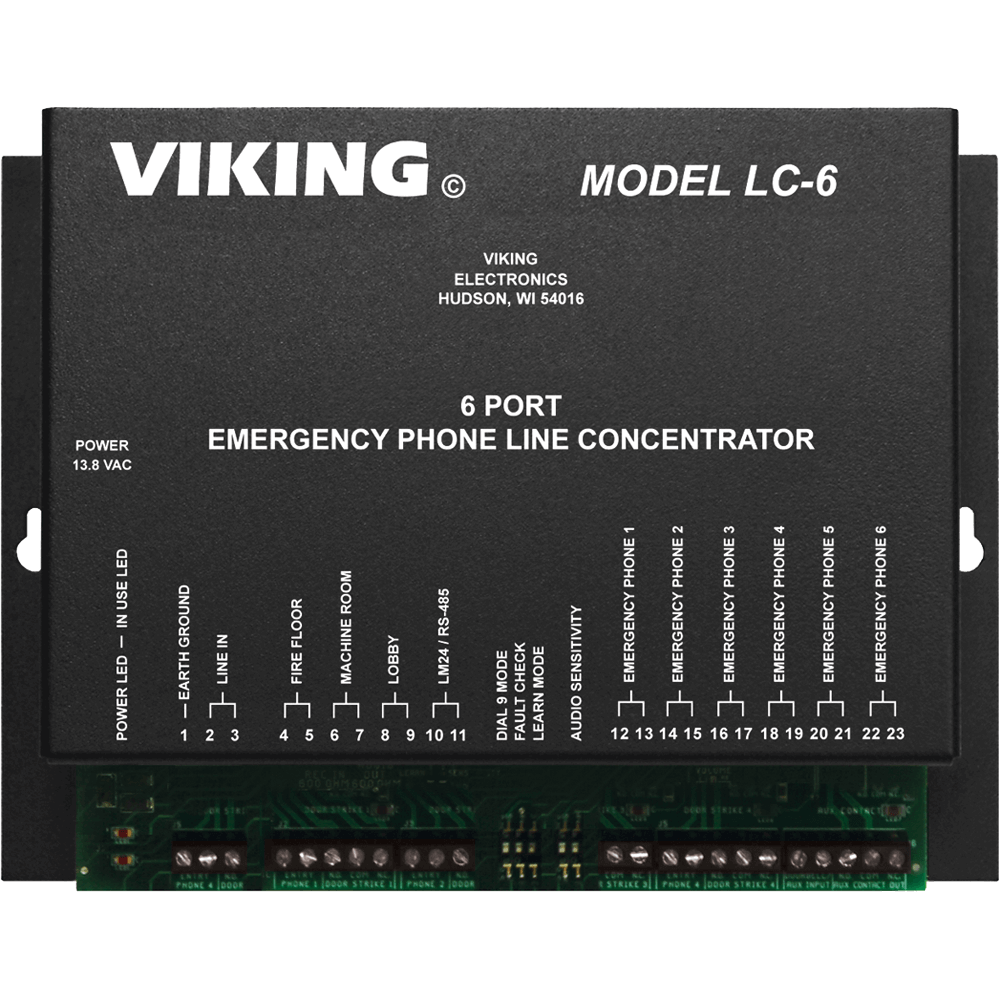

Viking LC-6 6 Port Line Concentrator for Emergency Phones

Viking LC-6 6 Port Line Concentrator for Emergency Phones



Usually ships in 3-4 weeks

The Viking LC-6 eliminates the monthly charges for a dedicated line to multiple elevators. It is designed to be used with Viking's E-1600A series elevator phones. You can connect up to 6 emergency phones which can communicate with authorized personnel on three other phones in the same building. Add a telephone line to communicate outside the building. The emergency phone can initiate a internal or outbound call or both. Any other phones that are activated will be bridged with authorized personnel, thus fulfilling ASME A17.1 requirements.

View full details

LC-6 Features:

  • Connects up to (6) emergency phones
  • Communicate with local and remote authorized personnel
  • Automatic answering of inbound calls
  • Touch Tone conferencing
  • Separate Fire Floor phone port
  • Machine Room phone and Lobby phone ports
  • Accommodates the re-dialing feature of the
  • Viking 1600A Series phones
  • Programmable daily line verification check
  • Manufacturer Warranty: 2 Year Limited Warranty

Viking LC-6 Applications:

  • Elevator phones
  • Emergency phones
  • Area-of-Refuge phones
  • E-30 courtesy phones

Viking LC-6 Specifications:

  • Power: 120V AC/13.8V AC UL listed adapter provided
  • Dimensions: 8.25” x 6.25” x 1.75” (210 mm x 159mm x 45 mm)
  • Environmental: 32 F to 90 F (0 C to 32 C) with
  • 5% to 95% non-condensing humidity
  • Maximum LM-24D Wire Length: 500 ft(152m) with #24 gauge wire
  • Maximum LV-1K Wire Length: 2000 ft (610m) with #24 gauge wire
  • Battery Backup: Greater than 4 hours when using
  • TRIPP-LITE model INTERNET550U (not included)
  • Connections: 25 screw terminal block positions, Inc. is a leading provider of Viking Electronics phone systems and equipment. We specialize in business phones and business phone systems for small to large companies; with phone systems for any application. We sell many of the brands in the IT, Telecom, Datacom, Electrical, and Industrial spaces.
