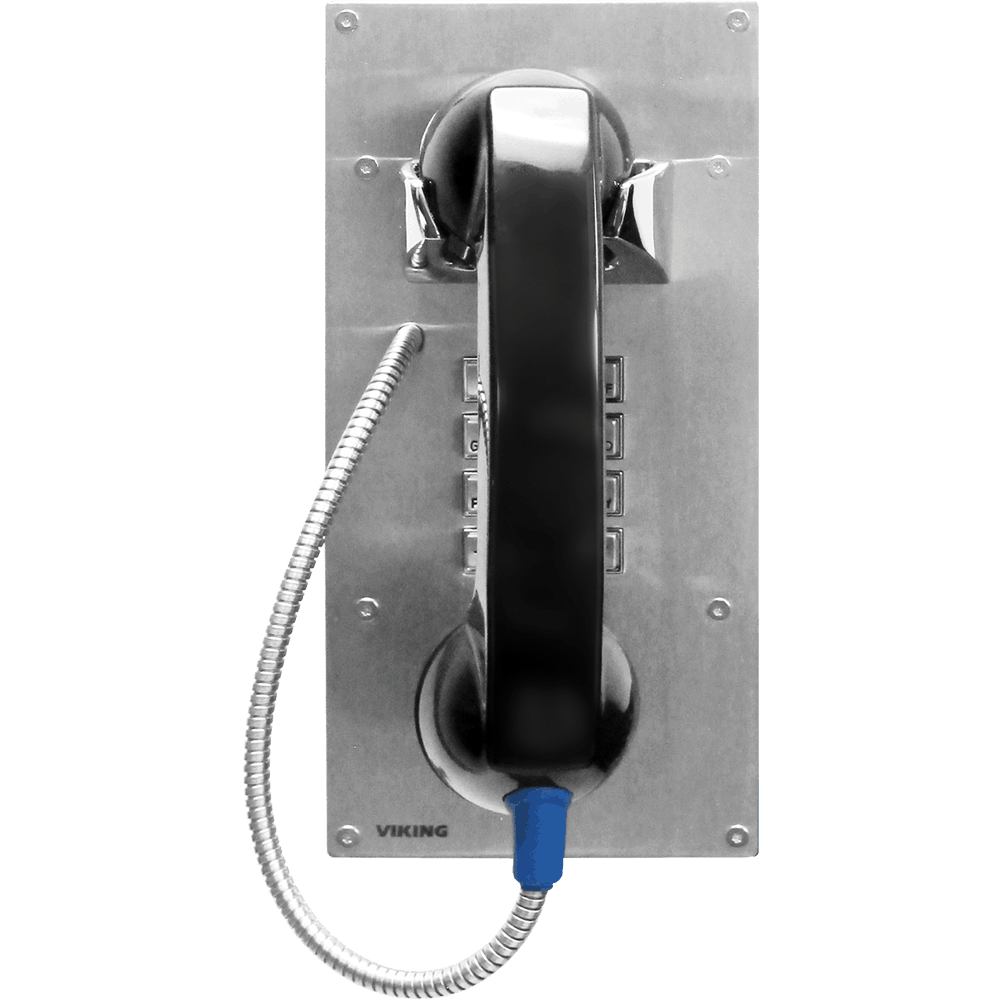

Viking K-1900-812L Hot-line Panel Phone With 12" Armored Cable, Lanyard, And Keypad

Viking K-1900-812L Hot-line Panel Phone With 12" Armored Cable, Lanyard, And Keypad


SKU: K-1900-812L

The K-1900-812L hot-line panel phone can either auto-dial a phone number each time the handset is lifted, be used as a multi-number auto-dialer, or be used as a standard touch tone phone. The hot-line unit will touch tone or pulse dial and will not auto-dial on incoming calls.

The K-1900-812L hot-line phone features a 12″ armored cable with an internal stainless steel lanyard for increased strength and vandal resistance. The phone housing consists of a heavy gauge stainless steel panel, metal touch tone keypad, armored cable, heavy duty handset, and all metal cradle. The K-1900-812L hot-line panel phone can be easily touch tone programmed at the shop or installation site. All programming is stored in non-volatile memory.

For outdoor installations where the unit is exposed to precipitation or condensation, use model K-1900-812L-EWP. For more information on Enhanced Weather Protection (EWP)

View full details

Viking K-1900-812L Features:

  • Vandal Resistant Features:
    • 12 gauge (0.105″ thick) 316 stainless steel panel with permanent laser etched graphics
    • Armored handset cable
    • Metal cradle
    • Heavy duty metal keypad
    • Hex drive mounting screws
  • Weather Resistant Features:
    • Marine grade 316 stainless steel faceplate and screws
    • Internally sealed keypad
  • Auto dials one programmable speed dial number (up to 32 digits)
  • Multi-number dialer mode adds 5 speed dial numbers (up to 16 digits)
  • Touch tone or pulse dialing
  • Non-volatile memory, no batteries required
  • Operates on analog PABX and key system extensions or analog Centrex and CO lines
  • Programmable 6 digit security code
  • Touch tone programmable
  • Armored 12″ handset cable with an internal stainless steel lanyard for additional cable strength
  • Programmable pre-dial pause
  • Blocks fraudulent calls from hand held pocket dialers
  • Limited toll restriction in standard touch tone phone mode
  • Hearing aid compatible amplified handset with sealed push button volume control
  • Programmable default volume level
  • Programmable volume control disable
  • Zinc plated steel rough-in box with (2) 0.75″ conduit knockouts included
  • Flush mount using the included rough-in box or surface mount using a Viking VE-5X10 Surface mount box (not included)


  • Catalog sales
  • Kiosks
  • Courtesy and customer service phones
  • Automated tellers (ATMs)
  • Hot-Line reservation phones
  • Security and emergency phones
  • Replaces leased ringdown circuits
  • Gate / entrance communication in noisy locations (diesel trucks, factory noise, etc.)


Power Telephone line powered (20V DC/18mA minimum)
Phone Dimensions 5.0″ x 10.0″ x 4.54″ (127mm x 254mm x 113mm)
Overall Dimensions 5.0″ x 10.0″ x 5.53″ (127mm x 254mm x 141mm)
Shipping Weight 5 lbs (2.3 kg )
Operating Temperature -30°F to 140°F (-34°C to 60°C)
Humidity – Standard Model 5% to 95% non-condensing
Handset Cable Length 12” to 12.7” (31 cm to 33 cm)
Touch Tone Dial Speed Normal = 120ms on/off, Fast = 50ms on/off
Pulse Dial Speed Normal = 10 pps, Fast = 20 pps
Connections (2) gel-filled butt connectors, Inc. is a leading provider of Viking Electronics phone systems and equipment. We specialize in business phones and business phone systems for small to large companies; with phone systems for any application. We sell many of the brands in the IT, Telecom, Datacom, Electrical, and Industrial spaces.
