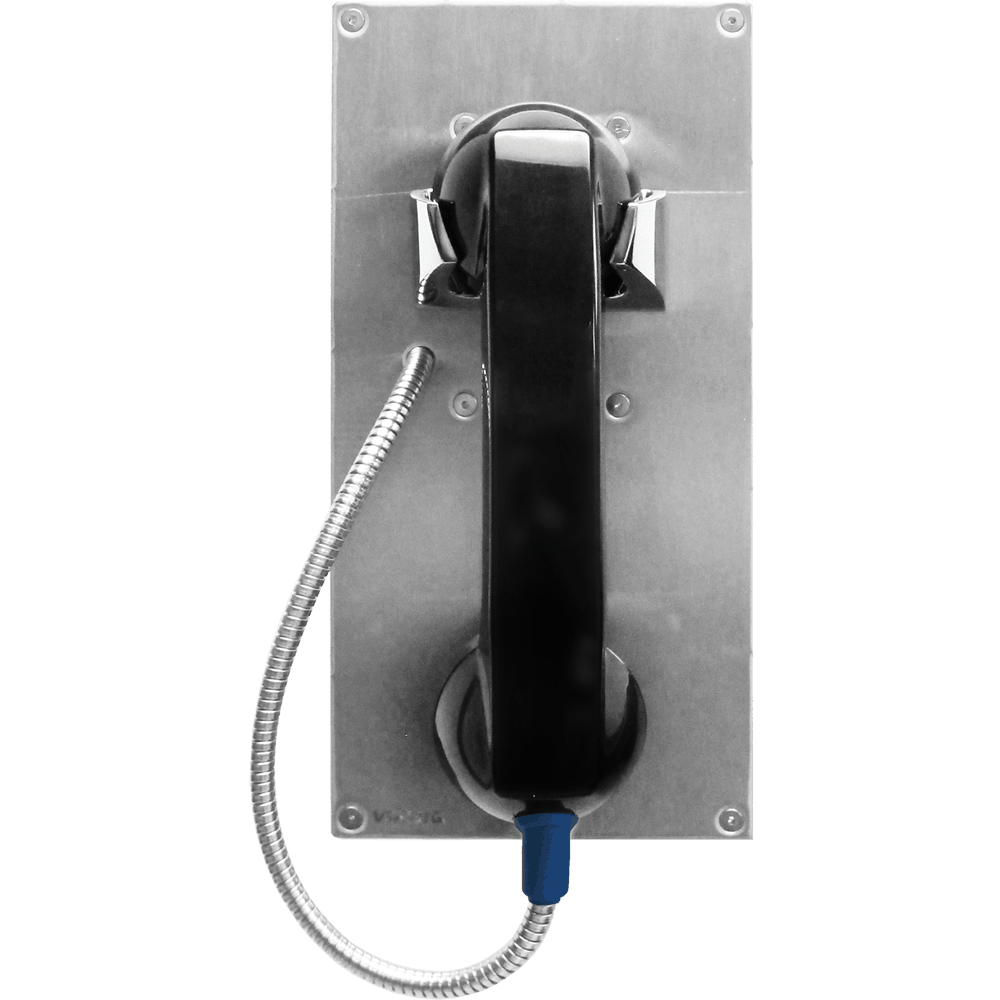

Viking K-1900-712L-EWP Hot-line Panel Phone With 12” Armored Cable, Lanyard, And Enhanced Weather Protection
Viking K-1900-712L-EWP Hot-line Panel Phone With 12” Armored Cable, Lanyard, And Enhanced Weather Protection
$471.95
SKU: K-1900-712L-EWP
The K-1900-712L-EWP hot-line panel phone will auto-dial a 1-32 digit programmable phone number each time the handset is lifted. The unit will touch tone or pulse dial and will not auto-dial on incoming calls.
The K-1900-712L-EWP hot-line phone features a 12″ armored cable with an internal stainless steel lanyard for increased strength and vandal resistance. The phone housing consists of a heavy gauge stainless steel panel, a heavy duty handset, and an all metal cradle. The K-1900-712L-EWP can be easily touch tone programmed at the shop or installation site. All programming is stored in non-volatile memory.
The K-1900-712L-EWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products are designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming. For more info on EWP, see DOD 859.
Couldn't load pickup availability
Viking K-1900-712L-EWP Features:
- Vandal Resistant Features:
- 12 gauge (0.105″ thick) 316 stainless steel front panel
- Permanent laser etched graphics
- Metal handset cradle
- Armored handset cable with internal stainless steel lanyard
- Hex drive mounting screws
- Weather Resistant Features:
- Marine grade 316 stainless steel faceplate
- Marine grade 316 stainless steel hex drive screws
- Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating
- Gaskets
- Auto dials one programmable speed dial number (up to 32 digits)
- Touch tone or pulse dialing
- Non-volatile memory (no batteries required)
- Operates on analog PABX and key system extensions or analog Centrex and CO lines
- Programmable 6 digit security code
- Touch tone programmable
- 12” armored handset cable with internal stainless steel lanyard for added strength and vandal resistance
- Programmable pre-dial pause
- Blocks fraudulent calls from hand held pocket dialers
- Hearing aid compatible amplified handset with sealed push button volume control
- Programmable default volume level
- Programmable volume control disable
- Equipped with Enhanced Weather Protection (EWP) – EWP products are designed to meet IP66 Ingress Protection Rating.
- Flush mount using a standard double-gang box (not included)
- Surface mount using an optional Viking VE-5×10 surface mount box (not included)
APPLICATIONS
- Catalog sales
- Kiosks
- Courtesy and customer service phones
- Automated tellers (ATM’s)
- Hot-line reservation phones
- Security and emergency phones
- Replaces leased ringdown circuits
- Gate/entrance communication in noisy locations (diesel trucks, factory noise, etc.)
SPECIFICATIONS
| Power | Telephone line powered (20V DC/18mA minimum) |
|---|---|
| Phone Dimensions | 5.0″ x 10.0″ x 5.18″ (127mm x 254mm x 132mm) |
| Overall Dimensions | 5.0″ x 10.0″ x 5.28″ (127mm x 254mm x 134mm) |
| Shipping Weight | 4 lbs. (1.8 kg ) |
| Operating Temperature | -30°F to 140°F (-34°C to 60°C) |
| Humidity | Up to 100% condensing |
| Handset Cable Length | 12” to 12.7” (31 cm to 33 cm) |
| Touch Tone Dial Speed | Normal = 120ms on/off, Fast = 50ms on/off |
| Pulse Dial Speed | Normal = 10 pps, Fast = 20 pps |
| Connections | (2) gel-filled butt connectors |
