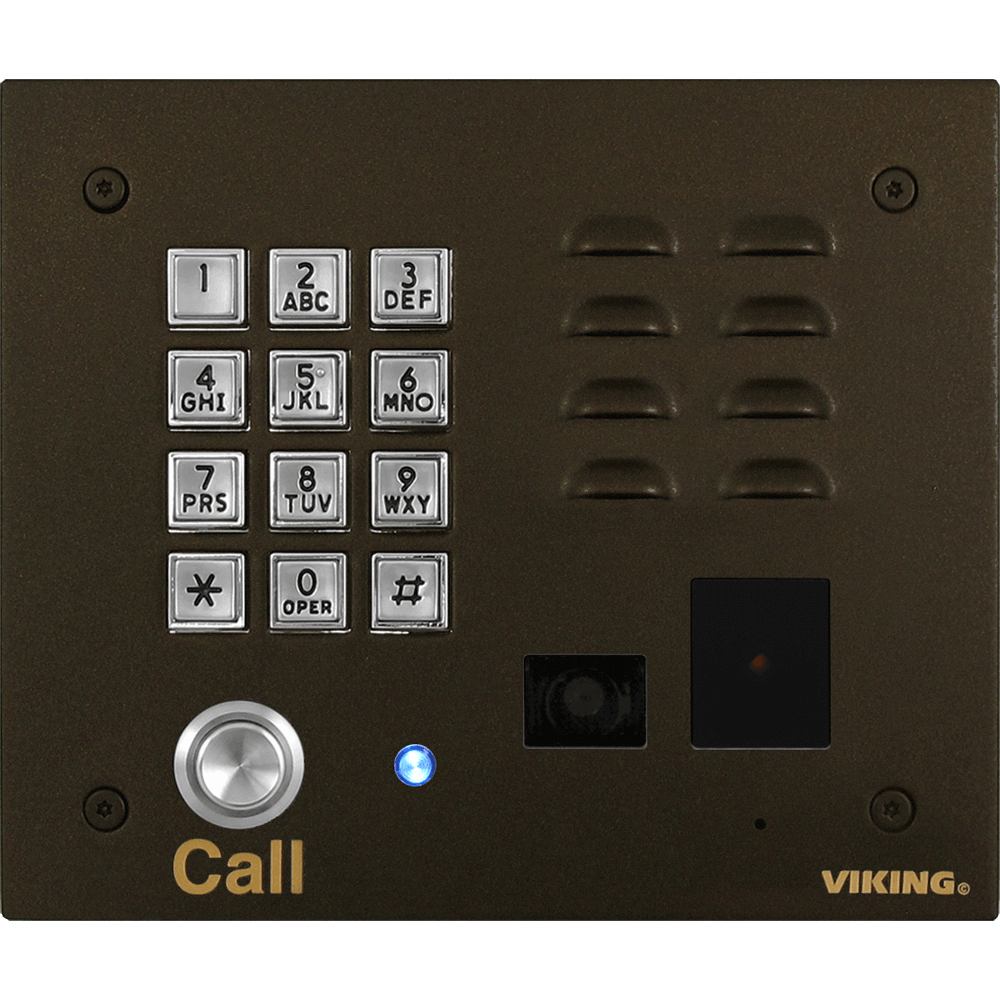

Viking K-1775-BN-IPEWP Oil Rubbed Bronze VoIP Stainless Steel Entry Phone with Built-In Entry System Proximity Card Reader and Analog Color Video Camera

Viking K-1775-BN-IPEWP Oil Rubbed Bronze VoIP Stainless Steel Entry Phone with Built-In Entry System Proximity Card Reader and Analog Color Video Camera



View full details

The K-1775-BN-IPEWP Series Oil Rubbed Bronze entry phones provide a tough and attractive handsfree phone for apartment, and residential door entry or applications requiring a vandal resistant VoIP speaker phone with built-in proximity card reader and Analog Color Video Camera.

View IP SIP System:

Compatibility List

K-1775-BN-IPEWP Features:
  • Built-in high resolution analog NTSC color video camera with wide viewing angle tilt/swivel adjustments and wide operating temperature of -40°F to 140°F
  • Built-in 125KHz 26-bit Wiegand proximity card reader with LED and beep card read confirmation and EWP board protection
  • Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with permanent laser etched graphics, speaker/mic screen, heavy duty metal keypad and “Call” button and T-10 Security Torx drive mounting screws
  • Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws and push button switch
  • Switch internally sealed per IP67
  • Mylar speaker, Self-draining mic mount, Faceplate, mic and speaker gaskets
  • Compatible with the following Viking proximity cards and fobs: PRX-C, PRX-C-ISO and PRX-FOB
  • Available in 2 standard faceplate finishes: 316 brushed stainless steel with laser etched graphics or oil rubbed bronze powder paint with copper metallic graphics
  • Two sets of SPDT 2 Amp relay contacts for door/gate or camera control
  • Optional RC-4A for Secure Remote Relay Control
  • Blue “Call /Status” LED indicator
  • SIP compliant (see pg 2 for list of compatible IP-PBX phone systems)
  • PoE powered (class 2, <6.5 watts)
  • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
  • Network downloadable firmware
  • Programmable to speed dial up to 250 numbers
  • Cycles to roll over phone number on busy or no-answer
  • Program up to 1,000 keyless entry codes and/or proximity card numbers
  • Keyless entry codes and proximity card numbers can be programmed to only allow access at specific times and day of week
  • Call logging with time and date stamp
  • Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating
  • Hangs up on busy signal, time-out or touch tone command
  • Extended temperature range (-40°F to 140°F)
  • Volume adjustments for microphone and speaker
  • Selectable auto-answer feature for monitoring
  • Zinc plated steel rough-in box included
  • Optional VE-6X7 Surface Mount Box available
  • Optional VE-LIGHT kit to illuminate the front panel at night
  • Self diagnostic reports via email (testing com, mic, speaker & switch)

  • Power: PoE class 2 (<6.5 watts)
  • Dimensions: see Installation and Specifications
  • Operating Temperature: -40° C to 60° C (-40°F to 140°F)
  • Humidity - Standard Products: 5% to 95% non-condensing
  • Humidity - EWP Products: Up to 100%
  • Audio Codecs: G711u, G711a, G722 Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over Connections: (1) RJ45 10/100 Base-T, (10) gel-filled butt connectors, Inc. is a leading provider of Viking Electronics phone systems and equipment. We specialize in business phones and business phone systems for small to large companies; with phone systems for any application. We sell many of the brands in the IT, Telecom, Datacom, Electrical, and Industrial spaces.
