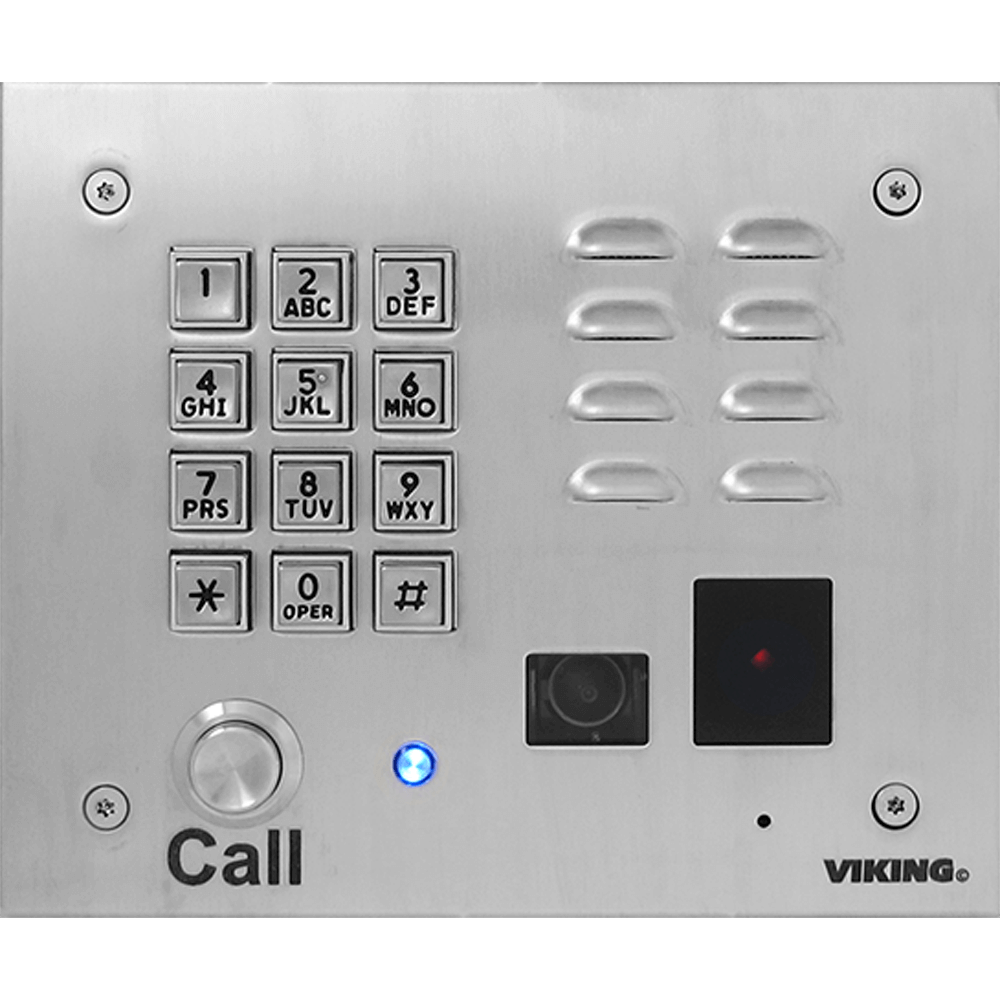

Viking K-1775-3-EWP Stainless Steel Handsfree Video Entry Phone with Built-In Keypad and Proximity Card Reader

The Viking K-1775-3 Series video entry phones provide a durable and attractive hands-free phone for apartment and residential door entry or applications requiring a vandal resistant speaker phone with integrated color video camera and 125 KHz Proximity Card Reader.

Viking K-1775-3 Features:

• Apartment entry phone when used with the K-1900-3 Apartment Entry Dialer or C-4000 Apartment/Office Entry Controller or C-3000 Apartment Entry Controller
• Use with a Viking C-500 to control 1 or 2 (expandable to 8) K-1700’s and door/gate control on a single phone line
• Use with a Viking C-2000B to control 1 to 4 K-1775’s and door/gate control on a single phone line
• Courtesy and customer assistance phone
• Automated teller (ATM) phone
• Security or emergency phone
• Hot-Line phone when used with the K-1900-5 Hot-Line Dialer
• Two sets of SPDT 2 Amp relay contacts for door/gate or camera control
• Kiosk phone with (100 number speed dialing) when used with the K-1900-9 Multi-Number Dialer
• Built-in 125KHz 26-bit Wiegand proximity card reader with LED and beep card read confirmation and EWP board protection
• Built-in high resolution color video camera with wide viewing angle, tilt/swivel adjustments, and wide operating temperature of -30° F to 150° F
• Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with permanent laser etched graphics, stainless steel “Call” button, heavy duty metal keypad and T-10 Torx Security mounting Screws, scratch resistant powder coating (K-1775-3-BN)
• Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws and push button switch. Switch internally sealed per IP67
• Mylar speaker, Self-draining mic mount, Faceplate, mic and speaker gaskets, Weather Resistant powder paint (K-1775-3-BN)
• K-1775-3-EWP is designed to meet IP66 Ingress Protection Rating
• Available in 2 standard faceplate finishes: 316 brushed stainless steel or oil rubbed bronze
• Blue “in use” LED
• Telephone line powered
• Volume adjustments for microphone and speaker
• Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder tone, maximum call time out and 40 second silence time out
• Selectable auto-answer feature for monitoring
• Selectable push button disconnect
• Volume adjustments for microphone and speaker
• Selectable auto-answer feature for monitoring
• Zinc plated steel rough-in box with (2) 3/4” conduit knockouts
• Optional VE-6X7 Surface Mount Box available
• Selectable VOX switching speed

Specifications:

• Power: Telephone line powered 20V DC/20mA minimum
• Dimensions: Overall: 140mm x 165mm x 66mm (5.5” x 6.5” x 2.6”) , Rough-in box: 114mm x 140mm x 64mm (4.5” x 5.5” x 2.5”)
• Environmental: -29°C to 54°C (-20°F to 130°F)
• Humidity - K-1770-3: 5% to 95% non-condensing
• Humidity - K-1770-3-EWP: Up to 100% condensing
• Speaker Volume: Approximately 70 db maximum @1m
• Connections: Gel-filled tip and ring connectors
• CPC Disconnect Time: 500ms minimum
• REN #: 0.5 A

Camera Specifications:

• Power: 6-22V DC 150mA (12V DC UL Listed adapter included)
• Image Sensor: 1/4” color CMOS • Video Output: 1 VP-P composite, NTSC, 75 ohms
• Resolution: 420 lines (640 x 480 @ 30fps / 307,200 pixels)
• Sensitivity: 0.025 LUX (50 IRE) F 1.2 3200K
• Lens: 2.1mm, conical pinhole
• FOV(Field of View): 80° Horizontal, 60° Vertical, 100° Diagonal
• Tilt/Swivel Adjustment: Vertical +/- 20°, horizontal +/- 30° (see Diagram A)
• IR Compatibility: This camera is equipped with an OLP (Optical Low Pass) filter to maintain correct video color in outside applications
• The standard camera is NOT compatible with IR illuminators
• If IR illumination is required, you will need to replace the exisiting camera with a Viking model VCAM-1IR
• Maximum Wire Run Length: See product manual (see manual)

Proximity Card Reader Specifications:

• Power: 5 to 14V DC @ 60mA maximum
• Maximum Cable Length: 500 ft 24 Awg stranded shielded (Belden 9537)
• Frequency: 125KHz
• Format: 26 bit Wiegand
• Read Range: 1.25” to 2.0”
• Technologies Supported: Viking PRX-C, PRX-C-ISO, PRX-FOB
• Transducer: Beeps during card read
• LED: Red, turns off during card read
• Humidity: Up to 100% (fully potted EWP)
• Operating Temperature: -34° C to 65° C (-30° F to 150° F)
