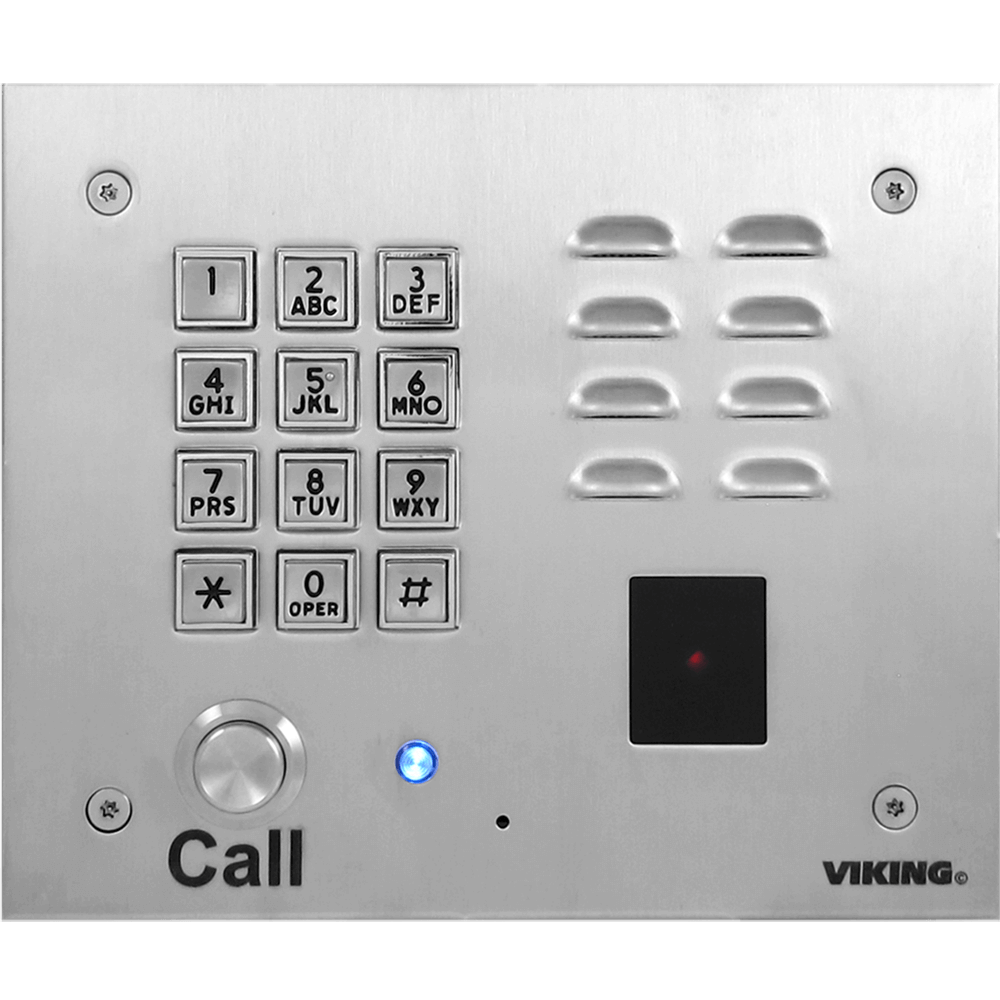

Viking K-1770-3-EWP Stainless Steel Vandal Resistant Entry Phone with Keypad and Proximity Reader

Viking K-1770-3-EWP Stainless Steel Vandal Resistant Entry Phone with Keypad and Proximity Reader

$872.72

SKU: K-1770-3-EWP

Usually ships in 7 to 10 days!

The Viking K-1770-3-EWP is a tough and attractive speaker phone designed to provide audio communication and proximity entry. Ideal for apartment and residential door entry applications. The Viking K-1770-3 features a built-in 125 KHz proximity card reader and microphone and speaker volume controls. Selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed. The Viking K-1770-3 proximity card reader outputs industry standard 26-bit Wiegand data, allowing it to be used with a Viking ES-1 door controller or any 26-bit Wiegand compatible controller.

View full details

Viking K-1770-3-EWP Features:

  • Built-in 125KHz 26-bit Wiegand proximity card reader with LED, beep card read confirmation, and EWP board protection
  • Compatible with the following Viking Proximity Cards and Fobs: PRX-C, PRX-C-ISO and PRX-FOB
  • Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with permanent laser etched graphics, stainless steel “Call” button, heavy duty metal keypad and T-10 Torx security mounting screws, scratch resistant powder coating (K-1770-3-BN)
  • Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws and and push button switch. Switch internally sealed per IP67. Mylar speaker. Self-draining mic mount. Faceplate, mic and speaker gaskets. Weather Resistant powder paint (K-1770-3-BN)
  • K-1770 -3-EWP is designed to meet IP66 Ingress Protection Rating (see DOD 859 for more information)
  • Available in 2 standard faceplate finishes: 316 brushed stainless steel or oil rubbed bronze powder paint
  • Blue “in use” LED
  • Telephone line powered
  • Volume adjustments for microphone and speaker
  • Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder tone, maximum call time out and 40 second silence time out
  • Selectable auto-answer feature for monitoring
  • Selectable push button disconnect
  • Zinc plated steel rough-in box with (2) 3/4” conduit knockouts
  • Optional VE-6x7 Surface Mount Box available
  • Optional VE-LIGHT to illuminate the front panel at night

Viking K-1770-3-EWP Applications:

  • Apartment entry phone when used with the K-1900-3 Apartment Entry Dialer or C-4000 Apartment/Office Entry Controller or C-3000 Apartment Entry Controller
  • Use with a Viking C-500 to control 1 or 2 (expandable to 8) K-1770’s and door/gate control on a single phone line
  • Use with a Viking C-2000B to control 1 to 4 K-177 0’s and door/gate control on a single phone line
  • Courtesy and customer assistance phone
  • Automated teller (ATM) phone
  • Use with a Viking ES-1 for proximity card reader door control
  • Provide unique front and back door chimes and paging when use with a Viking SLP-1 or SLP-4 and C-2000B
  • Kiosk phone with (100 number speed dialing) when used with the K-1900-9 Multi-Number Dialer
  • Use with Viking’s Proximity Cards: PRX-C, PRX-C-ISO, PRX-FOB

Viking K-1770-3-EWP Specifications:

  • Entry Phone Power: Telephone line powered 20V DC/20mA minimum
    Proximity Card Reader Power: 5 to 14V DC @ 60mA maximum
    Dimensions: Overall: 5.5” x 6.5” x 2.6” (140mm x 165mm x 66mm),
    Rough-in box: 4.5” x 5.5” x 2.5” (114mm x 140mm x 64mm)
    Shipping Weight: 3.5 lbs (1.6 kg)
    Environmental: -30°F to 150°F (-34°C to 65°C)
    Humidity - K-1770-3: 5% to 95% non-condensing
    Humidity - K-1770-3-EWP: Up to 100% condensing
    Speaker Volume: Approximately 70 db maximum @1m
    CPC Disconnect Time: 500ms minimum
    REN #: 0.5 A
    Connections: Gel-filled tip and ring connectors
