Viking Electronics

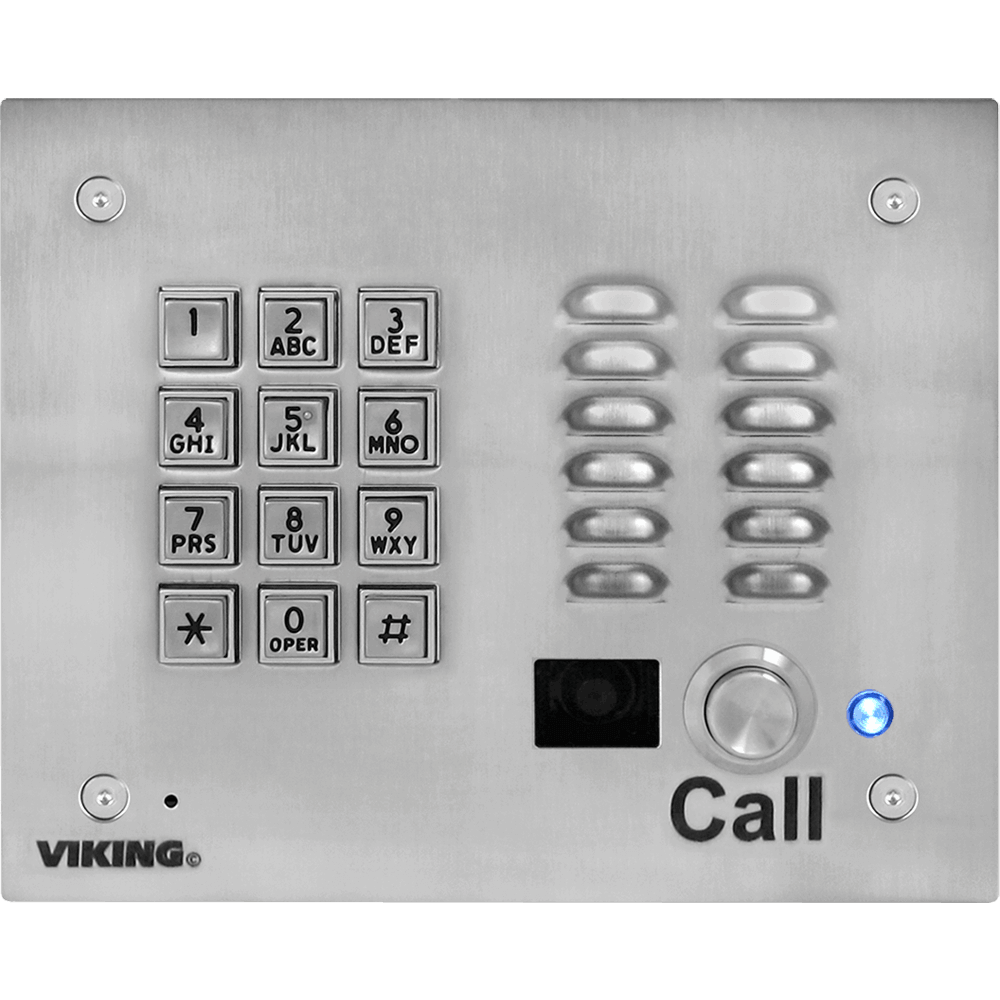

Viking K-1705-IP VoIP Entry Phone with Analog Camera Stainless Steel Finish

Viking K-1705-IP VoIP Entry Phone with Analog Camera Stainless Steel Finish


SKU: K-1705-IP

Usually ships in 10days!

View full details

Viking K-1705-IP Features:

  • Vandal Resistant Features:
    • 14 gauge louvered 316 stainless steel faceplate with permanent laser etched graphics
    • Stainless steel “Call” button
    • Heavy duty metal keypad
    • T-10 Torx security mounting screws
  • Weather Resistant Features:
    • Marine grade 316 stainless steel faceplate, screws and push button switch
    • Switch internally sealed per IP67
    • Mylar speaker
    • Self-draining mic mount
    • Faceplate, mic and speaker gaskets
  • Built-in high resolution analog NTSC color video camera with wide viewing angle, tilt/swivel adjustments and wide operating temperature: -40°F to 140°F
  • Two sets of SPDT 2 Amp relay contacts for door/gate or camera control
  • Secure Remote Relay Control using Viking RC-4A
  • Blue “Call /Status” LED indicator
  • PoE powered (class 2, <6.5 Watts)
  • Automatic Noise Canceling (ANC) feature for operation in noisy environments
  • Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode
  • Network downloadable firmware
  • 26 Bit Wiegand input for adding a Viking proximity card reader
  • 26 Bit Wiegand output connect to card reader input of an Access Control System
  • Programmable to speed dial up to 250 numbers
  • Cycles to roll over phone number on busy or no-answer
  • Program up to 1,000 keyless entry codes
  • Program up to 1,000 proximity card numbers
  • Keyless entry codes and proximity card numbers can be programmed to only allow access at specific times and day of week
  • Call logging with time and date stamp
  • Hangs up on busy signal, time-out or touch tone command
  • Extended temperature range (-40°F to 140°F)

Viking K-1705-IP Applications:

  • Apartment Entry Phone
  • Residential Gate Entrance
  • Door Entry Phone
  • Courtesy Assistance Phone
  • Customer Service Phone
  • Automated Teller (ATM) Phone
  • Security or Emergency Phone
  • Hot-Line Phone
  • Kiosk Phone with up to 250 number speed dialing
  • VoIP SIP System Compatibility List:

    • On Premise
      • 3COM VCX
      • 3CX
      • Allworx
      • Aastra
      • Asterisk
      • Atcom
      • Avaya Aura Platform
      • Avaya IP Office Platform
      • BlueBox
      • Brekeke
      • Cisco Unified Communications Manager (CUCM)*
      • Cisco Unified Communications Manager Express (CUCME)
      • Elastix
      • epygi QX200
      • Freeswitch
      • Grandstream*
      • Interactive Intelligence
      • iPECS (Ericsson-LG)
      • Iwatsu ECS
      • Kamailio
      • Mitel 3300
      • NEC
      • OfficeSIP
      • OpenSIPS
      • Panasonic** (with SIP Extension Card)
      • PolyCom
      • Samsung Communications Manager (SCM)
      • ShoreTel
      • Siemens Communications Server (SCS)
      • SIP Express Router (SER)
      • Snom PBX
      • Sonus
      • Switchvox
      • Teksip
      • Toshiba
      • Vertical Wave*
      • Yealink T Series S IP Phones

    Cloud Based Service Provider:

    • Callcentric
    • MetaSwitch
    • Ring Central
    • Switchvox
    • unify
    • Vertical Wave
    • Voice Carrier
    • VoIP.MS
    • Wildix
    • ** Note: Relay operation commands are NOT compatible with Panasonic Phone Systems (Panasonic does not transmit DTMF between station ports), Inc. is a leading provider of Viking Electronics phone systems and equipment. We specialize in business phones and business phone systems for small to large companies; with phone systems for any application. We sell many of the brands in the IT, Telecom, Datacom, Electrical, and Industrial spaces.
