Viking Electronics

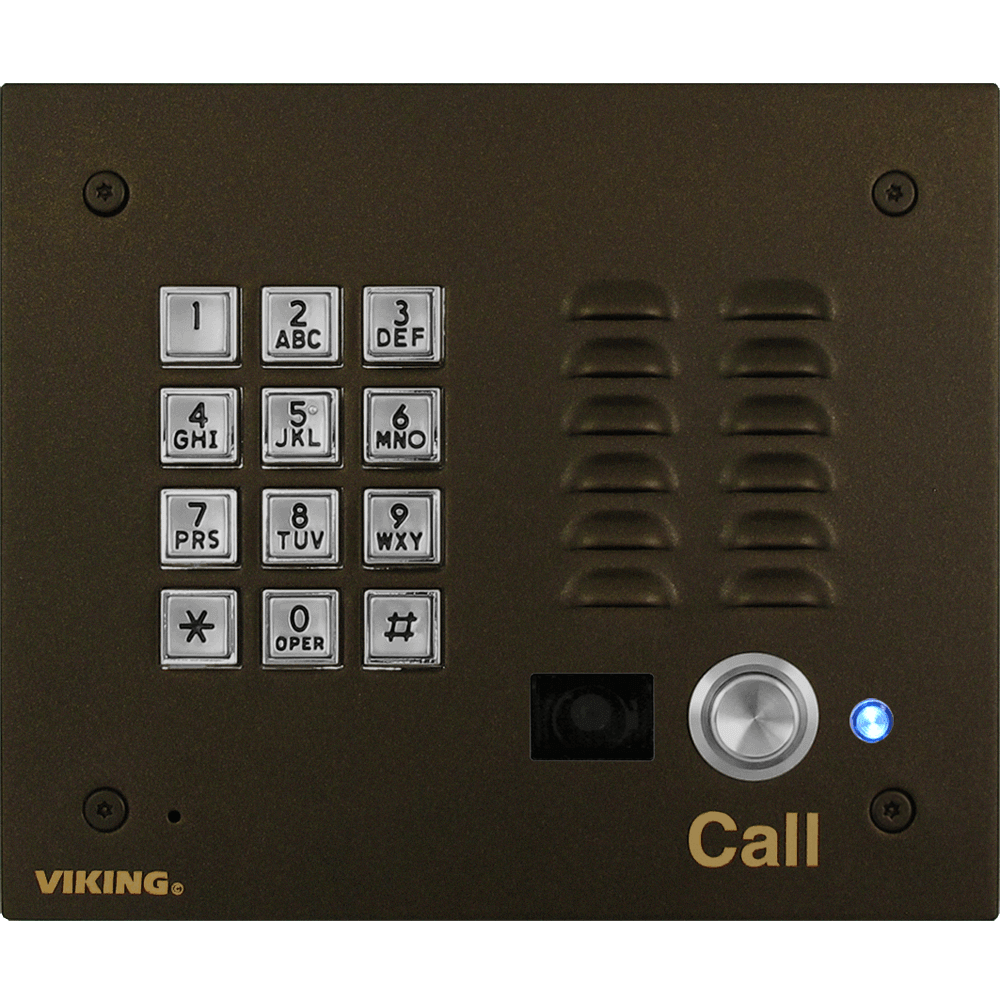

Viking K-1705-BN-IPEWP VoIP Entry Phone with Analog Camera Bronze Finish and Enhanced Weather Protection

Viking K-1705-BN-IPEWP VoIP Entry Phone with Analog Camera Bronze Finish and Enhanced Weather Protection

$1,105.50

SKU: K-1705-BN-IPEWP

Ships in 4 to 10 weeks!

View full details
Viking K-1705-BN-IPEWP Features:

  • Vandal Resistant Features:
    • 14 gauge louvered 316 stainless steel faceplate with scratch resistant powder coating
    • Stainless steel “Call” button
    • Heavy duty metal keypad
    • T-10 Torx security mounting screws
  • Weather Resistant Features:
    • Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating
    • Marine grade 316 stainless steel faceplate, screws and push button switch
    • Switch internally sealed per IP67
    • Mylar speaker
    • Self-draining mic mount
    • Faceplate, mic and speaker gaskets
  • Two sets of SPDT 2 Amp relay contacts for door / gate or camera control
  • Secure Remote Relay Control using Viking RC-4A
  • Blue “Call / Status” LED indicator
  • PoE powered (class 2, <6.5 Watts)
  • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
  • VoIP audio detection eliminates the need for “Push to Talk” mode
  • 26 Bit Wiegand input for adding a Viking proximity card reader
  • 26 Bit Wiegand output can connect to card reader input of an Access Control System
  • Programmable to speed dial up to 250 numbers
  • Cycles to roll over phone number on busy or ring-no-answer
  • Program up to 1,000 keyless entry codes
  • Program up to 1,000 proximity card numbers
  • Keyless entry codes and proximity card numbers can be programmed to only allow access at specific times and day of week
  • Call logging with time and date stamp
  • Hangs up on busy signal, time-out or touch tone command
  • Extended temperature range (-40°F to 140°F)
  • Volume adjustments for microphone and speaker
  • Selectable auto-answer feature for monitoring
  • Remotely programmable

APPLICATIONS

  • Gate Entrance
  • Parking ramps/lots
  • ATM machines
  • Medical centers
  • Lobbies
  • Entryways
  • Stadiums
  • Convention centers
  • Public access areas

VoIP SIP System Compatibility List:

      • On Premise
        • 3COM VCX
        • 3CX
        • Allworx
        • Aastra
        • Asterisk
        • Atcom
        • Avaya Aura Platform
        • Avaya IP Office Platform
        • BlueBox
        • Brekeke
        • Cisco Unified Communications Manager (CUCM)*
        • Cisco Unified Communications Manager Express (CUCME)
        • Elastix
        • epygi QX200
        • Freeswitch
        • Grandstream*
        • Interactive Intelligence
        • iPECS (Ericsson-LG)
        • Iwatsu ECS
        • Kamailio
        • Mitel 3300
        • NEC
        • OfficeSIP
        • OpenSIPS
        • Panasonic** (with SIP Extension Card)
        • PolyCom
        • Samsung Communications Manager (SCM)
        • ShoreTel
        • Siemens Communications Server (SCS)
        • SIP Express Router (SER)
        • Snom PBX
        • Sonus
        • Switchvox
        • Teksip
        • Toshiba
        • Vertical Wave*
        • Yealink T Series S IP Phones

Cloud Based Service Provider:

    • Callcentric
    • iptel.org
    • MetaSwitch
    • Ring Central
    • sip.antisip.com
    • Switchvox
    • unify
    • Vertical Wave
    • Voice Carrier
    • VoIP.MS
    • Wildix
    • ** Note: Relay operation commands are NOT compatible with Panasonic Phone Systems (Panasonic does not transmit DTMF between station ports)

SPECIFICATIONS

Power PoE class 1 (<4 Watts)
Maximum Sound Pressure 89 dB SPL @ 1 m
Dimensions Faceplate
Shipping Weight 0.55 kg (1.2 lbs)
Operating Temperature -40°C to 60°C (-40°F to 140°F)
Humidity – Standard Products 5% to 95% non-condensing
Humidity – EWP Products Up to 100%
Audio Codecs G711u, G711a, G722
Network Compliance IEEE802.3af PoE, SIP 2.0 RFC3261, 100BASE-TXwith auto cross over
Regulatory Compliance FCC Part 15, CE, and Canada ICES-3 Class A
Connections (1) RJ45 10/100 Base-T, (3) gel-filled butt c
