Viking Electronics

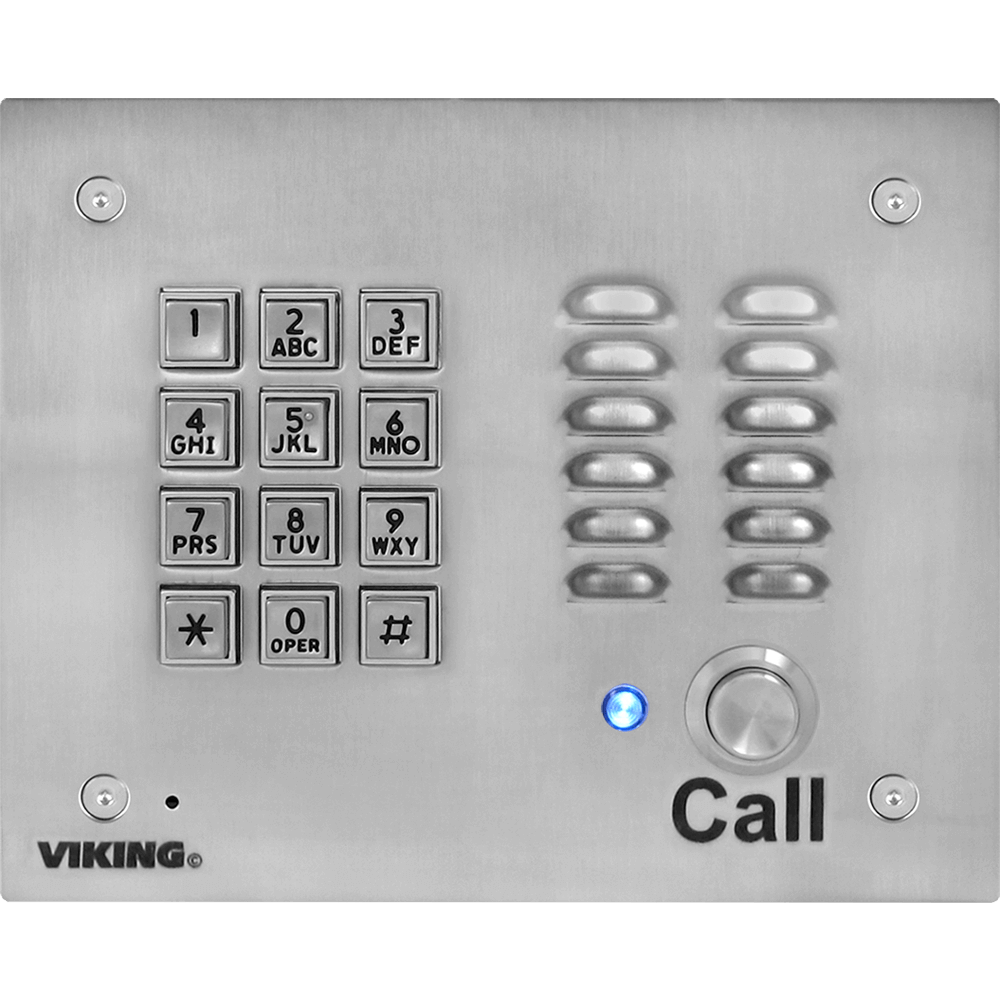

Viking K-1700-IP VoIP Entry Phone Brushed Stainless Finish
Viking K-1700-IP VoIP Entry Phone Brushed Stainless Finish
$697.78
SKU: K-1700-IPShips in 4 to 10 weeks
Couldn't load pickup availability
Viking K-1700-IP Features:
- Vandal Resistant Features:
- 14 gauge louvered 316 stainless steel faceplate with scratch resistant powder coating
- Stainless steel “Call” button
- Heavy duty metal keypad
- T-10 Torx security mounting screws
- Weather Resistant Features:
- Enhanced Weather Protection designed to meet IP66 Ingress Protection Rating
- Marine grade 316 stainless steel faceplate, screws and push button switch
- Switch internally sealed per IP67
- Mylar speaker
- Self-draining mic mount
- Faceplate, mic and speaker gaskets
- Two sets of SPDT 2 Amp relay contacts for door / gate or camera control
- Secure Remote Relay Control using Viking RC-4A
- Blue “Call / Status” LED indicator
- PoE powered (class 2, <6.5 Watts)
- Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
- VoIP audio detection eliminates the need for “Push to Talk” mode
- 26 Bit Wiegand input for adding a Viking proximity card reader
- 26 Bit Wiegand output can connect to card reader input of an Access Control System
- Programmable to speed dial up to 250 numbers
- Cycles to roll over phone number on busy or ring-no-answer
- Program up to 1,000 keyless entry codes
- Program up to 1,000 proximity card numbers
- Keyless entry codes and proximity card numbers can be programmed to only allow access at specific times and day of week
- Call logging with time and date stamp
- Hangs up on busy signal, time-out or touch tone command
- Extended temperature range (-40°F to 140°F)
- Volume adjustments for microphone and speaker
- Selectable auto-answer feature for monitoring
- Remotely programmable
APPLICATIONS
- Gate Entrance
- Parking ramps/lots
- ATM machines
- Medical centers
- Lobbies
- Entryways
- Stadiums
- Convention centers
- Public access areas
VoIP SIP System Compatibility List:
- On Premise
- 3COM VCX
- 3CX
- Allworx
- Aastra
- Asterisk
- Atcom
- Avaya Aura Platform
- Avaya IP Office Platform
- BlueBox
- Brekeke
- Cisco Unified Communications Manager (CUCM)*
- Cisco Unified Communications Manager Express (CUCME)
- Elastix
- epygi QX200
- Freeswitch
- Grandstream*
- Interactive Intelligence
- iPECS (Ericsson-LG)
- Iwatsu ECS
- Kamailio
- Mitel 3300
- NEC
- OfficeSIP
- OpenSIPS
- Panasonic** (with SIP Extension Card)
- PolyCom
- Samsung Communications Manager (SCM)
- ShoreTel
- Siemens Communications Server (SCS)
- SIP Express Router (SER)
- Snom PBX
- Sonus
- Switchvox
- Teksip
- Toshiba
- Vertical Wave*
- Yealink T Series S IP Phones
Cloud Based Service Provider:
- Callcentric
- iptel.org
- MetaSwitch
- Ring Central
- sip.antisip.com
- Switchvox
- unify
- Vertical Wave
- Voice Carrier
- VoIP.MS
- Wildix
- ** Note: Relay operation commands are NOT compatible with Panasonic Phone Systems (Panasonic does not transmit DTMF between station ports)
SPECIFICATIONS
| Power | PoE class 1 (<4 Watts) |
|---|---|
| Maximum Sound Pressure | 89 dB SPL @ 1 m |
| Dimensions | Faceplate |
| Shipping Weight | 0.55 kg (1.2 lbs) |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Humidity – Standard Products | 5% to 95% non-condensing |
| Humidity – EWP Products | Up to 100% |
| Audio Codecs | G711u, G711a, G722 |
| Network Compliance | IEEE802.3af PoE, SIP 2.0 RFC3261, 100BASE-TXwith auto cross over |
| Regulatory Compliance | FCC Part 15, CE, and Canada ICES-3 Class A |
| Connections | (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors |
