Viking Electronics

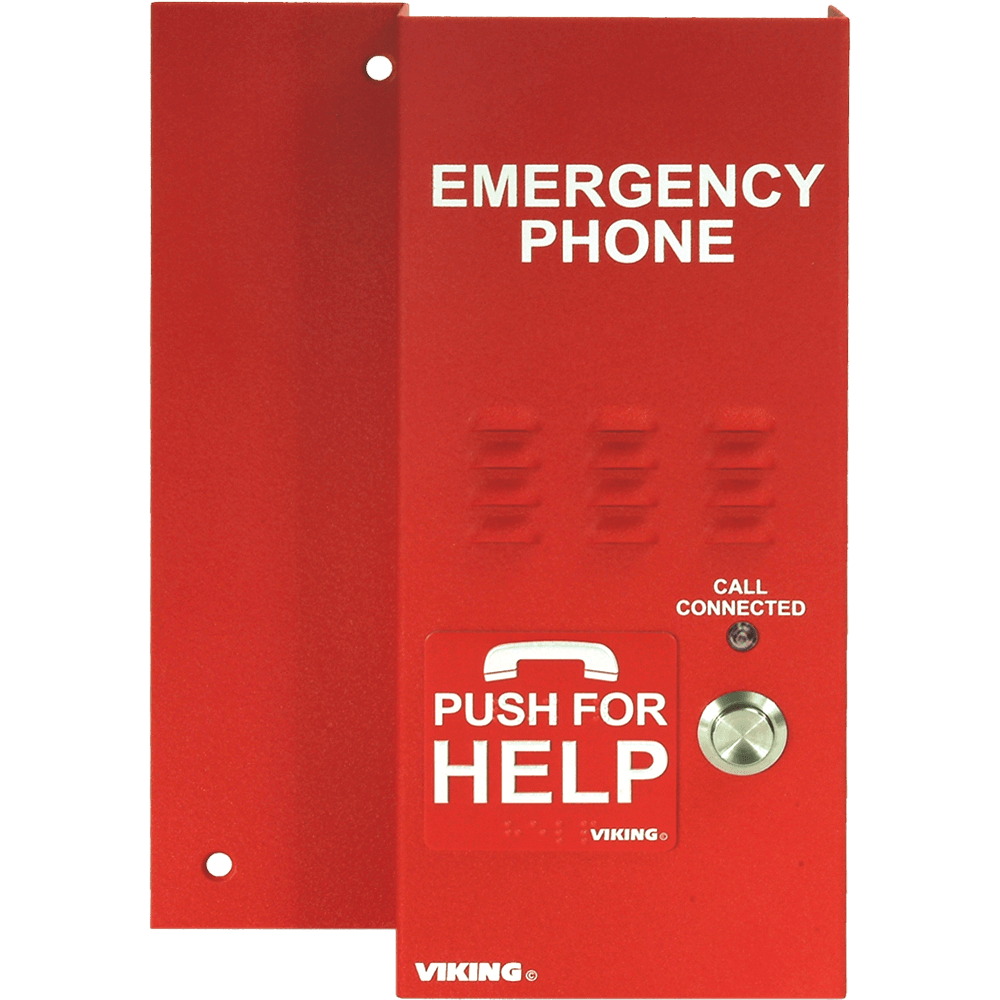

Viking K-1600-EHFA A.D.A. Compliant Elevator Phone with Built-in Dialer and Digital Announcer

Viking K-1600-EHFA A.D.A. Compliant Elevator Phone with Built-in Dialer and Digital Announcer


SKU: K-1600-EHFA

The Viking K-1600-EHFA Emergency Phone is designed to provide handsfree communication for any standard analog phone line or phone system analog port. The Viking K-1600-EHFA meets ADA requirements for elevator emergency phones and can be programmed from any touch tone phone. It can dial up to 5 programmable emergency numbers as well as 2 central station numbers.

The Viking K-1600-EHFA can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. A DTMF touch tone code may also be delivered. A “Call Connected” LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory. The K-1600-EHFA is phone line powered, requiring no batteries or external power and is compatible with common Central Station Monitoring equipment.

View full details

Viking K-1600-EHFA Features:

  • Automatic Noise Canceling (ANC) feature for clear audio in noisy environments
  • Meets the latest ASME A17.1 code when used with the optional LV-1K Line Verification Panel
  • Non-volatile digital voice announcer with 16 seconds of voice memory
  • Advanced call progress detection
  • Handsfree operation
  • Phone line powered
  • Non-volatile memory (no batteries required)
  • Marine grade 316 stainless steel prevents corrosion on stainless models
  • Dials up to 5 emergency numbers
  • E-1600-20A and E-1600-52A dial up to 3 non-emergency “INFO” numbers
  • Cycles through backup phone numbers on busy or no-answer
  • Optional Enhanced Weather Protection (EWP), EWP products are designed to meet
  • IP66 Ingress Protection Rating
  • Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
  • Programmable to auto-answer on incoming calls
  • Remotely programmable
  • Extended temperature range (-15°F to 130°F)
  • 16 different chassis or board only available
  • Available in 42” tall tower phone model E-1600A-BLT-EWP
  • Central Station Monitoring capability (dials 2 numbers)
  • Optional PB-100 Polling System available
  • Optional BLK-4-EWP strobe light kit available
  • Optional LC-6 Six Port Concentrator available
  • Optional LV-1K Line Verification Panel available
  • Optional E-1600A-MK-GNP Pedestal Mounting Kit
  • Optional PB-1 Panic Button Kit
  • Also available with VoIP interface
  • Manufacturer Warranty: 2 Year Limited Warranty

Viking K-1600-EHFA Applications:

  • Elevators
  • Parking ramps/lots
  • Emergency pool phones
  • ATM machines
  • Area of refuge locations
  • Lobbies
  • Silent holdup alarm dialer using optional Panic Button Kit
  • Entryways
  • Campus emergency stations
  • Roadside emergency stations
  • Stadiums
