Viking K-1275-IP-EWP Vandal Resistant VoIP Entry Phone System with Built-In Directory, 12 Button Dialer, Video Camera, Proximity Reader, and Enhanced Weather Protection
Viking K-1275-IP-EWP Vandal Resistant VoIP Entry Phone System with Built-In Directory, 12 Button Dialer, Video Camera, Proximity Reader, and Enhanced Weather Protection
$1,272.66
SKU: K-1275-IP-EWP

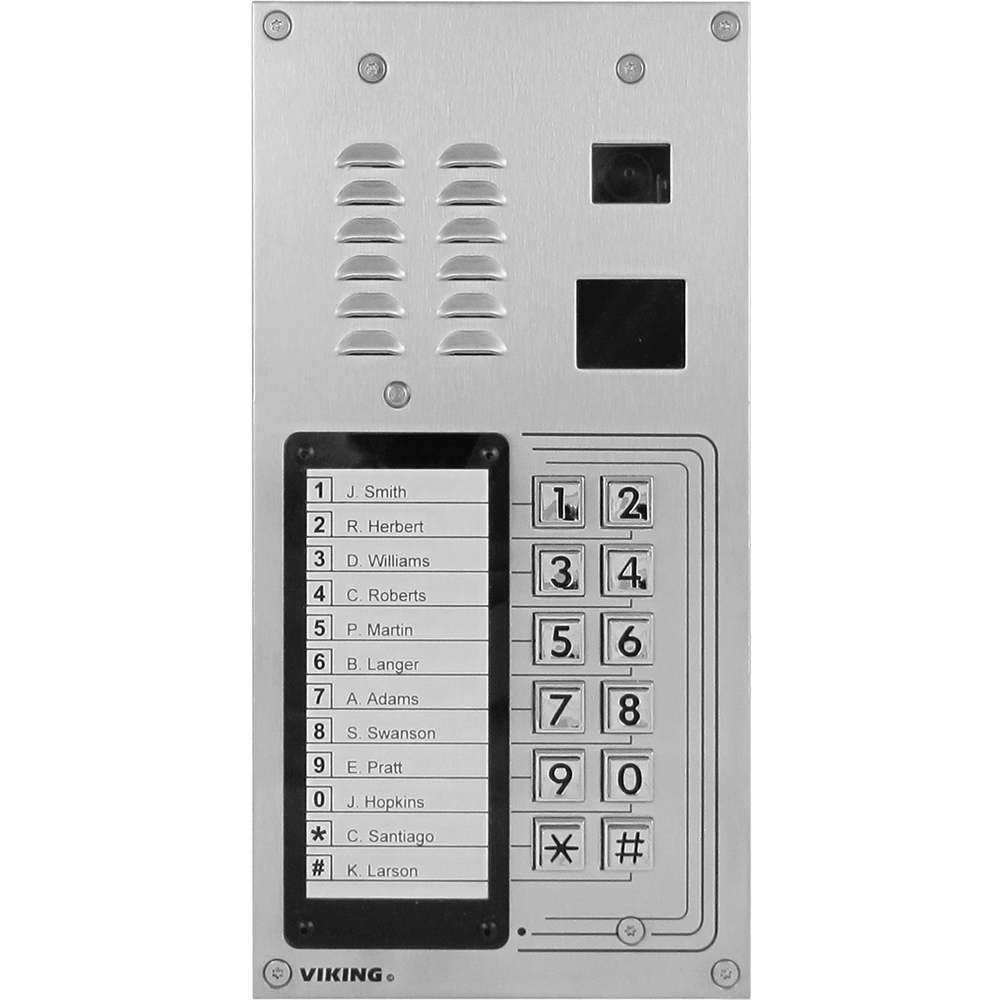

The Viking K-1275-IP-EWP handsfree VoIP phone for apartment and residential door entry . Requiring a vandal resistant VoIP speaker phone with an integrated analog color video camera and 125 KHz proximity reader. The Viking K-1275-IP-EWP is designed to provide handsfree communication for SIP VoIP phone systems or cloud based service providers. Program from any PC on the same LAN or remotely using a Static IP Address. The Viking K-1275-IP-EWP can dial up to 12 programmable numbers and 12 rollover numbers. The faceplate has a directory built-in for 12 residents with a waterproof, scratch resistant lens and 12 single push auto-dialing buttons to dial the tenant’s phone number or business extension.
Couldn't load pickup availability
Viking K-1275-IP-EWP Features:
-
- Built-in high resolution analog NTSC color video camera with wide viewing angle, tilt/swivel adjustments and wide operating temperature: -40°F to 140°F (-40°C to 60°C)
- Built-in 125 KHz 26-bit Wiegand proximity card reader with LED, “beep” read confirmation, and EWP board protection
- Vandal Resistant Features
- 14 gauge louvered 316 stainless steel faceplate
- Permanent laser etched graphics
- Speaker and mic screen
- Heavy-duty metal keypad buttons
- T-10 Security Torx drive mounting screws
- Weather Resistant Features
- Marine grade 316 stainless steel faceplate and screws
- Keypad internally sealed per IP67
- Mylar speaker
- Self-draining mic mount
- Gaskets for faceplate, mic, and speaker
- Two sets of SPDT 2 Amp relay contacts for controlling a door, gate, or camera
- Optional RC-4A for secure remote relay control
- Blue “Call/Status” LED indicator
- SIP compliant
- PoE powered (class 2, <6.5 Watts)
- Automatic Noise Canceling (ANC) feature for clear audio even in noisy environments
- Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode
- Network downloadable firmware
- 26 bit Wiegand input for optional proximity card readers
- Programmable to speed dial up to 12 numbers
- Cycles to rollover phone number on busy or no-answer
- Program up to 1,000 keyless entry codes and/or proximity card numbers
- Keyless entry codes and proximity card numbers can be programmed to only allow access at specific times and days of week
- Event logging with time and date stamp
- Hangs up on: busy signal, time-out, or touch tone command
- Program remotely
- Extended operating temperature range: -40°F to 140°F (-40°C to 60°C)
- Adjustable volume for microphone and speaker
- Selectable auto-answer feature for monitoring
- Zinc plated steel rough-in box included
- Optional LRR-4 Long Range RFID Receiver,
- Optional VE-5×10 Surface Mount Boxes available,
- Optional VE-LIGHT kit to illuminate the front panel at night
- Diagnostics for testing mic, speaker, and relays
Viking K-1275-IP-EWP Applications:
- Gate Entrance
- Courtesy Assistance Phone
- Customer Service Phone
- Automated Teller (ATM) Phone
- Door Entry Phone
- Apartment Entry Phone
- Kiosk Phone
Viking K-1275-IP-EWP Specifications:
- Power: PoE class 2 (<6.5 Watts)
- Dimensions – Overall: 5” x 10” x 2.5” (127mm x 254mm x 63.5mm)
- Dimensions – Rough-In Box: 4.5” x 9.12” x 2.5” (114mm x 232mm x 64mm)
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Humidity: 5% to 95% non-condensing
- Audio Codecs: G711u, G711a, G722
- Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
- Connections: (1) RJ45 10/100 Base-T, (10) gel-filled butt connectors
- Camera Specifications
- Image Sensor: 1/4” color CMOS
- Video Output: 1 VP-P composite, NTSC, 75 Ohms
- Resolution: 420 lines (640 x 480 @ 30fps / 307,200 pixels)
- Sensitivity: 0.025 LUX (50 IRE) F 1.2 3200K
- Lens: 2.1mm, conical pinhole
- Field of View: 80° Horizontal, 60° Vertical, 100° Diagonal
- Tilt/Swivel Adjustment: Vertical +/- 20°, horizontal +/- 30°
- Maximum Wire Run Length: 1000 ft with *RG59/RG6 for video and CAT5 for power (1 pair) and entry phone audio (1 pair). 150 ft with CAT5E for video, power and entry phone audio (longer video runs are possible by using video balun transceivers).
- Proximity Reader Specifications
- Power: PoE powered from K-1270-IP PCB
- Maximum Cable Length: 500 ft 24 AWG stranded shielded (Belden 9537)
- Frequency: 125KHz
- Format: 26 bit Wiegand
- Read Range: 1.25” to 2.0”
- Technologies Supported: Viking PRX-C, PRX-C-ISO, PRX-FOB, LRT-4, certain legacy HID® proximity protocols* and certain AWID 125Khz proximity protocols**
* HID and the HID logo are registered trademarks of HID Global Corporation, an ASSA ABLOY company. All other trademarks are the property of their respective owners.
** AWID is a trademark of Applied Wireless Identification Group.
VoIP SIP System Compatibility List:
- 3COM VCX
- 3CX
- Aastra
- Asterisk
- Atcom
- Avaya IP Office
- BlueBox
- Brekeke
- Cisco Unified Communications Manager (CUCM)
- Freeswitch
- Grandstream
- iptel.org
- Kamailio
- MetaSwitch
- OfficeSIP
- OpenSIPS
- Panasonic
- Samsung Communications Manager (SCM)
- ShoreTel
- Siemens Communications Server (SCS)
- SIP Express Router (SER)
- sip.antisip.com
- Snom PBX
- Sonus
- Switchvox
- Teksip
- Toshiba
- VoIP.ms
- Vonage
