Viking Electronics

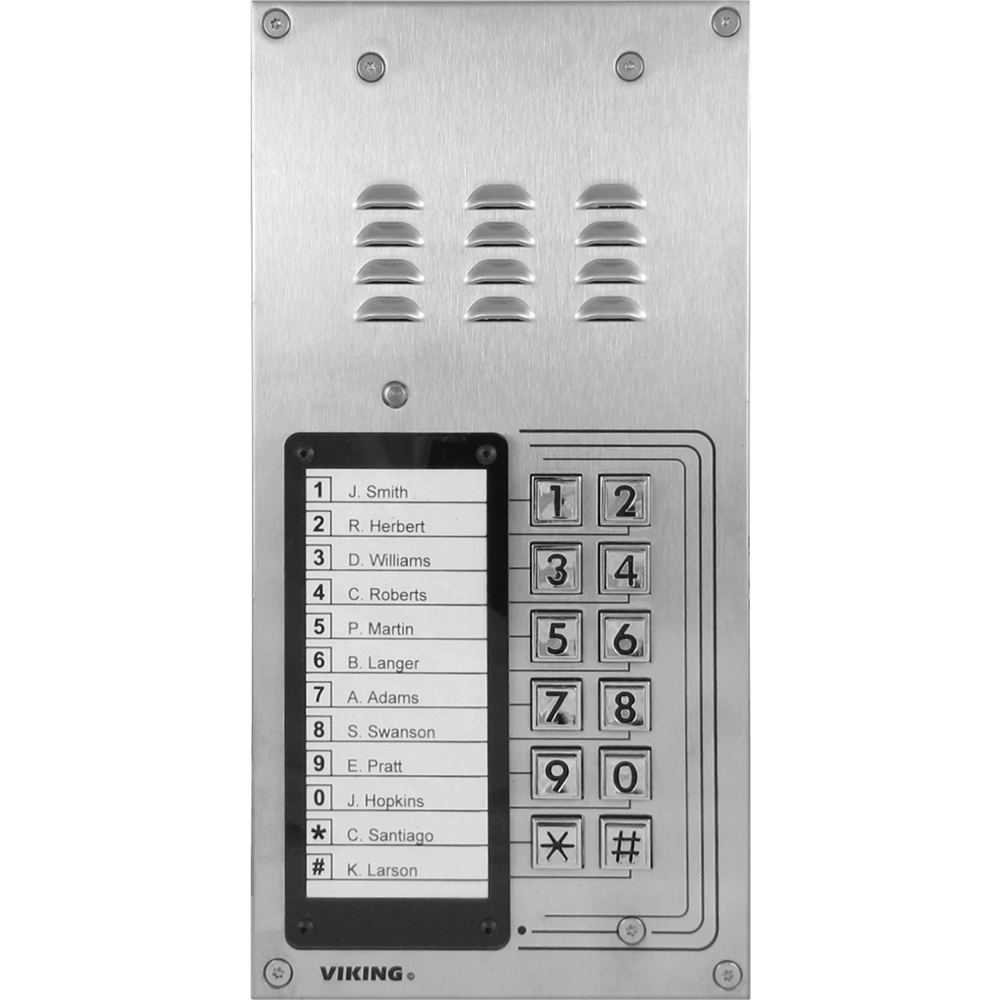

Viking K-1200-IP-EWP VoIP Entry Phone System with 12 Button Auto Dialer

Viking K-1200-IP-EWP VoIP Entry Phone System with 12 Button Auto Dialer

$749.54

SKU: K-1200-IP-EWP

NOTE: Surface Mount Box Sold Separately

View full details

The Viking K-1200-IP-EWP entry phones provide a durable and attractive hands-free phone for apartment and residential door entry or applications requiring a vandal resistant VoIP speaker phone.

View IP SIP System:

Compatibility List

Viking K-1200-IP-EWP Features:
  • Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with permanent laser etched graphics. Speaker/mic screen.
  • Heavy duty metal keypad buttons and T-10 Security Torx drive mounting screws
  • Weather Resistant Features: Marine grade 316 stainless steel faceplate and screws. Keypad internally sealed per IP67. Mylar speaker.
  • Self-draining mic mount. Faceplate, mic and speaker gaskets
  • Two sets of SPDT 2 Amp relay contacts for door/gate or camera control
  • Optional RC-4A for Secure Remote Relay Control
  • Blue “Call /Status” LED indicator
  • SIP compliant (see pg 2 for list of compatible IP-PBX phone systems)
  • PoE powered (class 2, <6.5 watts)
  • Automatic Noise Canceling (ANC) feature for operation in noisy environments
  • Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode
  • Network downloadable firmware
  • 26 Bit Wiegand input for optional proximity card readers
  • Programmable to speed dial up to 12 numbers
  • Cycles to roll over phone number on busy or no-answer
  • Program up to 1,000 keyless entry codes and/or proximity card numbers
  • Keyless entry codes and proximity card numbers can be programmed to only allow access at specific times and day of week
  • Event logging with time and date stamp
  • Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating
  • Hangs up on busy signal, time-out or touch tone command
  • Remotely programmable
  • Extended temperature range (-40°F to 140°F)
  • Programmable volume adjustments for microphone and speaker
  • Selectable auto-answer feature for monitoring
  • Zinc plated steel rough-in box included
  • Optional VE-5X10 Surface Mount Box available
  • Optional VE-LIGHT kit to illuminate the front panel at night
  • Self diagnostics (testing: com, mic, speaker, and switch)
Viking K-1200-IP-EWP Specifications:
  • Power: PoE class 2 (<6.5 watts)
  • Dimensions: Overall: 5” x 10” x 2.5” (127mm x 254mm x 63.5mm) Rough-in box: 4.5” x 9.12” x 2.5” (114mm x 232mm x 64mm)
  • Shipping Weight: 4.2 lbs (1.9 kg)
  • Operating Temperature: -40°F to 140°F (-40° C to 60° C)
  • Humidity - Standard Products: 5% to 95% non-condensing
  • Humidity - EWP Products: Up to 100%
  • Audio Codecs: G711u, G711a, G722
  • Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
  • Connections: (1) RJ45 10/100 Base-T, (14) gel-filled butt connectors
