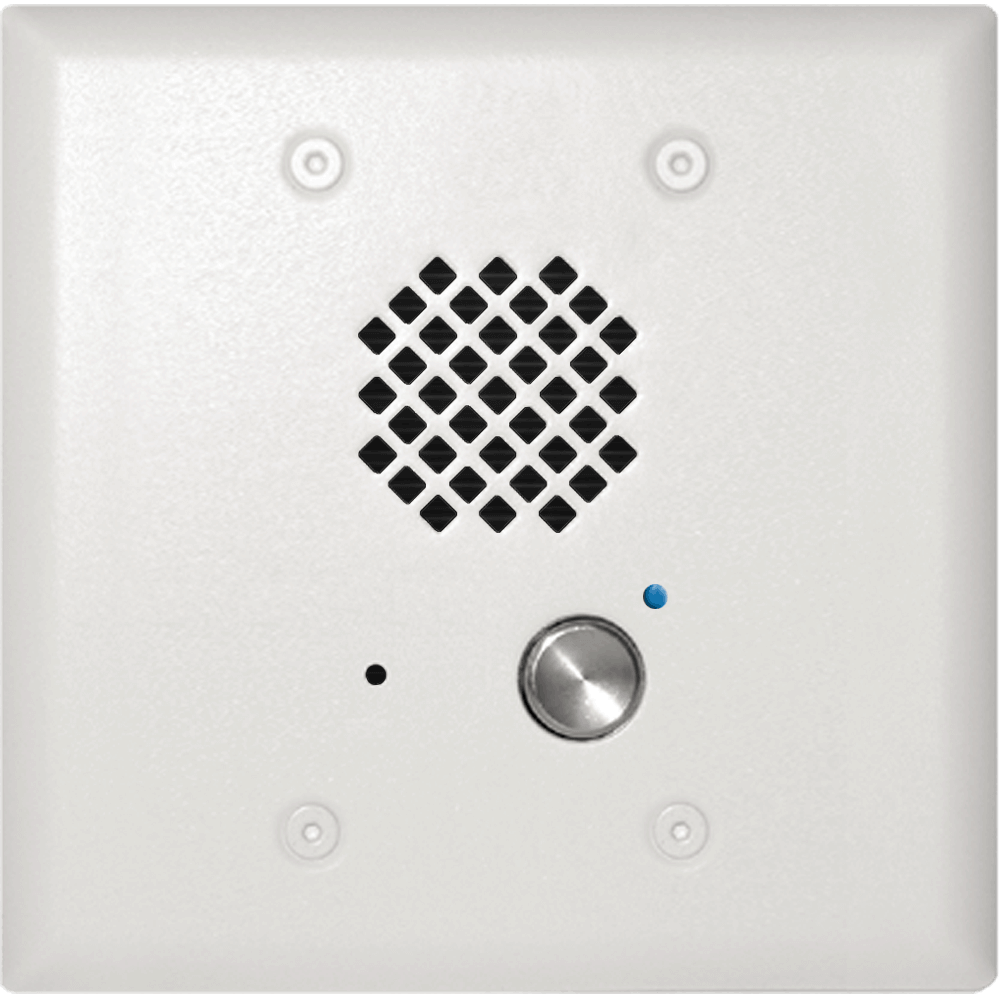

Viking E-60-WH-IP-EWP Double Gang Voip Entry Phone With Enhanced Weather Protection, White Finish

Viking E-60-WH-IP-EWP Double Gang Voip Entry Phone With Enhanced Weather Protection, White Finish



Ships in 4 to 10 weeks

The Viking E-60-WH-IP-EWP is a compact, vandal resistant VoIP entry phone designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The E-60-WH-IP-EWPP VoIP entry phone can be programmed from any touch tone phone, PC, or remotely using a static IP address. The entry phone can dial up to 5 programmable numbers. On-board 2 Amp relay contacts are provided for activating doorstrikes or gate controllers. For added security, an optional RC-4A Secure Relay Controller can also be used.

The Viking E-60-WH-IP-EWP features a blue LED that continually provides light for locating the push button in dark locations, flashes during dialing, and automatically lights again when the call is answered. The VoIP entry phone unit is PoE powered and all programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries.

The compact size of the E-60-WH-IP-EWP entry phone allows it to be flush mounted in a standard double gang electrical box. Surface mount options are also available using Viking’s VE-5×5 Series Surface Mount Boxes. Replacement faceplates can be purchased separately, see model PNL60-SS.

The E-60-WH-IP-EWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming.

View full details
Viking E-60-WH-IP-EWP Features
  • Compact: Front panel is the size of a typical double gang mid-size wall plate
  • Mounting: Flush mounts in a double gang electrical box (2.25” deep x 3.65” wide x 2.84” tall minimum) or surface mounts in an optional VE 5×5 (see DOD 424) for mounting to a wall, post or VE-GNP Gooseneck Pedestal (EWP recommended)
  • Available in 4 standard faceplate finishes: Brushed Stainless Steel, Oil Rubbed Bronze, Textured Black and Satin White
  • PNL-60 faceplates: Replacement faceplates with matching screws available in all four standard finishes
  • Self diagnostic reports via email (testing com, microphone, speaker, and switch)
  • Automatic polling and programming software included
  • 2 Amp relay contacts for door / gate or SL-2 strobe light control
  • Blue LED indicator
  • SIP compliant (see page 2 for compatible SIP servers and IP phone systems)
  • Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
  • PoE powered (class 1, <4 Watts)
  • Automatic Noise Canceling (ANC) for proper operation in noisy environments
  • VoIP eliminates the need for “Push to Talk” mode
  • Network downloadable firmware
  • Can be used with optional RC-4A Secure Relay Controller (DOD 582)
  • Handsfree operation
  • Programmable to dial up to 5 numbers on busy or ring no answer
  • Cycles through backup phone numbers on busy or no-answer
  • Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD 859
  • Hangs up on busy signal, time-out or touch tone command
  • Remotely programmable
  • Extended temperature range (-40°F to 140°F)
  • Volume adjustments for microphone and speaker
  • Optional PB-100 Polling System available (DOD 232)


  • Gate Entrance
  • Parking ramps/lots
  • ATM machines
  • Medical centers
  • Lobbies
  • Entryways
  • Stadiums
  • Convention centers
  • Public access areas
  • Optional SL-2 or BLK-4-EWP strobe light kit available


Power PoE class 1 (<4 Watts)
Maximum Sound Pressure 89 dB SPL @ 1 m
Dimensions Faceplate
Shipping Weight 0.55 kg (1.2 lbs)
Operating Temperature -40°C to 60°C (-40°F to 140°F)
Humidity – Standard Products 5% to 95% non-condensing
Humidity – EWP Products Up to 100%
Audio Codecs G711u, G711a, G722
Network Compliance IEEE802.3af PoE, SIP 2.0 RFC3261, 100BASE-TXwith auto cross over
Regulatory Compliance FCC Part 15, CE, and Canada ICES-3 Class A
