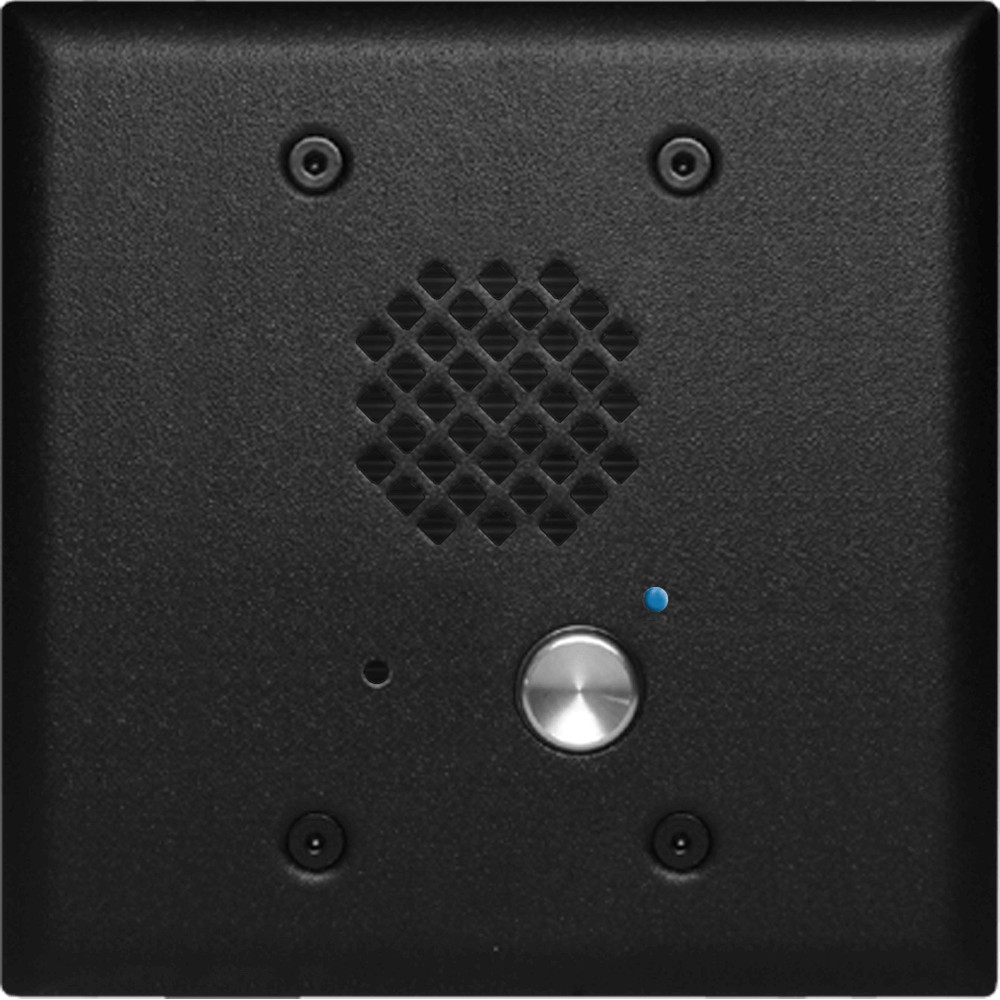

Viking E-60-BK-IP Double Gang Voip Entry Phone, Black Finish

Viking E-60-BK-IP Double Gang Voip Entry Phone, Black Finish



The E-60-BK-IP is a compact, vandal resistant VoIP entry phone designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The E-60-BK-IP VoIP entry phone can be programmed from any touch tone phone, PC, or remotely using a static IP address. The entry phone can dial up to 5 programmable numbers. On-board 2 Amp relay contacts are provided for activating doorstrikes or gate controllers. For added security, an optional RC-4A Secure Relay Controller can also be used.

The E-60-BK-IP VoIP entry phone features a blue LED that continually provides light for locating the push button in dark locations, flashes during dialing, and automatically lights again when the call is answered. The unit is PoE powered and all programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries.

The compact size of the E-60-BK-IP double gang entry phone allows it to be flush mounted in a standard double gang electrical box. Surface mount options are also available using Viking’s VE-5×5 Series Surface Mount Boxes. Replacement faceplates can be purchased separately, see model PNL60-BK.

For outdoor installations where the unit is exposed to precipitation or condensation, use model E-60-BK-IP-EWP. For more information on Enhanced weather Protection (EWP).

View full details
Viking E-60-BK-IP Features

  • Compact: Front panel is the size of a typical double gang mid-size wall plate
  • Mounting: Flush mounts in a double gang electrical box (2.25” deep x 3.65” wide x 2.84” tall minimum) or surface mounts in an optional VE 5×5 (see DOD 424) for mounting to a wall, post or VE-GNP Gooseneck Pedestal (EWP recommended)
  • Available in 4 standard faceplate finishes: Brushed Stainless Steel, Oil Rubbed Bronze, Textured Black and Satin White
  • PNL-60 faceplates: Replacement faceplates with matching screws available in all four standard finishes
  • Self diagnostic reports via email (testing com, microphone, speaker, and switch)
  • Automatic polling and programming software included
  • 2 Amp relay contacts for door / gate or SL-2 strobe light control
  • Blue LED indicator
  • SIP compliant (see page 2 for compatible SIP servers and IP phone systems)
  • Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
  • PoE powered (class 1, <4 Watts)
  • Automatic Noise Canceling (ANC) for proper operation in noisy environments
  • VoIP eliminates the need for “Push to Talk” mode
  • Network downloadable firmware
  • Can be used with optional RC-4A Secure Relay Controller (DOD 582)
  • Handsfree operation
  • Programmable to dial up to 5 numbers on busy or ring no answer
  • Cycles through backup phone numbers on busy or no-answer
  • Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD 859
  • Hangs up on busy signal, time-out or touch tone command
  • Remotely programmable
  • Extended temperature range (-40°F to 140°F)
  • Volume adjustments for microphone and speaker
  • Optional PB-100 Polling System available (DOD 232)
  • Optional SL-2 or BLK-4-EWP strobe light kit available (DOD 242 and 653)


  • Gate Entrance
  • Parking ramps/lots
  • ATM machines
  • Medical centers
  • Lobbies
  • Entryways
  • Stadiums
  • Convention centers
  • Public access areas


Power PoE class 1 (<4 Watts)
Maximum Sound Pressure 89 dB SPL @ 1 m
Dimensions Faceplate
Shipping Weight 0.55 kg (1.2 lbs)
Operating Temperature -40°C to 60°C (-40°F to 140°F)
Humidity – Standard Products 5% to 95% non-condensing
Humidity – EWP Products Up to 100%
Audio Codecs G711u, G711a, G722
Network Compliance IEEE802.3af PoE, SIP 2.0 RFC3261, 100BASE-TXwith auto cross over
Regulatory Compliance FCC Part 15, CE, and Canada ICES-3 Class A
Connections (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors, Inc. is a leading provider of Viking Electronics phone systems and equipment. We specialize in business phones and business phone systems for small to large companies; with phone systems for any application. We sell many of the brands in the IT, Telecom, Datacom, Electrical, and Industrial spaces.
