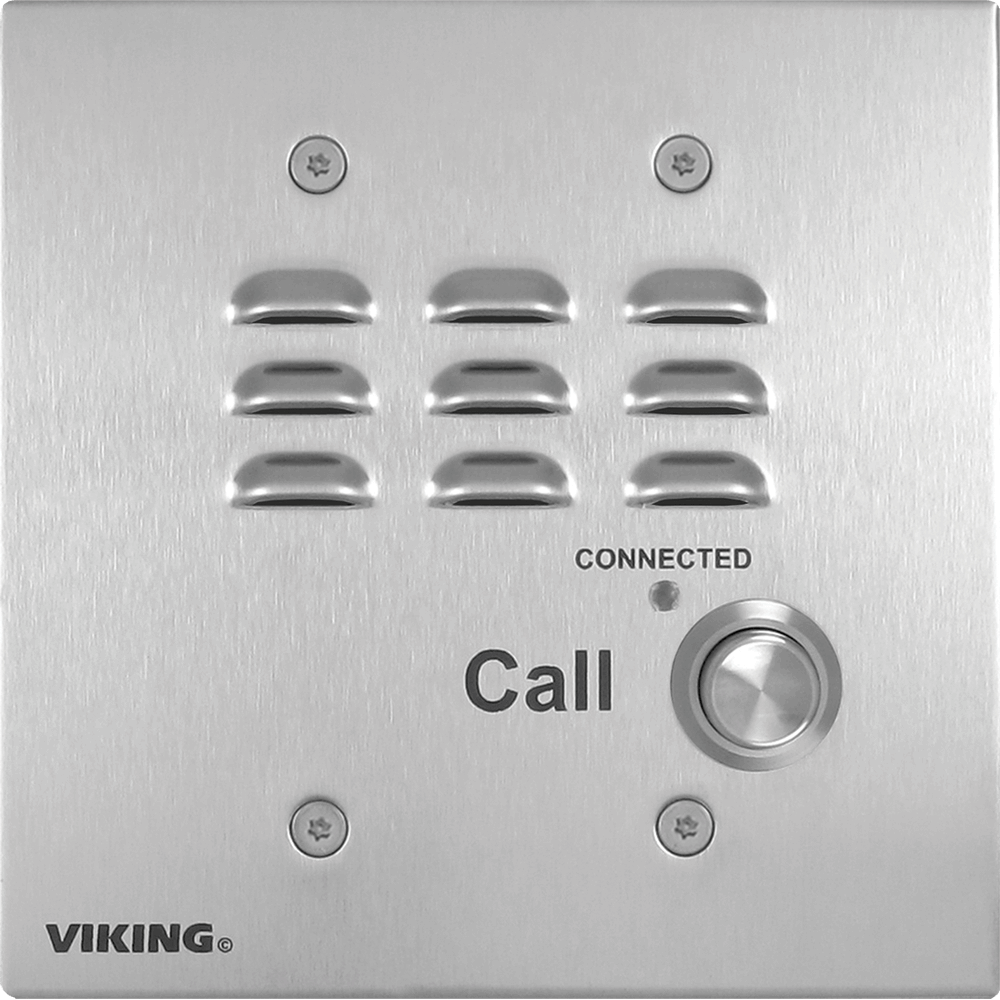

Viking E-32-IP-EWP Double Gang Stainless Steel Voip Entry Phone With Ewp

Viking E-32-IP-EWP Double Gang Stainless Steel Voip Entry Phone With Ewp

$592.95

SKU: E-32-IP-EWP

The E-32-IP-EWP VoIP Entry Phone is designed to provide quick and reliable handsfree communication for SIP VoIP entry phone systems with PoE. The E-32-IP-EWP entry phone can be programmed from any touch tone phone, a PC on the same LAN, or remotely using a static IP address. The VoIP entry phone can dial up to 5 programmable numbers.

The E-32-IP-EWP entry phone will flash the “Call” LED during dialing and automatically light the LED when the call is answered. All programming parameters, including phone numbers, are stored in non-volatile memory, requiring no batteries. This VoIP entry phone unit is PoE powered.

For outdoor installations where the unit is exposed to precipitation or condensation, model E-32-IP-EWP is equipped with Enhanced Weather Protection (EWP). EWP products feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards.

View full details
Viking E-32-IP-EWP Features
  • 2 Amp relay contacts for door / gate or SL-2 Strobe Light (DOD 242) control
  • Blue “Call Connected” LED indicator
  • SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
  • PoE powered (class 1, <4 Watts)
  • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
  • VoIP audio detection eliminates the need for “Push to Talk” mode
  • Handsfree operation
  • T-10 Torx security screws for added security
  • Laser etched graphics
  • Programmable to dial up to 5 numbers
  • Cycles through backup phone numbers on busy or ring-no-answer
  • Hangs up on busy signal, time-out or touch tone command
  • Programming software included
  • Network downloadable firmware
  • Remotely programmable
  • Diagnostics for testing mic, speaker, and relay
  • Flush mounts with a double gang electrical box
  • Extended temperature range: -40°F to 140°F (-40°C to 60°C)
  • Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating,

    Applications:

    • Gate Entrance
    • Parking ramps / lots
    • ATM machines
    • Medical centers
    • Lobbies
    • Entryways
    • Stadiums
    • Convention centers
    • Public access areas

    Specifications

    Power PoE class 1 (<4 Watts)
    Maximum Sound Pressure 90dB SPL @ 1m
    Dimensions 5.0″ x 5.0″ x 2.25″ (127mm x 127mm x 57mm)
    Shipping Weight 2.1 lbs (1.0 kg)
    Operating Temperature -40°F to 140°F (-40°C to 60°C)
    Humidity Up to 100%
    Material 14 gauge 316 stainless steel with #4 brushed finish
    SPDT Relay Contact Rating 2A @ 30VDC / 1A @ 125VAC, 250VAC maximum
    Audio Codecs G711u, G711a, G722
    Network Compliance IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
    Connections (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
