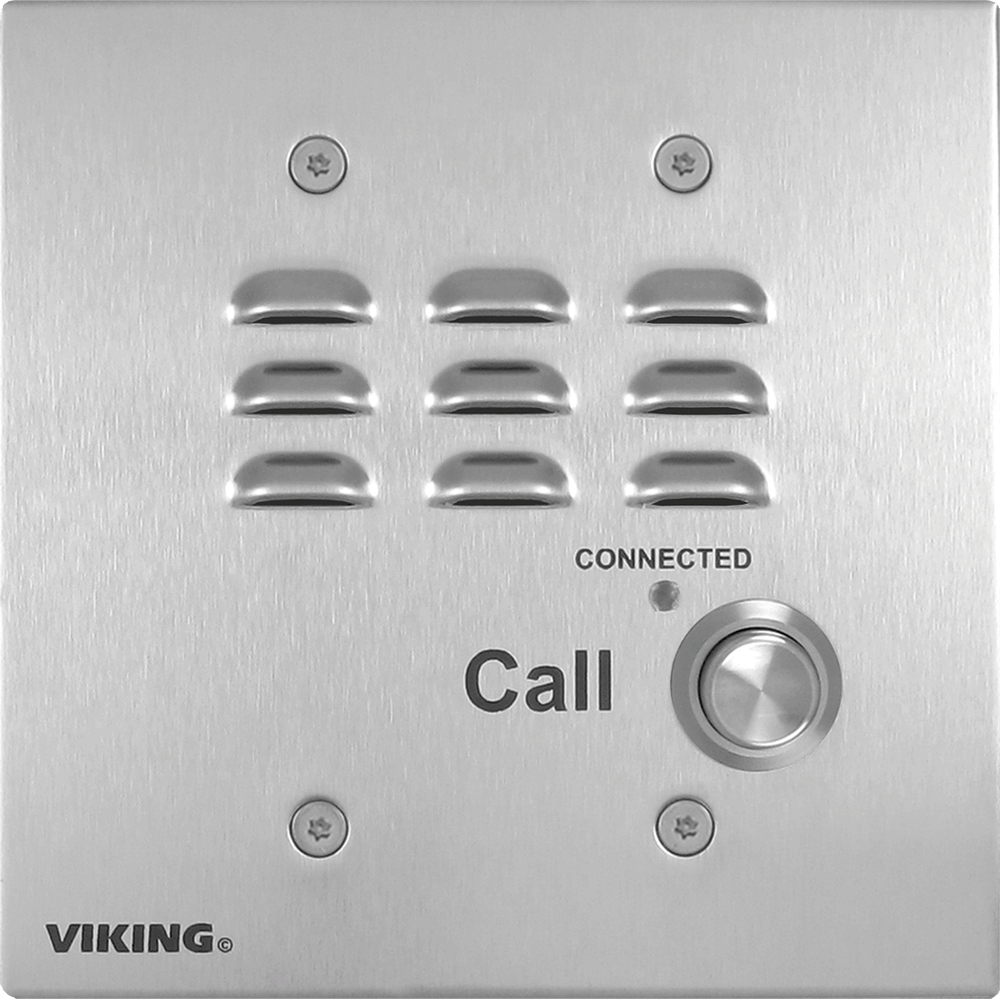

Viking E-32-EWP Stainless Steel Handsfree Speaker Phone with Dialer

The E-32-EWP handsfree speaker phone is designed to provide quick and reliable handsfree communication and can be connected directly to a CO line or analog PABX / KSU station.

E-32-EWP Fetaures:

• Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
• Vandal Resistant Features:
  • 14 gauge louvered 316 brushed stainless steel faceplate with permanent laser etched graphics
  • Speaker / mic screen
  • Heavy duty metal “Call” button
  • T-10 Torx security mounting screws and drive bit
• Weather Resistant Features:
  • Marine grade 316 stainless steel faceplate, screws and push button switch
  • Switch internally sealed per IP67
  • Mylar speaker
  • Self draining mic mount
  • Faceplate, mic and speaker gaskets
• Telephone line powered
• Non-volatile memory, no batteries required
• Blue off-hook LED indicator
• Dials up to 5 emergency numbers
• Cycles through backup phone numbers on busy or ring-no-answer
• Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
• Selectable auto-answer feature for monitoring
• Extended temperature range (-15°F to 130°F)
• Flush mounts in a standard double gang box (not included)

• Viking E-32-EWP APPLICATIONS:

  • ATM machines
  • Convention centers
  • Non-ADA Hot-Line Phone for:
    • Elevators
    • Parking lots
    • Stadiums
    • Parking ramps
    • Residences
    • Businesses
  • Gate and Door Entry Phone for:
    • Building lobbies
    • Pedestrian gates
  • Silent holdup alarm dialer when used with a Viking PB-1 Panic Button Kit

• Viking E-32-EWP SPECIFICATIONS:

  Power	Telephone line powered (24VDC / 20mA minimum)
  Dimensions	5″ x 5″ x 2.25″ (127mm x 127mm x 57mm)
  Shipping Weight	2.12 lbs (0.96 kg)
  Operating Temperature	-15°F to 130°F (-26°C to 54°C)
  Humidity	5% to 95% non-condensing
  Material	14 gauge 316 stainless steel with #4 brushed finish
  Minimum Ring Voltage	25VRMS
  REN 0.5A
  Connections	(2) gel-filled butt connectors

Viking E-32-EWP CERTIFICATIONS:

• FCC Part 68
• FCC Part 15
