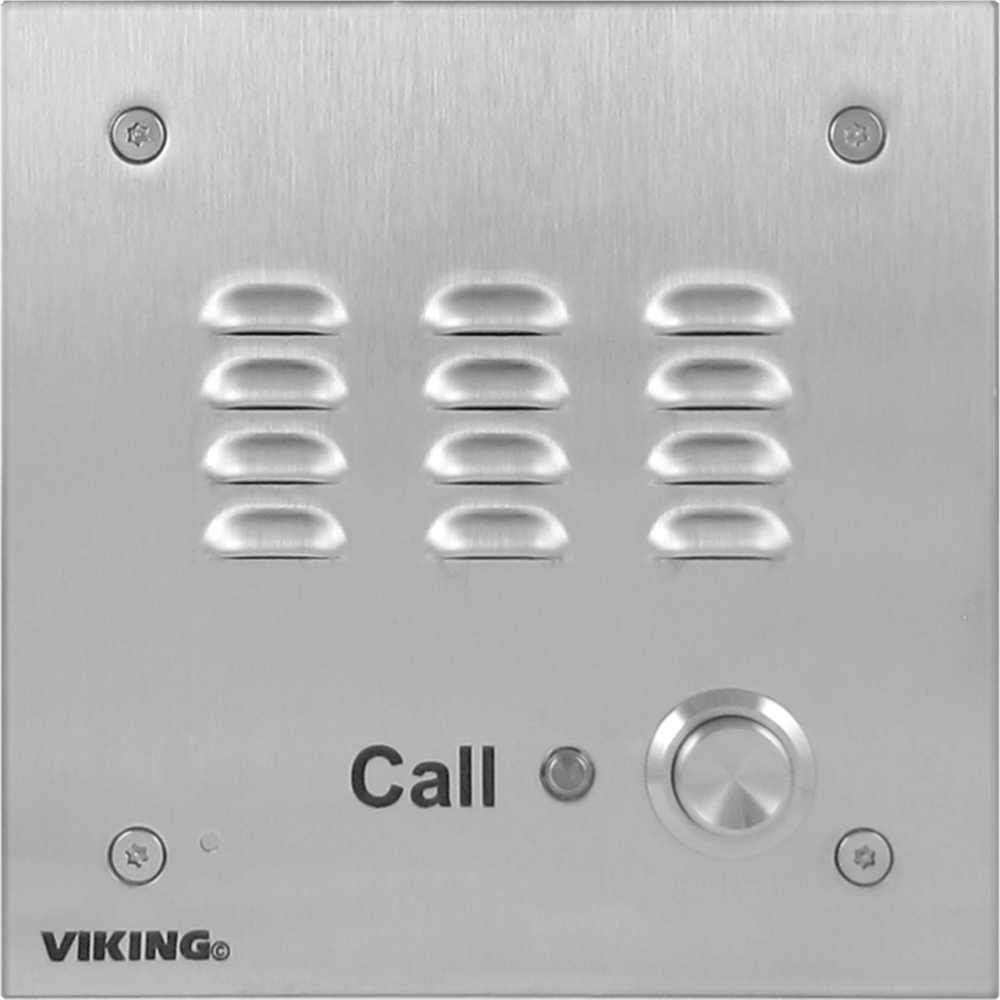

Viking E-30 Flush Mount Handsfree Door Entry Phone with Built-In Auto Dialer

Viking E-30 Flush Mount Handsfree Door Entry Phone with Built-In Auto Dialer


SKU: E-30

The Viking E-30 entry speaker phone is designed to provide quick and reliable handsfree communication and can be connected directly to a CO line or analog PABX / KSU station.

 The Viking E-30 features non-volatile memory, auto dialer and intelligent call progress detection for automatic hang-up when a call is completed. Program up to 5 different auto dial numbers for ring-no-answer or busy. The Viking E-30 can also be configured to cycle through these numbers until answered.

 Use model E-30-EWP for outdoor installations where the unit is exposed to precipitation or condensation.

View full details

Note: Operating Temperature: -26°C to 54°C (-15°F to 130°F). Humidity - E-30: 5% to 95% non-condensing

Viking E-30 Features:

    • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
    • Vandal Resistant Features:
      • 14 gauge louvered 316 brushed stainless steel faceplate with permanent laser etched graphics
      • Speaker / mic screen
      • Heavy duty metal “Call” button
      • T-10 Torx security mounting screws and drive bit
    • Weather Resistant Features:
      • Marine grade 316 stainless steel faceplate, screws and push button switch
      • Switch internally sealed per IP67
      • Mylar speaker
      • Self draining mic mount
      • Faceplate, mic and speaker gaskets
    • Telephone line powered
    • Non-volatile memory, no batteries required
    • Blue off-hook LED indicator
    • Dials up to 5 emergency numbers
    • Cycles through backup phone numbers on busy or ring-no-answer
    • Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
    • Selectable auto-answer feature for monitoring
    • Extended temperature range (-15°F to 130°F)
    • Flush mounts using the included rough-in box or surface mount using a Viking VE-5×5 Surface Mount Box

Viking E-30 Applications:

  • ATM machines
  • Convention centers
  • Non-ADA Hot-Line Phone for:
    • Elevators
    • Parking lots
    • Stadiums
    • Parking ramps
    • Residences
    • Businesses
  • Gate and Door Entry Phone for:
    • Building lobbies
    • Pedestrian gates
  • Silent holdup alarm dialer when used with a Viking PB-1 Panic Button Kit
  • Viking E-30 Specifications:

    • Power: Telephone line powered (24VDC / 20mA minimum)
    • Overall Dimensions: 5″ x 5″ x 2.25″ (127mm x 127mm x 57mm)
    • Rough-In Box: 4″ x 4″ x 2.12″ (102mm x 102mm x 54mm)
    • Shipping Weight: 2.2 lbs (1 kg)
    • Operating Temperature: -15°F to 130°F (-26°C to 54°C)
    • Humidity: 5% to 95% non-condensing
    • Material: 14 gauge 316 stainless steel with #4 brushed finish
    • Minimum Ring Voltage: 25VRMS
    • REN 0.5A
    • Connections: (2) gel-filled butt connectors

    Viking E-30 Certifications:

    • FCC Part 68
