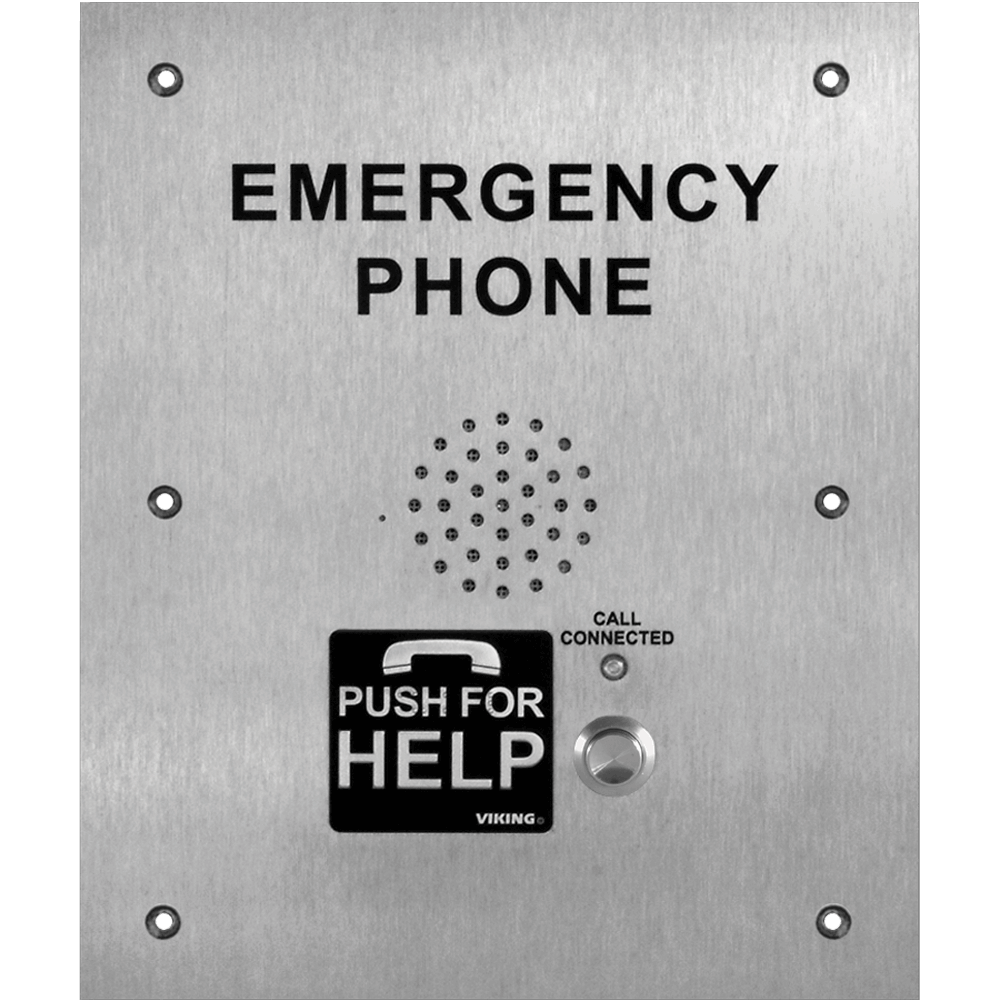

Viking E-1600A-TP-EWP ADA Compliant Emergency Phone for Talk-A-Phone applications

Viking E-1600A-TP-EWP ADA Compliant Emergency Phone for Talk-A-Phone applications

$635.62

SKU: E-1600A-TP-EWP

Manufacturer Warranty
2 Year Limited Warranty

View full details

Viking E-1600A-TP-EWP Direct Physical Replacement for Talk-A-Phone Model ETP-400(V) Panel Phone. For use with Talk-A-Phone tower, pedestal, surface, wall and flush mount enclosures. Code Blue towers require redrilling and tapping.

Viking E-1600A-TP-EWP Features:

    • Meets ADA requirements for Emergency Phones:
      • Automatically lights the “Call Connected” LED
      • Transmits a unique location ID code or voice announcement
      • Grade 2 Braille label for the visually impaired
    • Non-volatile digital voice announcer with 16 seconds of voice memory
    • Advanced call progress detection
    • Handsfree operation
    • Phone line powered emergency phone (BLK-4-EWP requires power)
    • Provides contact or switched 12VDC for controlling a strobe light
    • Non-volatile memory, no batteries required
    • Programmable to dial up to 5 emergency phone numbers
    • Cycles through backup phone numbers on busy or ring-no-answer
    • Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
    • Programmable to auto-answer on incoming calls
    • Remotely programmable
    • Central Station Monitoring capability (dials 2 numbers)
    • Separate central station voice speed dial number
    • High visibility, vandal and weather resistant
    • Extended temperature range: -15°F to 130°F (-26°C to 54°C)
    • Enhanced Weather Protection (EWP)
    • Manufacturer Warranty: 2 Year Limited Warranty
    • Viking E-1600A-TP-EWP Applications:

      • Replacing damaged or malfunctioning Talk-A-Phone panel phones
      • Campus Security Sites
      • Area of Refuge sites
      • Parking Ramps / Lots
      • Automated Tellers (ATM)
      • Entryways
      • Roadside Emergency Sites
      • Stairwells in Public Buildings
      • Viking E-1600A-TP-EWP Specifications:

        • Phone Power: Telephone line powered (24VDC / 20mA minimum)
        • Relay Control Module Power: 120VAC / 12VDC 500mA, UL listed adapter provided
        • Dimensions: 9.5” x 11.75” x 2” (241mm x 299mm x 51mm)
        • Shipping Weight: 6.4 lbs (2.9 kg)
        • Operating Temperature: -15°F to 130°F (-26°C to 54°C)
        • Humidity: Up to 100%
        • Material: 12 gauge 316 stainless steel with #4 brushed finish
        • SPDT Relay Contact Rating: 1A @ 30VDC / 0.5A @ 125VAC, 250VAC maximum
        • Mounting: Flush mount to Talk-A-Phone towers, wall mounts, boxes and pedestals
        • Connections: (14) gel-filled butt connectors

        Viking E-1600A-TP-EWP Certifications:

        • EWP
        • IP66
        • FCC Part 15
        • ADA
