Viking Electronics

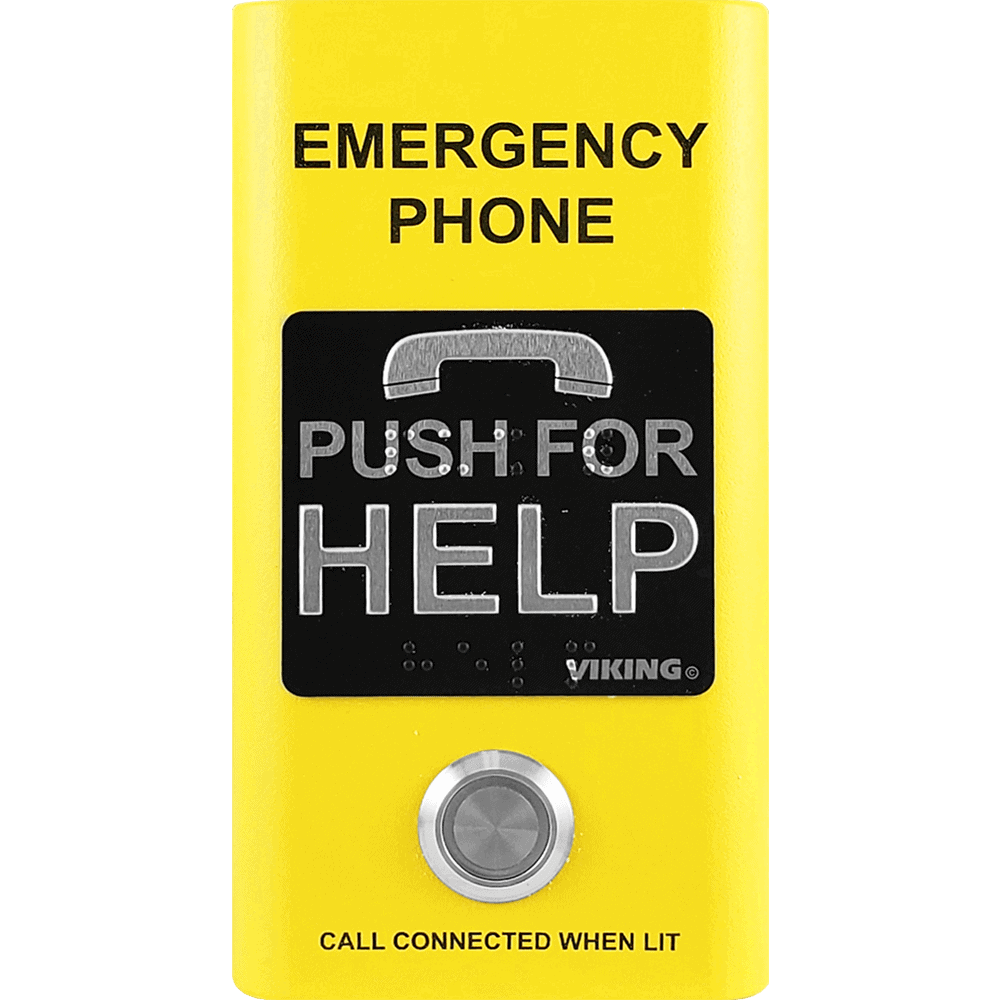

Viking E-1600-YL-IPEWP ADA Compliant Compact Yellow VoIP Emergency Phone with Built-In Dialer and Voice Announcer

Viking E-1600-YL-IPEWP ADA Compliant Compact Yellow VoIP Emergency Phone with Built-In Dialer and Voice Announcer

$613.07

SKU: E-1600-YL-IPEWP

Usually ships in 2-3 weeks

The Viking E-1600-YL-IPEWP is an ADA Compliant VoIP Emergency Phone. This compact, low-profile emergency phone is designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The phone meets ADA requirements for elevator/emergency telephones, and can be programmed from any touch tone phone or PC on the same LAN or remotely using a static IP address. The phone can dial up to 5 programmable emergency numbers.

View full details

Viking E-1600-YL-IPEWP Features:

    • Automatic polling and programming software included
    • 2 Amp relay contacts for door/gate or SL-2 strobe light control
    • SIP compliant
    • Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
    • PoE powered (class 1, <4 Watts)
    • Automatic Noise Canceling (ANC) for clear audio, even in noisy environments
    • Meets ADA requirements for Emergency Phones:
      • Automatically lights the “Call Connected” LED
      • Transmits a unique location I.D. code or voice announcement
      • Grade 2 Braille label for the visually impaired
    • Non-volatile digital voice announcer with 28 seconds of voice memory
    • Handsfree operation
    • Dials up to 5 emergency numbers
    • Cycles through backup phone numbers on busy or no-answer
    • Hangs up on busy signal, time-out or touch tone command
    • Extended temperature range of -40°F to 140°F
    • VoIP eliminates the need for “Push to Talk” mode
    • Network downloadable firmware
    • Diagnostics for testing microphone, speaker, and relay

Viking E-1600-YL-IPEWP Applications:

  • Lobbies
  • Stadiums
  • Elevators
  • Entryways
  • ATM machines
  • Medical centers
  • Convention centers
  • Public access areas
  • Parking ramps / lots
  • Emergency pool phones
  • Area of refuge locations
  • Campus emergency stations
  • Silent hold-up alarm dialer when used with a Viking PB-1 Panic Button Kit

VoIP SIP System Compatibility List:

  • 3COM VCX
  • 3CX
  • Aastra
  • Asterisk
  • Atcom
  • Avaya IP Office
  • BlueBox
  • Brekeke
  • Cisco Unified Communications Manager (CUCM)
  • Freeswitch
  • Grandstream
  • iptel.org
  • Kamailio
  • MetaSwitch
  • OfficeSIP
  • OpenSIPS
  • Panasonic
  • Samsung Communications Manager (SCM)
  • ShoreTel
  • Siemens Communications Server (SCS)
  • SIP Express Router (SER)
  • sip.antisip.com
  • Snom PBX
  • Sonus
  • Switchvox
  • Teksip
  • Toshiba
  • VoIP.ms
  • Vonage
  • Viking E-1600-YL-IPEWP Specifications:

    • Power: PoE class 1 (<4 Watts)
    • Maximum Sound Pressure: 95 dB SPL @ 1m
    • Dimensions: 5.75″ x 3.08″ x 1.05″ (146 mm x 78 mm x 27 mm)
    • Operating Temperature: -40°F to 140°F (-40° C to 60° C)
    • Humidity: 5% to 95% non-condensing
    • Material: 0.060″ thick (16 gauge) 304 stainless steel with textured yellow powder paint
    • Mounting: Surface mount to walls, posts, single gang electrical boxes, or recess mount in elevator phone boxes
    • Audio Codecs: G711u, G711a, G722
    • Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
    • Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A
    • Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors

    Certifications

    • CE
    • Canada ICES
    • FCC Part 15
    • ADA
    • SIP
