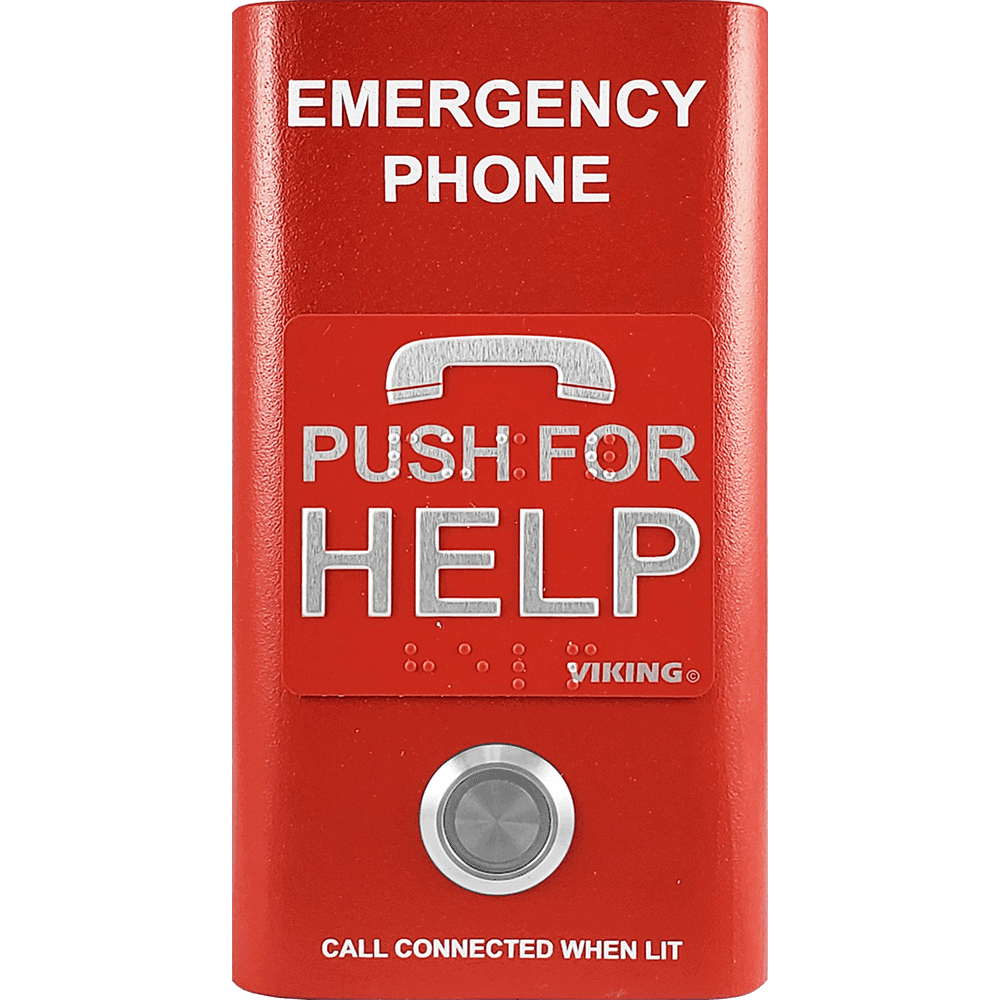

Viking E-1600-RD-IP ADA Compliant Compact Red VoIP Emergency Phone with Built-In Dialer and Voice Announcer

Viking E-1600-RD-IP ADA Compliant Compact Red VoIP Emergency Phone with Built-In Dialer and Voice Announcer

$476.99

SKU: E-1600-RD-IP

Usually ships in 4-6 weeks

The Viking E-1600-RD-IP is an ADA Compliant VoIP Emergency Phone. This compact, low-profile emergency phone is designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The phone meets ADA requirements for elevator/emergency telephones, and can be programmed from any touch tone phone or PC on the same LAN or remotely using a static IP address. The phone can dial up to 5 programmable emergency numbers.

View full details

Viking E-1600-RD-IP Features:

    • Automatic polling and programming software included
    • 2 Amp relay contacts for door/gate or SL-2 strobe light control
    • SIP compliant
    • Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
    • PoE powered (class 1, <4 Watts)
    • Automatic Noise Canceling (ANC) for clear audio, even in noisy environments
    • Meets ADA requirements for Emergency Phones:
      • Automatically lights the “Call Connected” LED
      • Transmits a unique location I.D. code or voice announcement
      • Grade 2 Braille label for the visually impaired
    • Non-volatile digital voice announcer with 28 seconds of voice memory
    • Handsfree operation
    • Dials up to 5 emergency numbers
    • Cycles through backup phone numbers on busy or no-answer
    • Hangs up on busy signal, time-out or touch tone command
    • Extended temperature range of -40°F to 140°F
    • VoIP eliminates the need for “Push to Talk” mode
    • Network downloadable firmware
    • Diagnostics for testing microphone, speaker, and relay

Viking E-1600-RD-IP Applications:

  • Lobbies
  • Stadiums
  • Elevators
  • Entryways
  • ATM machines
  • Medical centers
  • Convention centers
  • Public access areas
  • Parking ramps / lots
  • Emergency pool phones
  • Area of refuge locations
  • Campus emergency stations
  • Silent hold-up alarm dialer when used with a Viking PB-1 Panic Button Kit

VoIP SIP System Compatibility List:

      • On Premise
        • 3COM VCX
        • 3CX
        • Allworx
        • Aastra
        • Asterisk
        • Atcom
        • Avaya Aura Platform
        • Avaya IP Office Platform
        • BlueBox
        • Brekeke
        • Cisco Unified Communications Manager (CUCM)*
        • Cisco Unified Communications Manager Express (CUCME)
        • Elastix
        • epygi QX200
        • Freeswitch
        • Grandstream*
        • Interactive Intelligence
        • iPECS (Ericsson-LG)
        • Iwatsu ECS
        • Kamailio
        • Mitel 3300
        • NEC
        • OfficeSIP
        • OpenSIPS
        • Panasonic** (with SIP Extension Card)
        • PolyCom
        • Samsung Communications Manager (SCM)
        • ShoreTel
        • Siemens Communications Server (SCS)
        • SIP Express Router (SER)
        • Snom PBX
        • Sonus
        • Switchvox
        • Teksip
        • Toshiba
        • Vertical Wave*
        • Yealink T Series S IP Phones

Cloud Based Service Provider:

        • Callcentric
        • iptel.org
        • MetaSwitch
        • Ring Central
        • sip.antisip.com
        • Switchvox
        • unify
        • Vertical Wave
        • Voice Carrier
        • VoIP.MS
        • Wildix
        • ** Note: Relay operation commands are NOT compatible with Panasonic Phone Systems (Panasonic does not transmit DTMF between station ports)
List:

Viking E-1600-RD-IP Specifications:

  • Power: PoE class 1 (<4 Watts)
  • Maximum Sound Pressure: 95 dB SPL @ 1m
  • Dimensions: 5.75″ x 3.08″ x 1.05″ (146 mm x 78 mm x 27 mm)
  • Operating Temperature: -40°F to 140°F (-40° C to 60° C)
  • Humidity: 5% to 95% non-condensing
  • Material: 0.060″ thick (16 gauge) 304 stainless steel with textured red powder paint
  • Mounting: Surface mount to walls, posts, single gang electrical boxes, or recess mount in elevator phone boxes
  • Audio Codecs: G711u, G711a, G722
  • Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
  • Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A
  • Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
