Viking Electronics

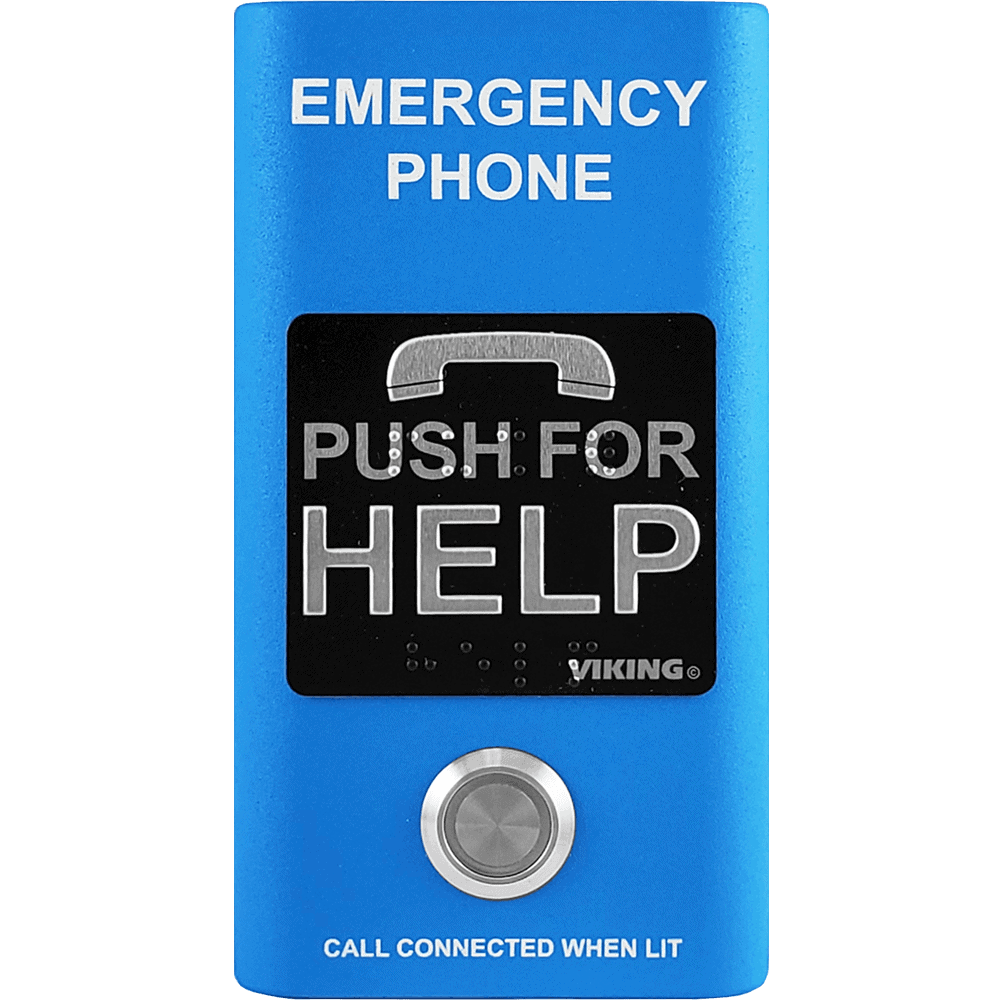

Viking E-1600-BL-IPEWP ADA Compliant Compact Blue VoIP Emergency Phone with Built-In Dialer and Voice Announcer

Viking E-1600-BL-IPEWP ADA Compliant Compact Blue VoIP Emergency Phone with Built-In Dialer and Voice Announcer

$610.26

SKU: E-1600-BL-IPEWP

Usually ships in 4 to 10 weeks

The Viking E-1600-BL-IPEWP is an ADA Compliant VoIP Emergency Phone. This compact, low-profile emergency phone is designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The phone meets ADA requirements for elevator/emergency telephones, and can be programmed from any touch tone phone or PC on the same LAN or remotely using a static IP address. The phone can dial up to 5 programmable emergency numbers.

The Viking E-1600-BL-IPEWP compact VoIP emergency phone can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Alternatively, a DTMF touch tone code may also be delivered. The stainless steel button features an built-in red LED that can be initiated manually or automatically to show “Call Connected”. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries. The unit is PoE powered (class 1, <4 Watts).

The Viking E-1600-BL-IPEWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products are designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming. For more information on EWP, see DOD 859.

View full details

Viking E-1600-BL-IPEWP Features:

    • Automatic polling and programming software included
    • 2 Amp relay contacts for door/gate or SL-2 strobe light control
    • SIP compliant
    • Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
    • PoE powered (class 1, <4 Watts)
    • Automatic Noise Canceling (ANC) for clear audio, even in noisy environments
    • Meets ADA requirements for Emergency Phones:
      • Automatically lights the “Call Connected” LED
      • Transmits a unique location I.D. code or voice announcement
      • Grade 2 Braille label for the visually impaired
    • Non-volatile digital voice announcer with 28 seconds of voice memory
    • Handsfree operation
    • Dials up to 5 emergency numbers
    • Cycles through backup phone numbers on busy or no-answer
    • Hangs up on busy signal, time-out or touch tone command
    • Extended temperature range of -40°F to 140°F
    • VoIP eliminates the need for “Push to Talk” mode
    • Network downloadable firmware
    • Diagnostics for testing microphone, speaker, and relay

Viking E-1600-BL-IPEWP Applications:

  • Lobbies
  • Stadiums
  • Elevators
  • Entryways
  • ATM machines
  • Medical centers
  • Convention centers
  • Public access areas
  • Parking ramps / lots
  • Emergency pool phones
  • Area of refuge locations
  • Campus emergency stations
  • Silent hold-up alarm dialer when used with a Viking PB-1 Panic Button Kit

VoIP SIP System Compatibility List:

  • 3COM VCX
  • 3CX
  • Aastra
  • Asterisk
  • Atcom
  • Avaya IP Office
  • BlueBox
  • Brekeke
  • Cisco Unified Communications Manager (CUCM)
  • Freeswitch
  • Grandstream
  • iptel.org
  • Kamailio
  • MetaSwitch
  • OfficeSIP
  • OpenSIPS
  • Panasonic
  • Samsung Communications Manager (SCM)
  • ShoreTel
  • Siemens Communications Server (SCS)
  • SIP Express Router (SER)
  • sip.antisip.com
  • Snom PBX
  • Sonus
  • Switchvox
  • Teksip
  • Toshiba
  • VoIP.ms
  • Vonage
  • Viking E-1600-BL-IPEWP Specifications:

    • Power: PoE class 1 (<4 Watts)
    • Maximum Sound Pressure: 95 dB SPL @ 1m
    • Dimensions: 5.75″ x 3.08″ x 1.05″ (146 mm x 78 mm x 27 mm)
    • Operating Temperature: -40°F to 140°F (-40° C to 60° C)
    • Humidity: 5% to 95% non-condensing
    • Material: 0.060″ thick (16 gauge) 304 stainless steel with textured blue powder paint
    • Mounting: Surface mount to walls, posts, single gang electrical boxes, or recess mount in elevator phone boxes
    • Audio Codecs: G711u, G711a, G722
    • Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
    • Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A
    • Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors

    Certifications

    • CE
    • Canada ICES
    • FCC Part 15
    • ADA
    • SIP
