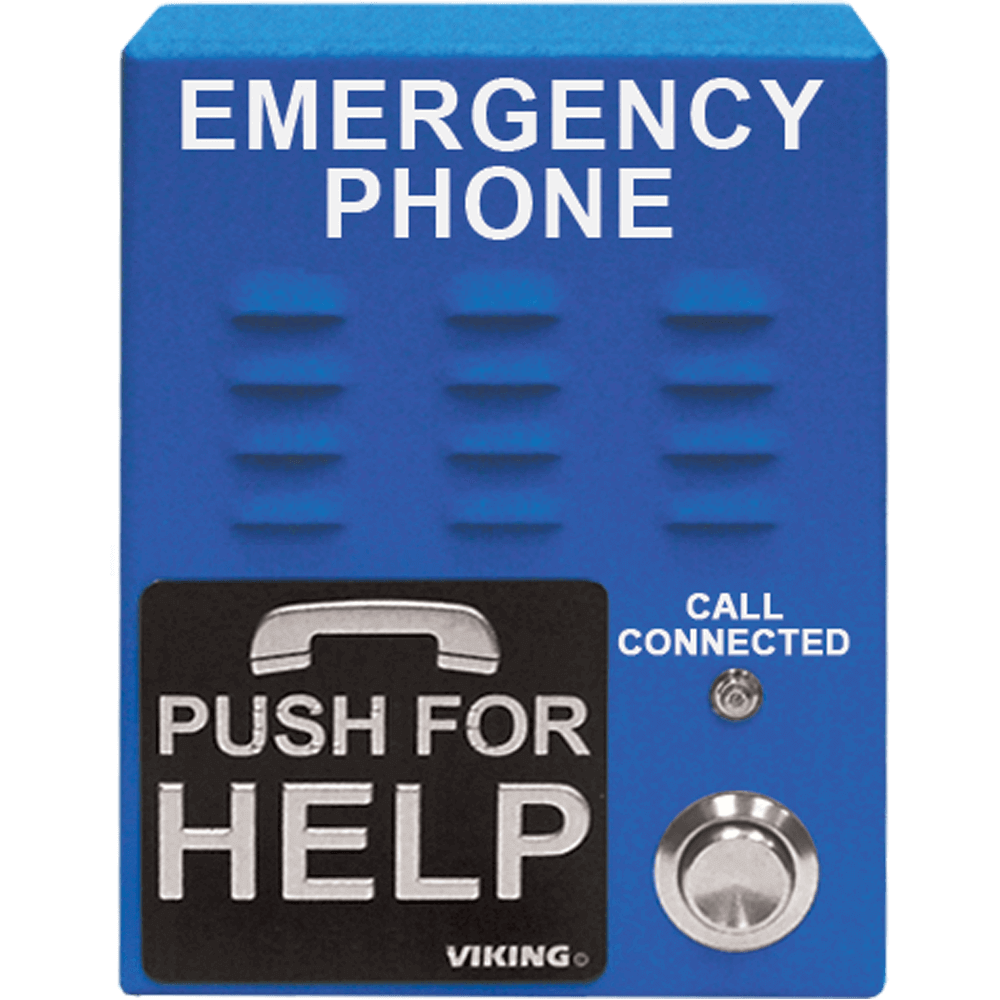

Viking E-1600-65A Handsfree Emergency Phone with Dialer/Announcer

Viking E-1600-65A Handsfree Emergency Phone with Dialer/Announcer

$289.56

SKU: E-1600-65A

The E-1600-65A ADA Compliant Blue Emergency Phone is designed to provide quick and reliable handsfree emergency communication for any standard analog telephone line or analog phone system station port. The E-1600-65A meets ADA requirements for elevator / emergency telephones, and can be programmed from any touch tone phone. The emergency phone can dial up to 5 programmable emergency numbers, as well as 2 central station numbers.

View full details

Viking E-1600-65A Handsfree Emergency Phone with Dialer/Announcer, Blue.

E-1600-65A Phone Features:
  • Meets ADA requirements for Emergency Phones:
    • Can automatically light the "Call Connected" LED for the hearing impaired
    • Transmits a unique location I.D. code or voice announcement
    • Grade 2 Braille label for the visually impaired
  • Non-volatile digital voice announcer with 16 seconds of voice memory
  • Advanced call progress detection
  • Handsfree operation
  • Phone line powered
  • Non-volatile memory (no batteries required)
  • Marine grade 316 stainless steel prevents corrosion on stainless models
  • Dials up to 5 emergency numbers
  • Cycles through backup emergency and non-emergency numbers on busy or no-answer
  • Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD# 859
  • Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
  • Programmable to auto-answer on incoming calls
  • Remotely programmable
  • Extended temperature range (-15°F to 130°F)
  • 9 different chassis or board only available
  • Central Station Monitoring capability (dials 2 numbers)
  • Optional PB-100 Polling System available (DOD# 232)
  • Optional BLK-3-EWP strobe light kit available (DOD# 653)

Viking E-1600-65A Applications:

  • Elevators
  • Parking ramps / lots
  • Emergency pool phones
  • ATM machines
  • Medical centers
  • Silent hold-up alarm dialer when used with a Viking PB-1 Panic Button Kit (DOD 233)
  • Area of refuge locations
  • Lobbies
  • Entryways
  • Campus emergency stations
  • Stadiums
  • Convention centers
  • Public access areas

Viking E-1600-65A Specifications:

Power: Telephone line powered (24VDC / 20mA minimum)

Dimensions: 5.25″ x 4.0″ x 2.0″ (133mm x 102mm x 51mm)

Operating Temperature: -15°F to 130°F (-26°C to 54°C)

Humidity: 5% to 95% non-condensing

Shipping Weight: 2.5 lbs (1.13 kg)

Material: 16 gauge steel with textured blue powder paint

Mounting: Surface mount to walls, posts, single gang boxes, or 4″ x 4″ electrical junction boxes recess mount in elevator phone boxes

Connections: (2) Gel-filled butt connectors
