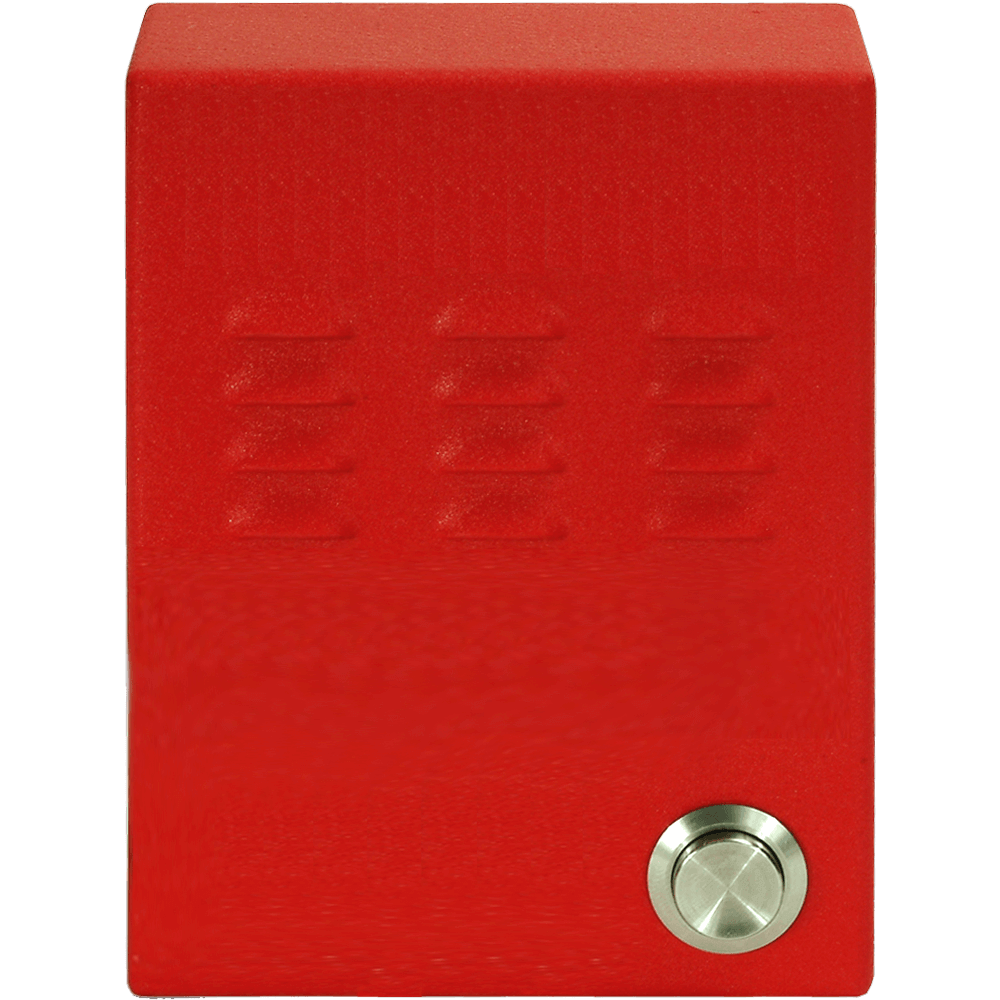

Viking E-1600-40A-EWP ADA Outdoor Emergency Phone

Viking E-1600-40A-EWP ADA Outdoor Emergency Phone

$422.34

SKU: E-1600-40A-EWP

Manufacturer Warranty
2 Year Limited Warranty

View full details

The Viking E-1600-40A-EWP Compliant emergency phone designed to provide quick and reliable handsfree communication over the public switched telephone network.

Viking E-1600-40A-EWP Features:
  • Meets ADA requirements for Emergency Phones
  • Can automatically light the "Call Connected" LED for the hearing impaired
  • Transmits a unique location I.D. code or voice announcement
  • Grade 2 Braille label for the visually impaired
  • Non-volatile digital voice announcer with 16 seconds of voice memory
  • Advanced call progress detection
  • Handsfree operation
  • Phone line powered
  • Non-volatile E2 memory (no batteries required)
  • Touch Tone or pulse dialing
  • Dials up to 5 emergency numbers
  • E-1600-20A and E-1600-52A dial up to 3 non-emergency "Info" numbers
  • Cycles through backup emergency and non-emergency numbers on busy or no-answer
  • Hangs up on CPC, silence, busy signal, dial tone, time-out or Touch Tone command
  • Programmable to auto-answer on incoming calls
  • Remotely programmable
  • Extended temperature range (-15°F to 130°F) Optional EWP (Enhanced Weather Protection) 6 different chassis or retrofit board available
  • Central Station Monitoring capability (dials 2 numbers)
  • Separate central station voice speed dial number
  • Optional PB-100 Polling System available
Enhanced Weather Protection Option:

Includes weather-sealed trim pots and DIP switches, a special rubber microphone boot and a mylar speaker with a rubber gasket acting as a primary shield against water penetration. If required, face plate gaskets are provided to further eliminate water infiltration. All connections are hand soldered to eliminate corrosion, and the connections at the push button switch, microphone, and "Call Connected" LED are also hand sealed using a special non-corrosive electronics grade flexible silicone sealant. The entire circuit board is "potted" in a flexible urethane encapsulating material, leaving the weather sealed field-adjustable trim pots and DIP switches accessible for on-site programming. The flexible urethane sealant allows the circuit board and its components to expand and contract, while maintaining weather resistance. To protect the tip and ring connections, special connectors filled with anti-corrosive sealing gel are included.
