Viking Electronics

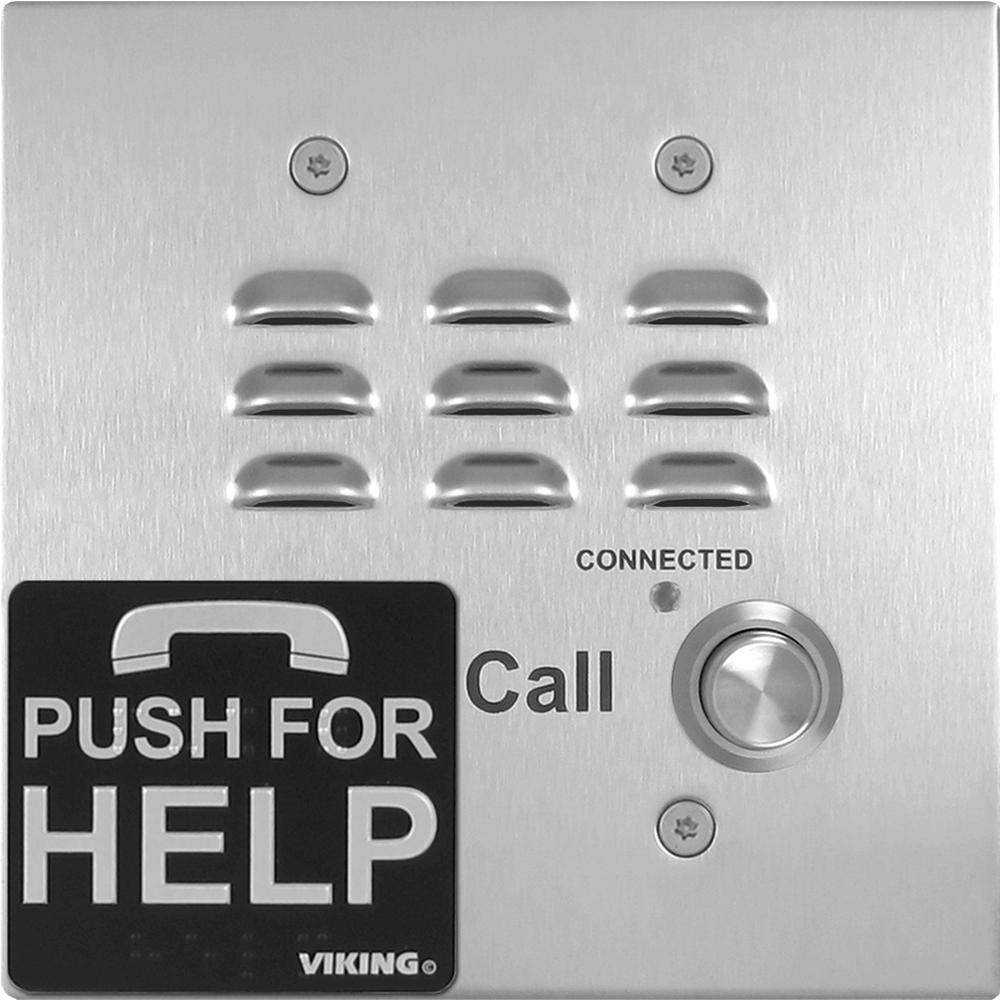

Viking E-1600-32-IP ADA Compliant VoIP Emergency Phones with Built-In Dialer and Digital Voice Announcer

Viking E-1600-32-IP ADA Compliant VoIP Emergency Phones with Built-In Dialer and Digital Voice Announcer

$435.05

SKU: E-1600-32-IP

The Viking E-1600-32-IP ADA and CE Compliant VoIP Emergency Call Box Phone is designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The Viking E-1600-32-IP emergency call box phone meets ADA requirements for elevator/emergency telephones, and can be programmed from any touch-tone phone, PC on the same LAN, or remotely using a static IP address. The emergency call box phone can dial up to 5 programmable emergency numbers.

View full details

VE-1600-32-IP Features:

  • Self diagnostic reports via email (testing com, mic, speaker & switch)
  • Automatic polling and programming software included
  • 2 Amp relay contacts for door/gate or SL-2 strobe light control
  • SIP compatible (see pg 2 for list of compatible IP-PBX phone systems)
  • PoE powered (class 1,
  • Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
  • Network downloadable firmware
  • Meets ADA requirements for Emergency Phones: Automatically lights the “Call Connected" LED
  • Transmits a unique location I.D. code or voice announcement-Grade 2 Braille label for the visually impaired
  • Non-volatile digital voice announcer with 28 seconds of voice memory
  • Handsfree operation
  • Marine grade 316 stainless steel prevents corrosion on the stainless steel models
  • Dials up to 5 emergency numbers
  • Cycles through backup phone numbers on busy or no-answer
  • Optional Enhanced Weather Protection (EWP), see E-1600-32-IPEWP
  • Hangs up on busy signal, time-out or touch tone command
  • Remotely programmable
  • Extended temperature range (-15°F to 130°F)
  • 11 different chassis or board only available

Viking E-1600-32-IP Specifications:

  • Power: PoE class 1 (<4 Watts)
  • Dimensions: See Installation and Specifications
  • Operating Temperature: -26° C to 54° C (-15°F to 130°F)
  • Humidity - Standard Products: 5% to 95% non-condensing
  • Humidity - EWP Products: Up to 100%
  • Audio Codecs: G711u, G711a, G722
  • Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors

VoIP SIP System Compatibility List:

      • On Premise
        • 3COM VCX
        • 3CX
        • Allworx
        • Aastra
        • Asterisk
        • Atcom
        • Avaya Aura Platform
        • Avaya IP Office Platform
        • BlueBox
        • Brekeke
        • Cisco Unified Communications Manager (CUCM)*
        • Cisco Unified Communications Manager Express (CUCME)
        • Elastix
        • epygi QX200
        • Freeswitch
        • Grandstream*
        • Interactive Intelligence
        • iPECS (Ericsson-LG)
        • Iwatsu ECS
        • Kamailio
        • Mitel 3300
        • NEC
        • OfficeSIP
        • OpenSIPS
        • Panasonic** (with SIP Extension Card)
        • PolyCom
        • Samsung Communications Manager (SCM)
        • ShoreTel
        • Siemens Communications Server (SCS)
        • SIP Express Router (SER)
        • Snom PBX
        • Sonus
        • Switchvox
        • Teksip
        • Toshiba
        • Vertical Wave*
        • Yealink T Series S IP Phones

Cloud Based Service Provider:

  • Callcentric
  • iptel.org
  • MetaSwitch
  • Ring Central
  • sip.antisip.com
  • Switchvox
  • unify
  • Vertical Wave
  • Voice Carrier
  • VoIP.MS
  • Wildix

  • ** Note: Relay operation commands are NOT compatible with Panasonic Phone Systems (Panasonic does not transmit DTMF between station ports)
