Viking Electronics

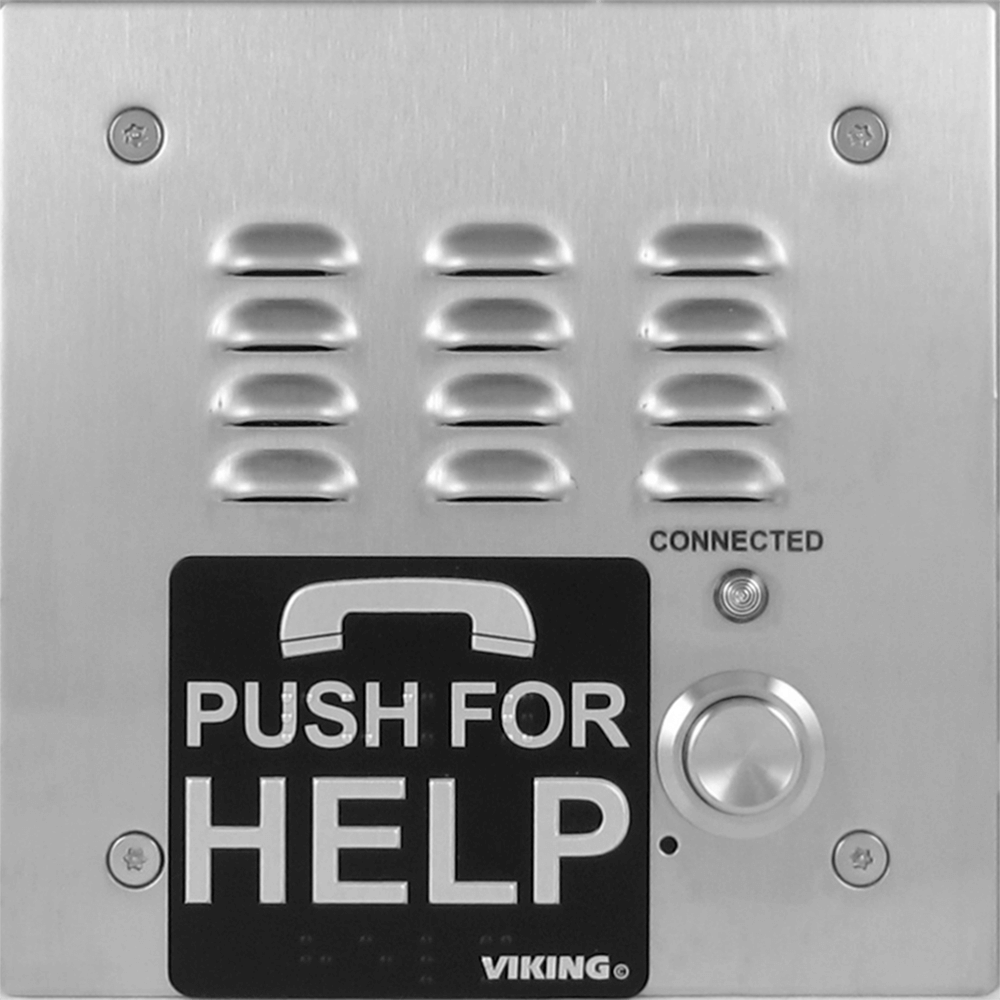

Viking E-1600-30A-EWP ADA Compliant Emergency Speakerphone

Viking E-1600-30A-EWP ADA Compliant Emergency Speakerphone

$449.17

SKU: E-1600-30A-EWP

Usually ships in 1-2 weeks

Operating Temperature: -26°C to 54°C (-15°F to 130°F)

Manufacturer Warranty
2 Year Limited Warranty

View full details

Operating Temperature: -26°C to 54°C (-15°F to 130°F)

Manufacturer Warranty
2 Year Limited Warranty



PRODUCT DETAILS

The E-1600-30A-EWP ADA Compliant Emergency Phone is designed to provide quick and reliable handsfree emergency communication for any standard analog telephone line or analog phone system station port. The E-1600-30A meets ADA requirements for elevator / emergency telephones, and can be programmed from any touch tone phone. It can dial up to 5 programmable emergency numbers, as well as 2 central station numbers.

The E-1600-30A can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Additionally, a DTMF touch tone code may also be delivered. A “Call Connected” LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory. The E-1600-30A is phone line powered, requiring no batteries or external power and is compatible with common Central Station Monitoring equipment.

E-1600-30A-EWP Features:

  • Automatic Noise Canceling (ANC) feature for clear audio in noisy environments
  • Meets the latest ASME A17.1 code when used with a Viking LV-1K Line Verification Panel, see DOD 246
  • Meets ADA requirements for Emergency Phones:
    • Automatically lights the “Call Connected” LED
    • Transmits a unique location ID code or voice announcement
    • Grade 2 Braille label for the visually impaired
  • Non-volatile digital voice announcer with 16 seconds of voice memory
  • Advanced call progress detection
  • Handsfree operation
  • Phone line powered
  • Non-volatile memory, no batteries required
  • Marine grade 316 stainless steel
  • Dials up to 5 emergency numbers
  • Cycles through backup phone numbers on busy or ring-no-answer
  • Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
  • Programmable to auto-answer on incoming calls
  • Remotely programmable
  • Extended temperature range (-15°F to 130°F)
  • Central Station Monitoring capability (dials 2 numbers)
  • Flush mounts using the included rough-in box or surface mount using a Viking VE-5×5 Surface Mount

APPLICATIONS

  • Elevators
  • Parking ramps / lots
  • Emergency pool phones
  • ATM machines
  • Medical centers
  • Silent hold-up alarm dialer when used with a Viking PB-1 Panic Button Kit (DOD 233)
  • Area of refuge locations
  • Lobbies
  • Entryways
  • Campus emergency stations
  • Stadiums
  • Convention centers
  • Public access areas

SPECIFICATIONS

Power Telephone line powered (24 VDC / 20mA minimum)
Overall Dimensions 5.0″ x 5.0″ x 2.25″ (127mm x 127 x 57mm)
Rough-In Box Dimensions 4.0″ x 4.0″ x 2.14″ (102mm x 102mm x 54mm)
Shipping Weight 2.12 lbs (1.0 kg)
Operating Temperature -15°F to 130°F (-26°C to 54°C)
Humidity 5% to 95% non-condensing
Front Panel Material 14 gauge marine grade 316 brushed stainless steel
Included Hardware (4) 6-32 X 3/4″ marine grade 316 stainless steel, flat head, T-10 Torx security screws
Connections (2) gel-filled butt connectors
