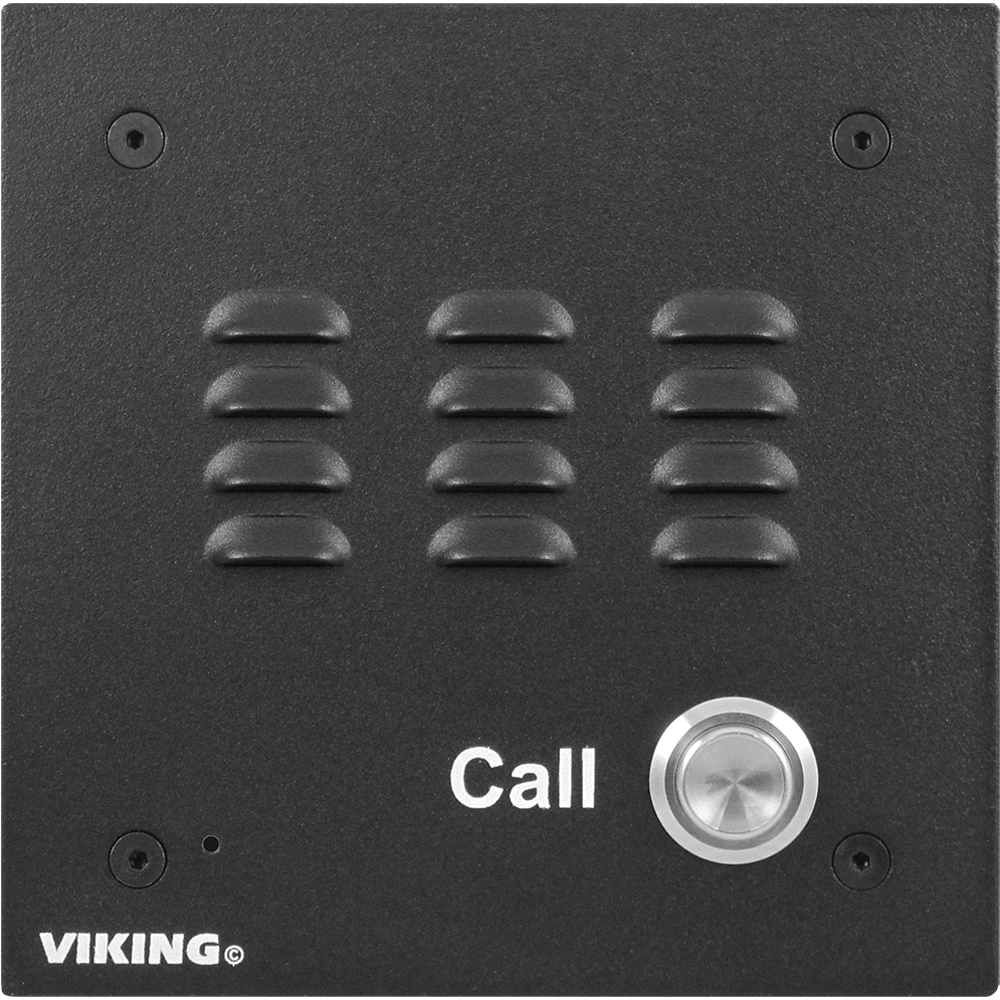

Viking E-10A-U Entry Phone with Black Aluminum Faceplate (Used)

Viking E-10A-U Entry Phone with Black Aluminum Faceplate (Used)


SKU: E-10A-U

Only two available - Missing inner packaging and faceplate has minor scratches

The Viking E-10A is a line powered entry door phone designed to two-way handsfree communication. Press the “Call” button to connect the Viking E-10A, the E-10A will disconnect when a CPC signal is detected, the programmed timeout has elapsed, a busy signal is detected or the call goes silent, making the unit automatically disconnect.

The Viking E-10A can be used with a Viking K-1900-5 or K-1900-30 dialer, or connected directly to a CO line or analog PABX / KSU station when programmed as a ringdown circuit. If a line or station is not available. A Viking DLE-200B ringdown circuit can be used. One to four E-10A speaker phones can share an existing entry phone line in a house or small business when used with a Viking C-200, C-250 or C-2000B Entry Phone Controller.

View full details

Viking E-10A-U Features:

  • Commercial, industrial and residential door security
  • Vandal Resistant
  • Flush Mount
  • Door or gate communication
  • Business delivery entrances
  • Use in conjunction with a Viking K-1900-5 Dialer on C.O. lines or analog PABX/KSU stations
  • Use on any programmed ringdown circuit of an analog PABX/KSU station
  • Alternate action call button to place or cancel a call
  • Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
  • Telephone line powered
  • Optional VE-5X5 Surface Mount Box
  • Adjustable microphone and speaker volume
  • Programmable maximum call length
  • Selectable auto-answer feature allows remote monitoring
  • Two way handsfree communication
  • Programmable VOX (mic/speaker) switching speed
  • For Enhanced Weather Protection version see E-10A-EWP
  • Missing inner packaging and faceplate has minor scratches
  • Viking E-10A Applications:

    • Door or gate communication, business delivery entrances
    • Provide unique front and back door chimes and paging when used with a Viking C-2000B and a Viking SLP-1 or SLP-4
    • Residential, commercial, and industrial door security
    • Use with a Viking K-1900-5 or K-1900-30 for automatic speed dialing on telephone lines or analog PABX / KSU station ports
    • Use on any analog PABX station port with programmable ringdown capability
    • Viking E-10A-U Specifications:

      • Power: Telephone line powered (18VDC / 20mA minimum)
      • Overall Dimensions: 5″ x 5″ x 2.25″ (127mm x 127mm x 57.2mm)
      • Rough-In Box Dimensions: 4″ x 4″ x 2.15″ (102mm x 102mm x 55mm)
      • Operating Temperature: -30°F to 150°F (-34°C to 65°C)
      • Humidity: 5% to 95% non-condensing
      • Maximum Speaker Volume: 70dB SPL @ 1m
      • Ring Voltage: 25VRMS minimum
      • Minimum CPC Disconnect Time: 300ms
      • REN: 0.8A
      • Connections: (2) Gel-filled butt connectors

      Viking E-10A-U Certifications:

      • FCC Part 68
